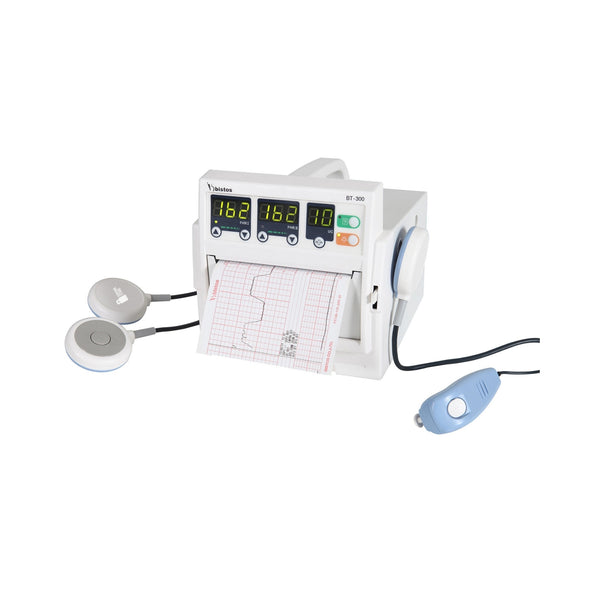

BT-300 Fetal Monitor

BT-300 Fetal Monitor is a compact and lightweight device designed to provide accurate and reliable fetal monitoring during pregnancy. It offers a range of features that make it an ideal choice for antepartum use, whether in clinics or hospitals. With its high-sensitivity 1 MHz probe, the BT-300 is capable of detecting fetal heart rate (FHR) and uterine contractions (UC), and even allows for simultaneous external twin FHR monitoring using dual pulsed Doppler technology.

Key Features:

1. High-Sensitivity 1 MHz Probe

• Superior Detection: The high-sensitivity 1 MHz probe ensures accurate and reliable fetal heart rate detection, even in challenging circumstances, making it ideal for early detection and continuous monitoring.

2. Dual Pulsed Doppler Technology

• Simultaneous Twin Monitoring: The dual pulsed Doppler allows for simultaneous external twin fetal heart rate (FHR) monitoring, enabling healthcare professionals to monitor two fetuses at once—an invaluable feature in multiple pregnancies.

3. Ergonomic Event Marker

• Easy Event Tracking: The ergonomic event marker simplifies the process of marking significant events during fetal monitoring, allowing medical staff to record key moments quickly.

4. Compact and Portable

• Waterproof and Lightweight: The BT-300 is designed to be compact, lightweight, and waterproof, making it easy to transport and use in various clinical settings, ensuring portability without sacrificing functionality.

5. Simultaneous Monitoring of FHR and UC

• Multiple Parameters: This device can simultaneously monitor fetal heart rate (FHR) and uterine contractions (UC), providing a complete picture of fetal well-being during pregnancy.

6. Advanced Display and Print Functions

• High-Quality Display: The BT-300 features a 7-segment LED display that provides clear readings, along with a thermal array printer for printing out FM (Fetal Movement) graphs, FHR data, and UC readings.
• Zoom-in and Mark Functions: The zoom-in function allows for detailed examination of fetal movement graphs, while the mark function helps highlight key moments during the monitoring session.

7. Alarm and Safety Features

• Alarm System: The BT-300 comes with an alarm system that sounds for upper/lower value breaches, helping to alert healthcare professionals if fetal heart rate or uterine contractions fall outside safe parameters.

8. Power Options

• AC Power & Rechargeable Battery: The BT-300 operates with AC power (100-240V) and has an internal rechargeable battery for continuous use, providing flexibility in various environments.

Specifications:

• FHR (Fetal Heart Rate) Range: 30-240 bpm
• FHR Accuracy: ±2% of range
• Fetal Movement (FM) Measurement Range: 0-99 units
• UC (Uterine Contraction) Measurement Range: 0-99 units
• Ultrasound Frequency: 1 MHz
• Doppler Intensity: ≤ 10mW/cm²
• Print Speed: 1, 2, 3 cm/min, high speed
• Display: 7-segment LED
• Alarm: Upper/Lower Value Alarm
• Data Output: DC 16V, 2.8A
• Dimensions: 191 mm (H) x 187 mm (L) x 201 mm (D)
• Weight: Lightweight and portable
• Power Supply: Input: AC 100-240V, 50/60Hz, 80VA; Output: DC 16V, 2.8A

Standard Accessories:

• Ultrasound Doppler Probe: 2 units (or 1 unit, single probe)
• Power Adaptor & Cord
• Probe Belt
• Print Paper: 2 sheets
• Ultrasound Gel: 1 unit
• Operation Manual
• Optional Accessories:
  • AST (Acoustic Stimulator)
  • UC Probe
  • Bluetooth Antenna
  • Cart

Optional Features:

• PC Interface (BCM-350): Allows for remote control of up to 8 monitors from a central PC.
• Multi-Language Support: The device supports multiple languages for global use.
• Wireless Connectivity (Bluetooth): Wireless connection for improved convenience and flexibility.

Why Choose the BT-300 Fetal Monitor?

• Twin Pregnancy Monitoring: Dual pulsed Doppler technology allows for accurate and simultaneous monitoring of twin fetal heart rates (FHR), a must-have feature for healthcare providers dealing with multiple pregnancies.
• Portable and Compact: With its lightweight and waterproof design, the BT-300 is highly portable, ensuring it can be used across a range of healthcare environments.
• Comprehensive Monitoring: This monitor tracks FHR, FM, and UC, offering a complete overview of fetal health, critical for antepartum care.
• User-Friendly: The ergonomic design of the event marker and intuitive alarm system ensure that healthcare professionals can respond quickly to any changes in fetal or maternal condition.
• Versatile and Flexible Power Options: With both AC power and internal rechargeable battery, the device offers flexibility in mobile and stationary environments.
