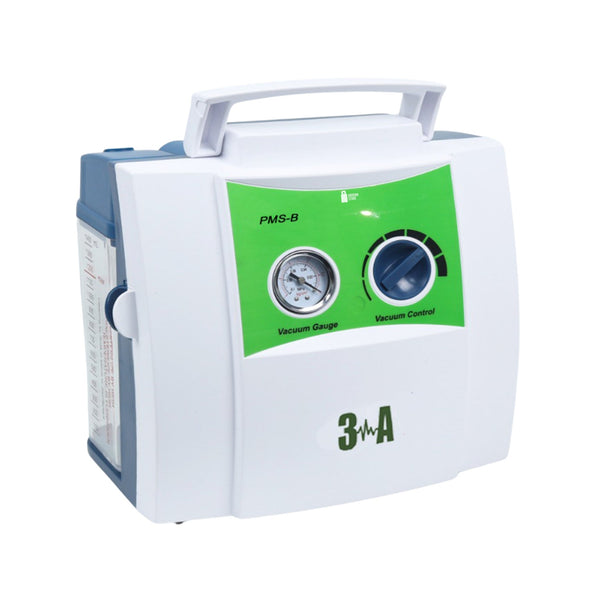

25L Rechargeable Suction Machine PMS-B

An AC/DC portable medical suction machine is a device used in medical settings to remove fluids or secretions from a patient's airway, usually in emergency situations. The term "AC/DC" refers to the device's ability to operate on both alternating current (AC) and direct current (DC) power sources, which makes it portable and flexible for use in a variety of settings.

Features:

• Rechargeable DC12V
• Ambulance car useDC 12V
• Fast recharge in 90 minutes, Continuous run 180 minutes (3 hours)
• Superior Lithium batteries
• Doubleanti-overflow protection system
• Direct Plug-in Bottle System, only one push to take out bottle
• 1400 ml capacity suction bottle
• Innovative filter technology prevents penetration of microorganisms and secretion into the device
• Only one inlet for suction hose, avoid misleading of air inlet and outlet
• Easy clean & sterilize & user-friendly operations

Accessories:

• 3 hours Lithium battery set
•  Ambulance car lighter power cord
• Main power adapter

Functions:

•  Air Flow Vacuum: a25LJmin
• Max. Vacuum: 0.07MPa
• Vacuum Bottle Capacity: 1400ml
•  Volts: DC 12V
• Watts: 55W
•  Noise: ≤50 dB (A)
•  Alarm: No
• Indicator: No
• Battery: YES

Specification

Pump Driving System:
- Max. Air Flow 25L/min
- Max. Vacuum Pressure 0.07MPa
- Work Mode continuously Run

Bottle System:
- Max. Jar capacity1400ml
- Overflow Protection Double Safety Protection
- Innovative Filter WaterproofReusable
- Inlet Cover One only, and no need outlet

Electrical System:
- Pump Power Consumption DC 12V . 55W
- Adapter Power AC220V-240V Input, DC 12V Output
- Lithium Batteries (If new) 1 set, DC 12V Full charge time about 1.5 hour Support use time 3 hours
- Ambulance Car Adapter DC 12V
- Auto Power off Every2 hour
- Power Fuse 5.0 A -ϕ5x2Omm
- Noise Level ≤50dB (A)

Operate System:
- Vacuum Gauge Range 0.00MPa~ 0.1MPa (Opsi ~14psi)
- Vacuum Control Range 0.02MPa ~ 0.07MPa
- Suction Hose Hang Groove One, at the left
- Wall-mounted Hang Tip Two, at the back
- Hidden Rotatable Handle Yes, at the top

 Safety System:
- Floating method Firstlevel stop overflow
- Filter method Second level stop overflow
- Overheated Protection: YES
- Battery full charge Full charge will auto isolate with AC power

Packaging Details:
- Machine Body Size 283x195x273mm
- Import Carton Size 415x360x300mmfor 2 units
- Net Weight per Unit 3.5kg
- Import Gross Weight per Carton 9.7kg
