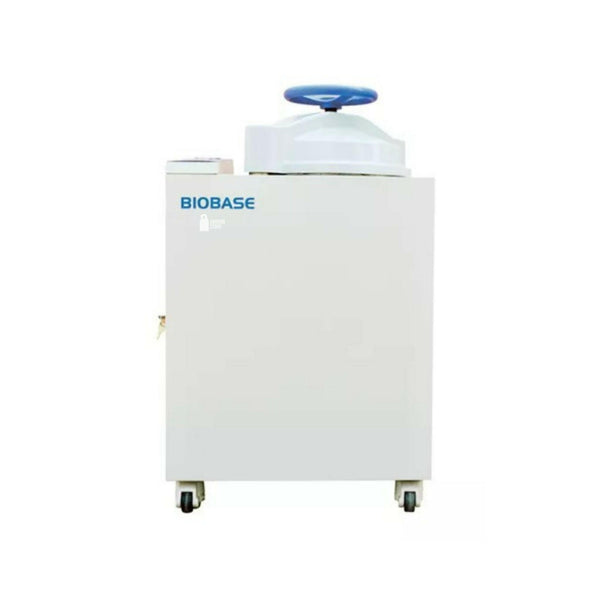

Biobase - Vertical Autoclave 50L (BKQ-B50II)

Biobase 50L Vertical Autoclave is a high-capacity, space-efficient sterilization solution, designed for a wide range of applications in medical, laboratory, and research environments. With a 50-liter capacity and an advanced set of sterilization programs, this autoclave offers consistent and thorough sterilization for various materials such as dressings, tools, rubber, culture mediums, liquid, and waste. Featuring a reliable user interface and a host of safety features, it ensures safe and efficient sterilization every time.

Application Range:

This 50L Vertical Autoclave offers 6 fixed sterilization programs and 2 customizable DIY programs tailored to different sterilization needs, including:

• Dressings and medical instruments
• Rubber materials and laboratory equipment
• Culture mediums and liquid sterilization
• Waste sterilization

Key Features of the Biobase 50L Vertical Autoclave:

• Comprehensive Sterilization Programs: Equipped with pre-set programs for various sterilization objects, including dressings, equipment, culture mediums, waste, and more. The customizable DIY programs provide flexibility for specific needs.

• User-Friendly LED Display: The autoclave features a clear LED screen that shows all steps of the sterilization process, including error codes for troubleshooting.

• Efficient Sterilization Cycle: Automatic cycles include filling water, dynamic pulse exhaust, heating, sterilizing, and draining, all completed without user intervention. The system ensures a comprehensive sterilization process with optimal steam saturability.

• Safety First Features:

  • Overpressure Safety Valve: Automatically releases pressure to ensure safe operation.
  • Over Temperature Protection: The system powers off automatically if the temperature exceeds safe limits.
  • Door Sensor: Prevents operation if the door is open, enhancing safety during use.
  • Anti-Dry Out Function: The system powers off if water levels are too low, with an error code displayed for user action.
  • Over Current and Electric Leakage Protection: Built-in air switch provides protection against over-voltage and electric leakage.
  • Thermal Insulation Door Cover: Keeps operators safe from heat exposure while enhancing the autoclave’s appearance.

• Quick Service & Maintenance: Equipped with an independent quick-service window for easy repair and maintenance access. The handwheel-type quick-open door and self-expandable sealing ring ensure safe, easy, and fast operation.

• High-Quality Water Inlet Filter: Ensures high water quality for optimal sterilization (excluding BKQ-B150/2001 models).

• Optional Printer for Data Recording: Easily document and print sterilization data for regulatory compliance and record-keeping.

• Exhaust Control for Liquid Prevention: The system automatically selects quick or low exhaust settings to prevent overflow of sterilization liquid.

• Energy-Efficient Design: With a dynamic pulse exhaust and certain temperature (98-102°C) exhaust method, the autoclave ensures complete elimination of cold air, enabling steam saturability and energy-efficient operation.

Technical Specifications:

• Capacity: 50L
• Sterilization Programs: Fixed programs for dressings, tools, culture medium, and more, with 2 customizable DIY programs.
• Water Inlet Filter: Yes (except BKQ-B150/2001)
• Optional Printer: Available for data recording
• Sterilization Method: Steam sterilization with dynamic pulse exhaust
• Display: LED screen showing all steps and error codes
• Inner Chamber: Stainless steel for water and steam circulation
• Safety Features: Overpressure valve, over-temperature cut-off, door sensor, anti-dry out function, electric leakage protection
• Drying Function: Available (except BKQ-8150/2001)
• Stainless Steel Tray: 1 included (except BKQ-8150/2001)

Why Choose the Biobase 50L Vertical Autoclave?

• Versatile and Efficient: Suitable for a wide range of sterilization needs in both medical and laboratory settings, from tools to culture mediums.
• Advanced Safety Features: Built-in safety measures ensure secure operation, preventing accidents or equipment damage.
• Reliable Performance: Designed for long-lasting, high-performance sterilization with minimal user involvement.
• Space-Efficient Design: Vertical structure maximizes space while offering large capacity, ideal for facilities with limited space.
