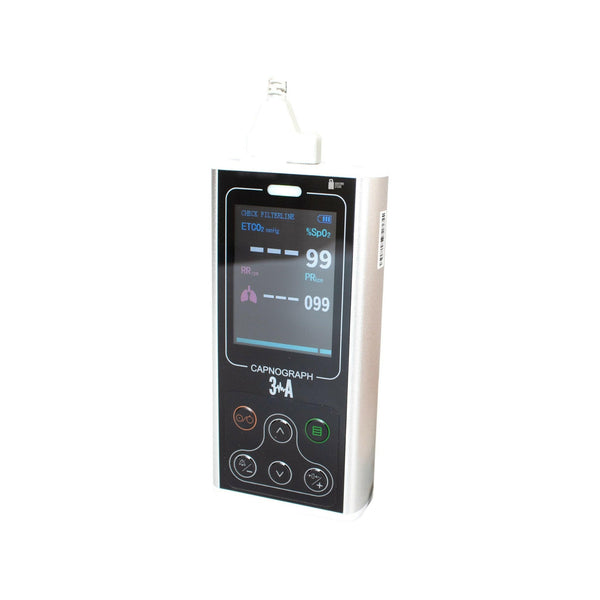

Capnograph Etco2 Monitor (Handheld)

Capnograph 3+A is an advanced medical device designed to monitor end-tidal carbon dioxide (EtCO₂), respiration rate, blood oxygen saturation (SpO₂), and pulse rate. This versatile instrument employs the sidestream method for detecting pulmonary ventilation functions and providing critical insights into the circulation, pulmonary blood flow, and alveolar ventilation. It is essential for evaluating patients in various clinical settings, from pre-hospital emergency transfers to ICUs, operating rooms, and neonatology departments. This device is suitable for adult, pediatric, and neonate patients.

Key Features:

1. End-Tidal CO₂ Measurement

• Measurement Range: 0–150 mmHg
• Accuracy:
  • 0–40 mmHg: ±2 mmHg
  • 41–70 mmHg: ±5% of readings
  • 71–100 mmHg: ±8% of readings
  • 101–150 mmHg: ±10% of readings

2. Respiratory Rate Measurement

• Measurement Range: 2 rpm to 120 rpm
• Resolution: 1 rpm
• Accuracy: ±1 rpm

3. SpO₂ (Blood Oxygen Saturation) Measurement

• Measurement Range: 30%–100%
• Accuracy:
  • 70%–100%: ±2%
  • 0–69%: Undefined

4. Pulse Rate Measurement

• Measurement Range: 25–250 bpm
• Accuracy: ±2 bpm or ±2%, whichever is greater

5. Waveform Display

• Displays respiratory waveforms to help visualize respiratory patterns.

6. Over-Limit Alarms

• Alerts for EtCO₂, respiration rate, SpO₂, and pulse rate when parameters exceed set limits.

7. Low Battery Alarm

• Provides notification when battery power is low, ensuring continuous monitoring.

Physical Characteristics:

• Dimensions: 159 x 72 x 31 mm
• Weight: 270 g
• Power Supply: DC 3.7V (Rechargeable lithium batteries)
• Input Power: <1.5 VA
• Working Temperature: 5°C to 40°C
• Relative Humidity: 30%–75% (no condensation)
• Atmospheric Pressure: 700 hPa–1060 hPa

Accessories:

• User Manual
• Blood Oxygen Probe
• Sampling Pipe

Safety Characteristics:

• Device Type: Internally powered equipment
• Degree of Protection Against Electric Shock: Type BF applied part
• Ingress Protection (IP): IPX1 (Protection against vertically dripping water)

Applications:

The Capnograph 3+A is highly effective in:

• Pre-Hospital Emergency Transfer
• Emergency Department
• ICU (Intensive Care Unit)
• Operating Room
• Neonatology
• Respiratory Department

This device is an essential tool for vital sign monitoring in critically ill patients, providing real-time information for clinicians to make informed decisions.
