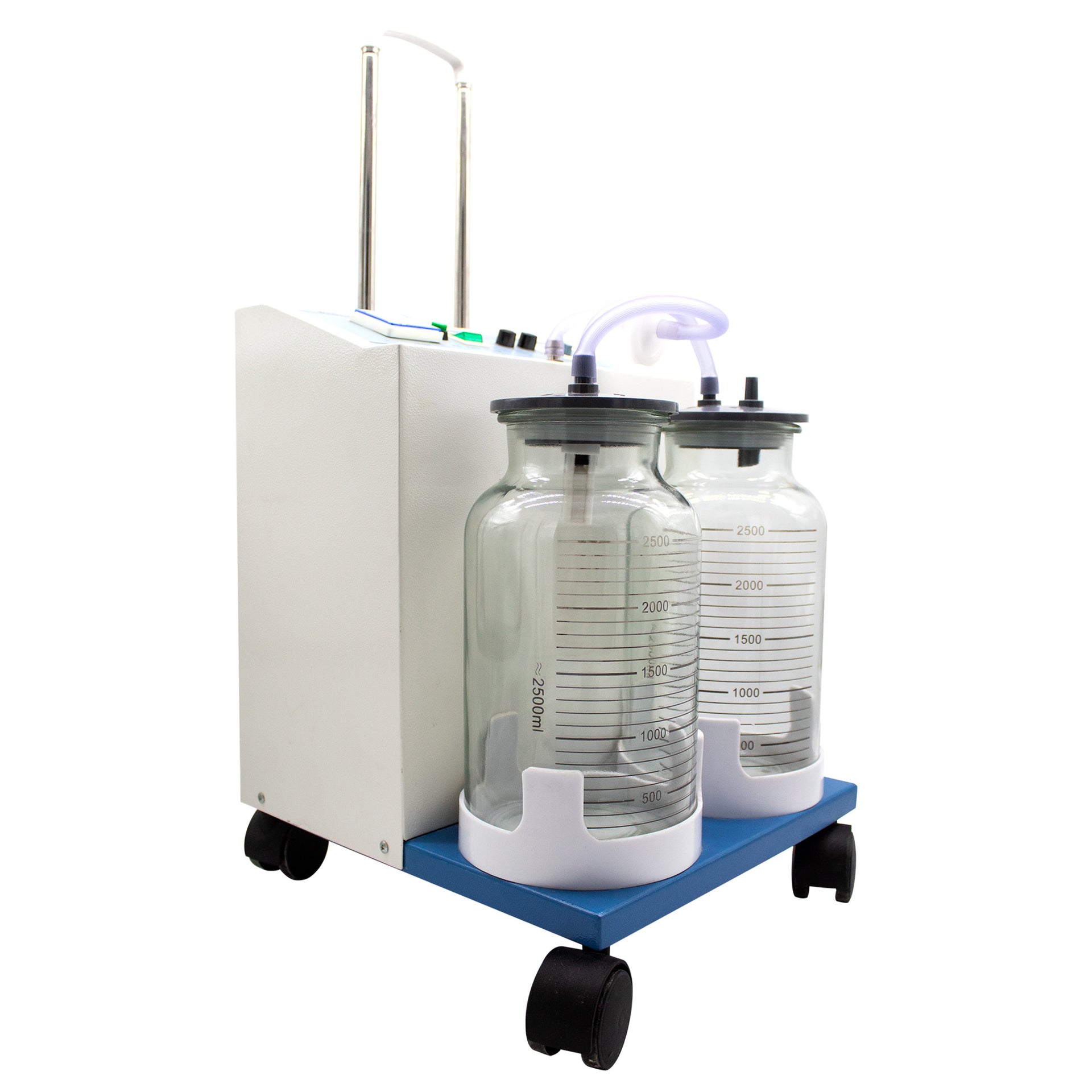

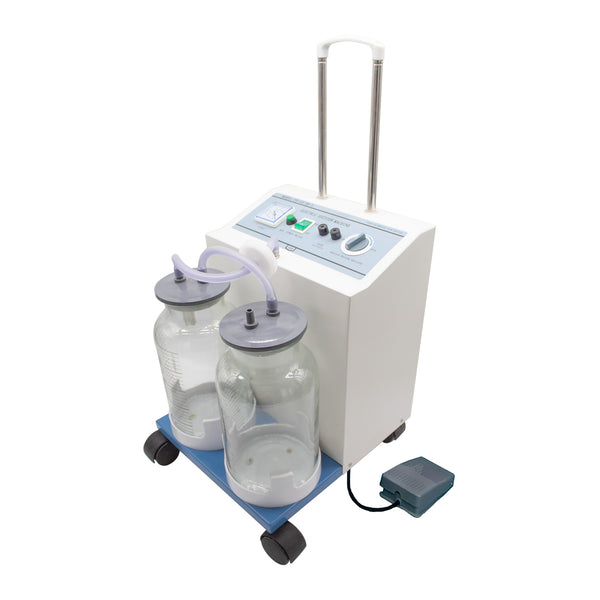

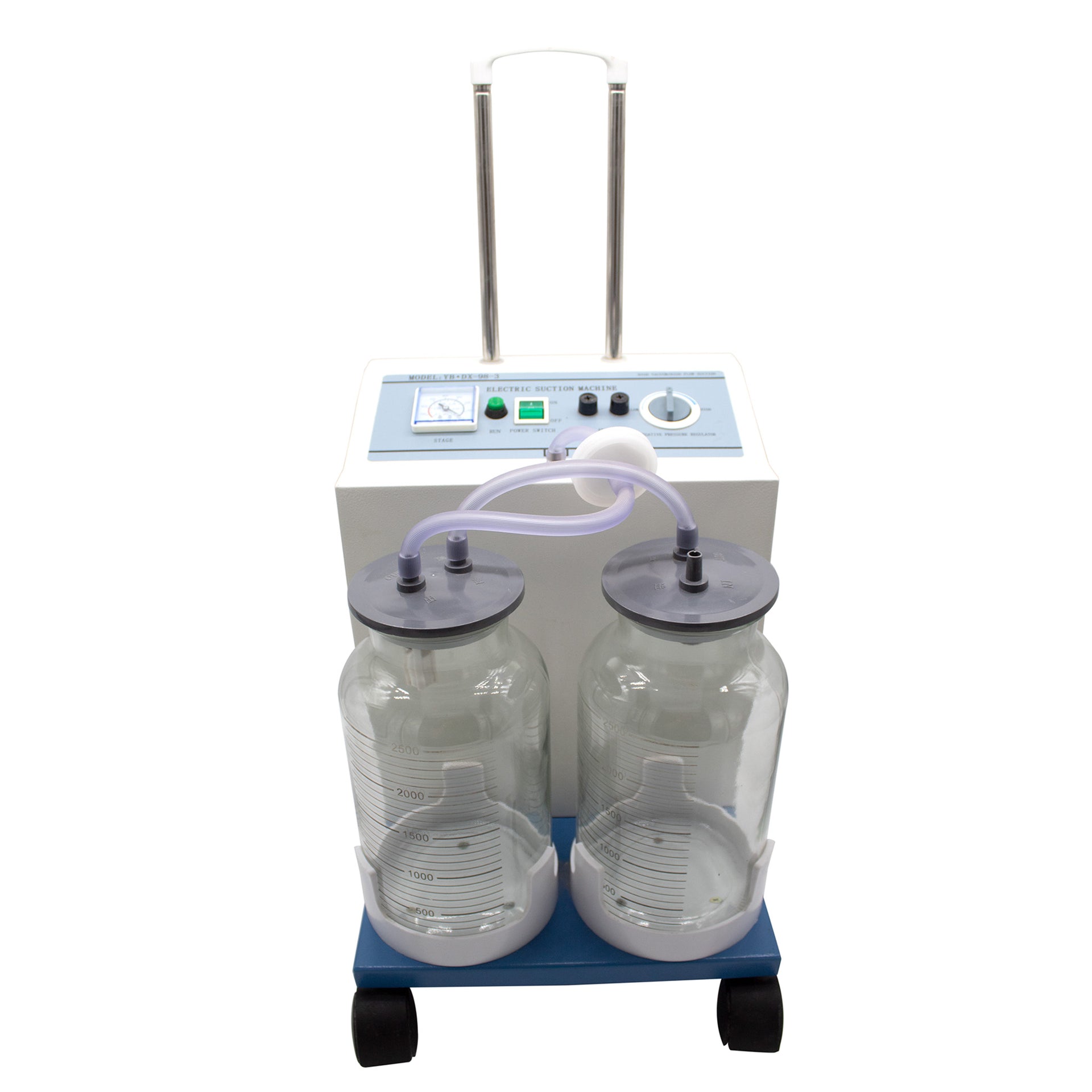

25L Electric Suction Machine with Two Bottle ESM-2

This advanced medical suction unit is designed to meet the diverse needs of hospitals and healthcare facilities. With its exceptional features and robust performance, it sets a new standard in respiratory care equipment.

Key Features:

1. Versatile Compatibility: Suitable for a wide range of medical applications and settings, from hospitals to clinics.
2. Dual-Head Piston Vacuum Pump: Delivers powerful and reliable suction performance.
3. Anti-Overflow Safety Device: Prevents liquid overflow, simplifying maintenance and eliminating the need for oil changes.
4. Dual Control System: Offers both manual and pedal switches for easy, intuitive operation.
5. Compliance with Standards: Meets the requirements of IEC60601-1, IEC60601-1-2, and ISO 10079-1 standards.

Technical Specifications:

• Model: ESM2
• Maximum Air Flow: 25 L/min
• Maximum Vacuum: -0.08 MPa
• Vacuum Bottle Capacity: 2500 ml
• Power Supply: AC 220V-240V, 50Hz ± 1Hz
• Power Consumption: 150 W
• Noise Level: ≤ 60 dB(A)
• Operating Temperature: +5°C to +35°C
• Operating Humidity: ≤ 80% (non-condensing)
• Atmospheric Pressure: 86 kPa to 106 kPa
• Net Weight: 12.5 kg
• Gross Weight: 14.5 kg
• Dimensions (W x D x H): 406 x 343 x 481 mm

System Overview:

• Pump Driving System: Dual-head piston vacuum pump
• Bottle System: 2500 ml collection container with overflow protection
• Operate System: Pumping rate of 235 L/min at the hole (air vent) and 225 L/min at the terminal
• Electrical System: AC 220V-240V, 50Hz ± 1Hz power supply

This comprehensive medical suction unit, the ESM2, is a reliable and versatile solution for healthcare providers, offering advanced features, robust performance, and compliance with industry standards.
