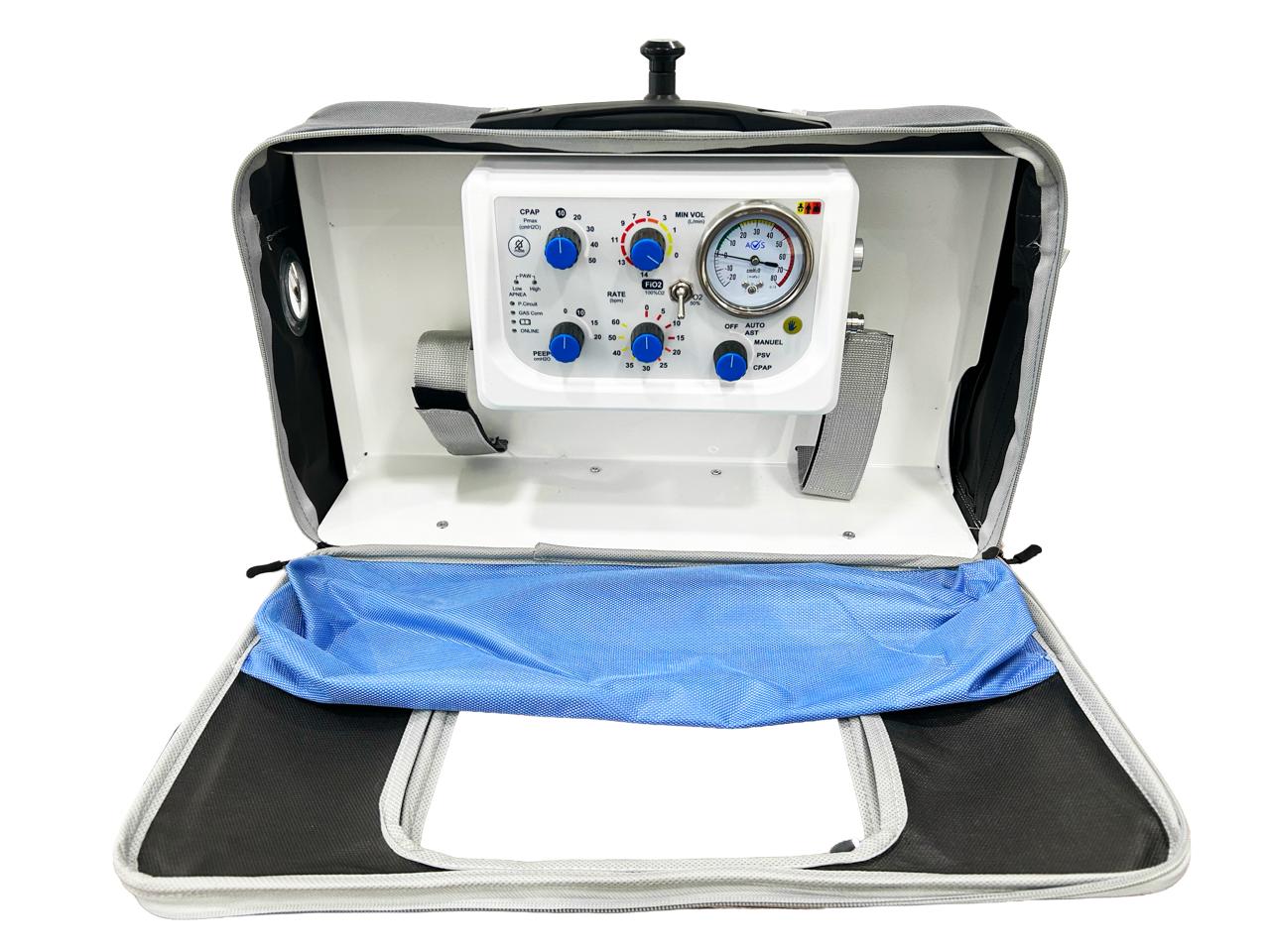

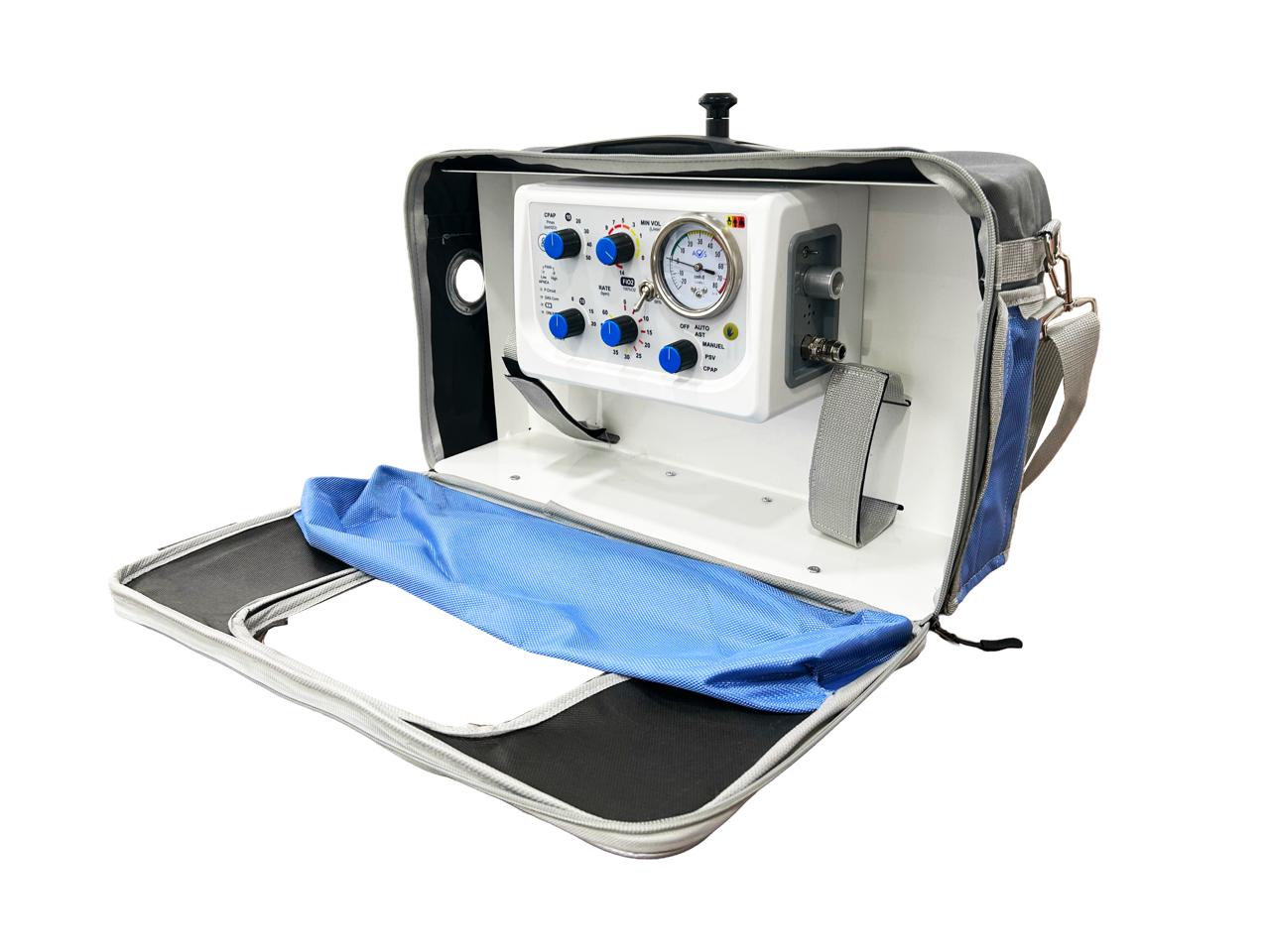

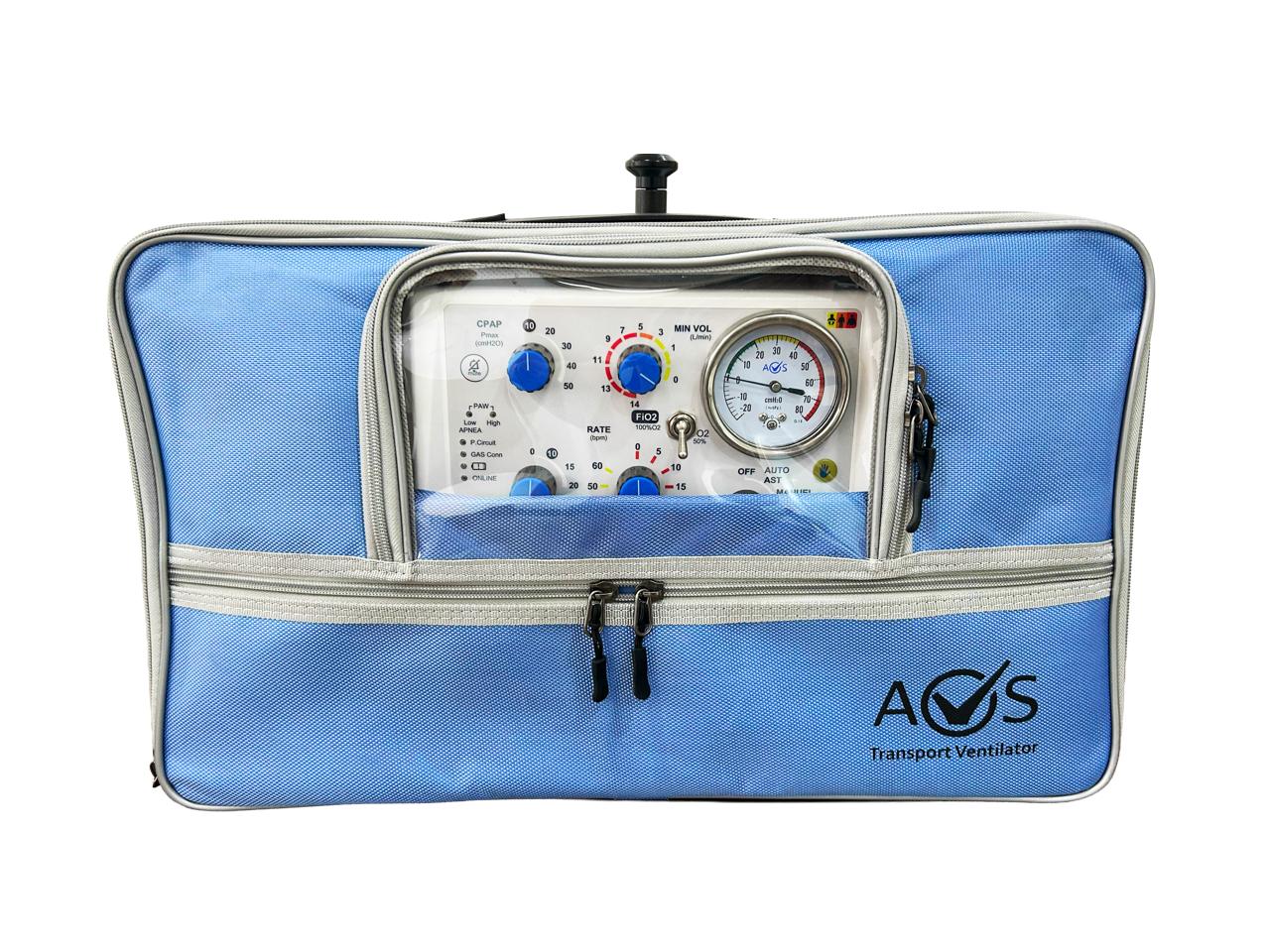

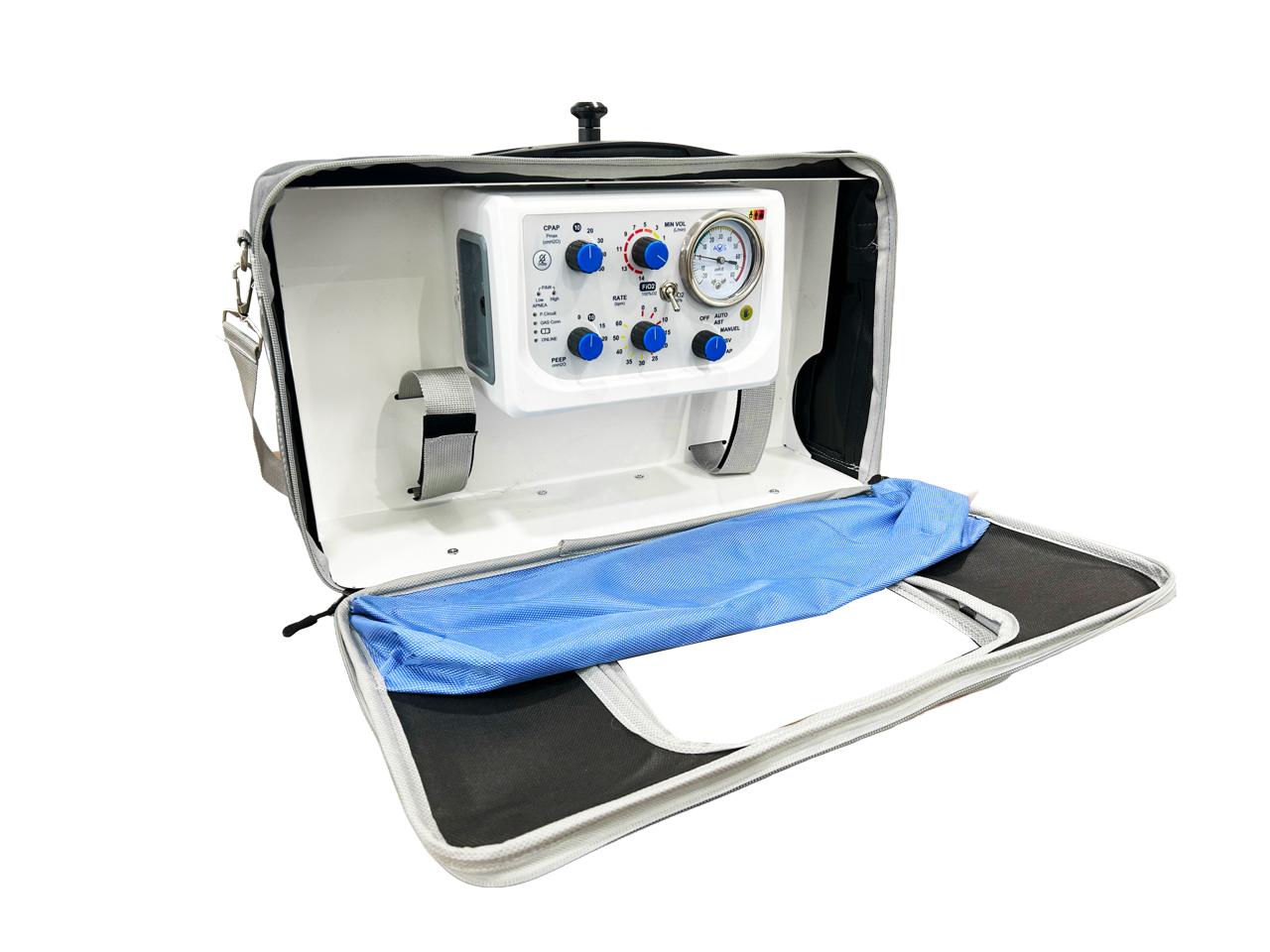

AVS Transport Ventilator

Provide dependable ventilation support during emergency response and patient transfer with the AVS Transport Ventilator A-VENT101. This electronically controlled mechanical ventilator is built for use in ambulances, emergency rooms, and in-hospital transport, supporting infants, children, and adults (over 3 kg). With multiple ventilation modes, real-time pressure monitoring, and clear visual/audible alarms, it’s designed for safe, controlled respiratory support on the move.

Why Choose AVS A-VENT101

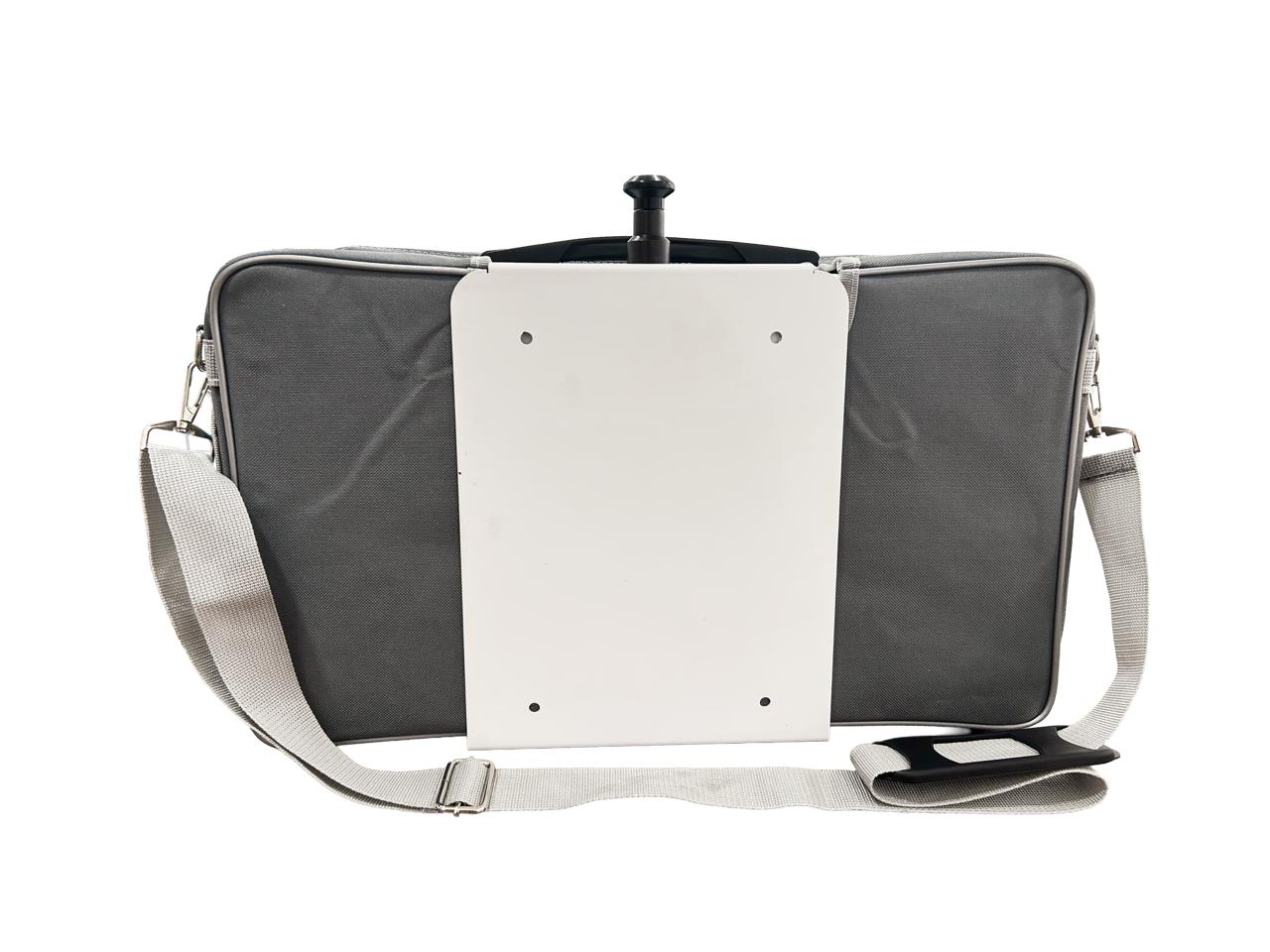

• Portable transport design: Lightweight at 3.25 kg and includes an easy-carry case
• Multiple ventilation modes: AUT-AST / PSV (IPPB) / CPAP / Manual
• Wide setting ranges: Up to 0–150 bpm respiration frequency, 15–2000 ml tidal volume
• Safety monitoring: Instant airway pressure measurement + intelligent alarms for critical events
• Field-ready protection: IP44 fluid protection rating

Key Features

• Respiration frequency: 0–150 bpm
• Pressure limit: 10–80 cm H₂O
• Tidal volume: 15–2000 ml
• Minute volume: 0–16 L/min
• PEEP: 0–20 cm H₂O (internal PEEP valve)
• O₂ mixer: 50%–100%
• Jet ventilation capability (works with 150 bpm / 80 cmH₂O / 16 minute volume values)
• Ability to set maximum airway pressure and end expiratory PEEP pressure
• Dual processor control
• Automatic self-test at power on
• Use with mask and endotracheal tube
• Connectivity to central oxygen system
• Alarms (visual & auditory): leak / high pressure / power loss / reduced oxygen supply
• Analog indicator + dial-key design for quick max/min adjustments

Technical Specifications

• Model: A-VENT101
• Power: 12V (DC)
• Charging: DC 12V, 2.1A
• Power consumption: 16W
• Battery: 12V rechargeable, 1800 mAh (up to 4 hours operation)
• IP rating: IP44
• Dimensions: 306 × 135 × 127 mm
• Use mode: Continuous
• Compliance: TS EN 1789:2020 (as stated)
• Marks: ISO / CE (as labeled)

Ideal For

• ICU transport
• In-hospital patient transfer
• Ambulance / emergency medical services
