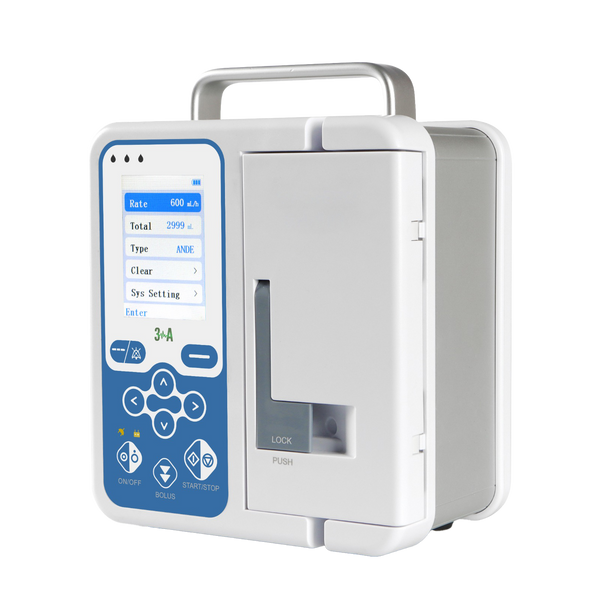

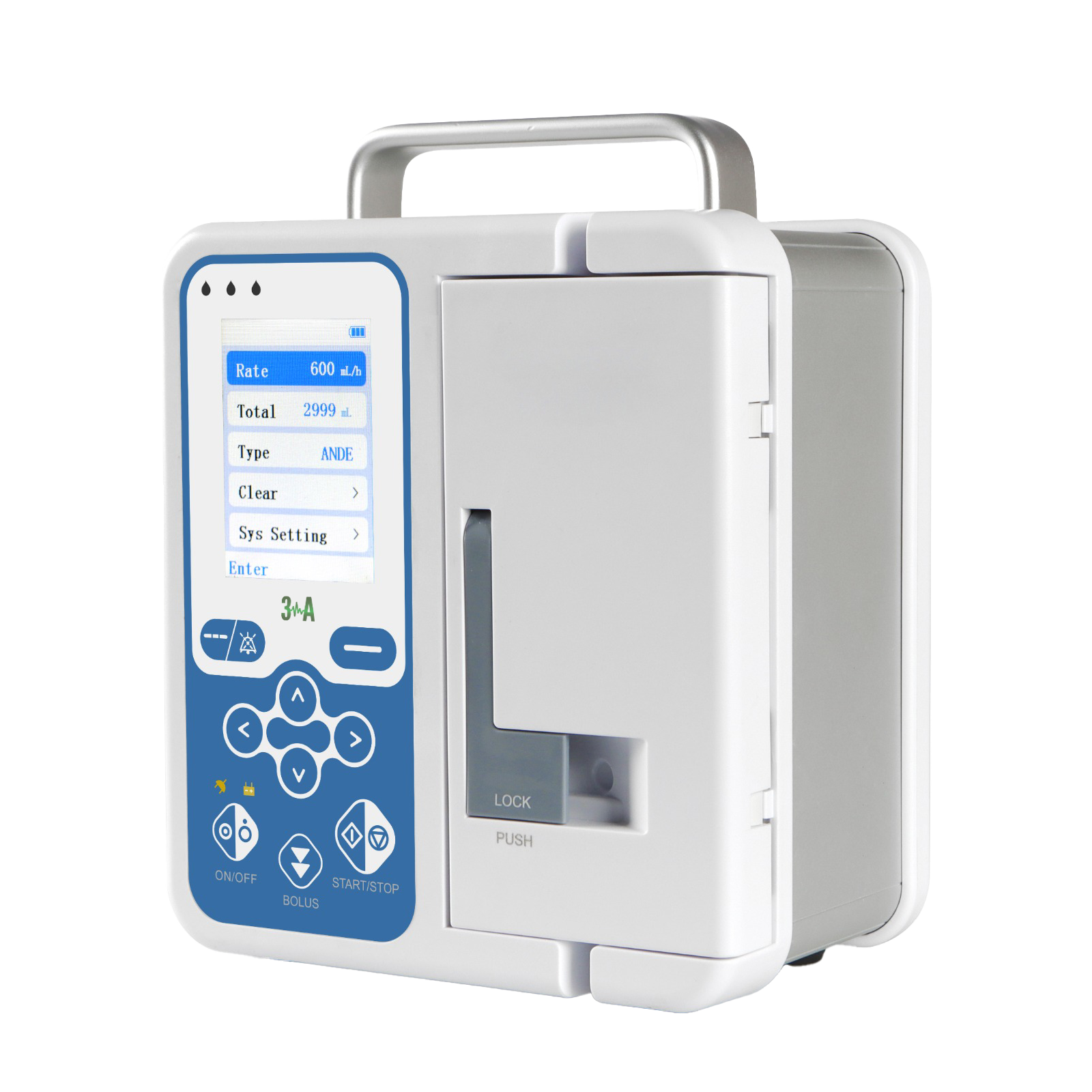

3A Infusion Pump (IP-08A)

Main Features:-

• 2.8" Sharp and Large Display ensures clear view from distance
• Compact aluminum enclosures and robust construction
• Compatible with mostly standard IV Sets
• Users friendly interface for easy operation
• Precise control of the infusion rate and infusion volume
• Different Infusion Modes meet most clinical needs
• Residual infusion time can be displayed during infusing
• Anti-bolus System to improve infusion safety

Special safety measures

• Accompanying lV-set clamp prevents liquid flowing freely when the pump door opens accidentally.
• Air bubble detector with high accuracy prevents air bubbles from entering patient's body.
• Pressure sensor prevents occlusion for lV set.
• A.B.S system, when the high-voltage occlusion alarm appears, stop infusing immediately, and eliminate the pressure of the lV set automatically, which prevents instantaneous high-dose injection from the sudden obstruction disappearing.
• lnfusion parameters during infusing are protected against being changed arbitrarily.
• With password protection function(in system parameter setting and lV set type interface.


Function:

• Flow control with high accuracy ensures optimum therapeutic effect.
• Be compatible with most standard lV Sets.
• New lV set provided by user can be calibrated by suppliers,and infusion parameters can be input into the pump, which ensures accuracy .
• 2.8"TFT-LCD.
• Operate with keys.
• Residual infusion time can be displayed during infusing.
• With reminder function for starting infusion.
• Alarm for occlusion, air bubble, door open and motor failure, etc.
• Threshold for pressure alarm can be adjusted by medical personnel.
• Accompanying lV-set clamp prevents liquid flowing freely when the pump door opens accidentally.
• A.B.S——ANTIBOLUS system prevents instantaneous high-dose injection from the sudden obstruction disappearing.
•  Stop infusing automatically during alarm(except for "NEAREND", "KVo", and "LOWBATTERY" alarms).
• Power supply: AC/DC and built-in lithium battery.
• lnfusion parameters can be saved after power off.

Technical Specification:

• Type: volumetric infusion pump
• lnfusion rate: 1~699mL/h, increment: 1mL/h
• Total volume: 1~9999mL, increment: 1mL
• Accuracy: ±5%(use the lV set calibrated)
• Display information: flow rate, total volume, accumulated infusion volume, residual time
• Safety classification: class l，type BF applied part
•  Waterproof degree: IPX2
• Working mode: continuous working
• Alarm functions: near end, KVO state, low battery, no power, pressure failure, door failure, air bubble, door open, occlusion, infusion reminder and motor failure.
• Air bubble detector: ultrasonic
• TFT: 2.8"
• KVO rate: 1mL/h(can not be adjusted)
• Sensitivity for pressure sensor: 1~3 grades(it can be adjusted by professional medical personnel)
• Power supply: AC:100~240V,50/60Hz Rechargeable Li-polymer battery,7.4V/5000mAh
• Dimension: 143.6.mm(L)×151.8mm(W)×195.3 mm(H)
• Weight: 1.9kg
