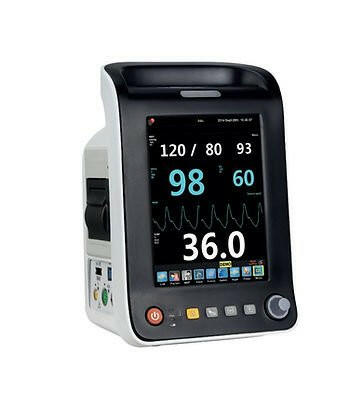

PROGETTI VITAL SIGN MONITOR - PG S10

A vital sign monitor is a medical device that measures essential health indicators, such as heart rate, blood pressure, respiratory rate, and body temperature. These measurements play a crucial role in assessing a patient's overall health, offering valuable insights for diagnosing conditions and guiding treatment decisions.

Features

• Display: 8-inch color TFT LCD screen with 800x600 pixel resolution (Touch screen option available).
• Design: Portable, lightweight, and sturdy construction for ease of use and transportation.
• Configurable Parameters: Flexible configurations to suit different critical environments.
• Battery: Rechargeable Li-ion battery provides up to 4 hours of uninterrupted operation.
• Monitoring Modes: Supports both spot-check and continuous monitoring modes.
• Patient Types: Suitable for adult, pediatric, and neonatal patients.
• Connectivity: Wired and wireless CSM support, compatible with HL7 protocol for integration with Hospital Information Systems (HIS) (optional).
• Trend Review: Offers graphical and tabular trend review capabilities.
• Wave Review: 48-hour full disclosure wave review for each patient, data stored on SD cards.

Pulse Rate

• Range: 30-254 bpm
• Resolution: 1 bpm
• Accuracy:
  • ±2 bpm (non-motion)
  • ±5 bpm (motion)
• Refreshing Rate: 1 s

SpO2

• Measurement Range: 0-100%
• Resolution: 1%
• Accuracy:
  • ±2% (70-100%, Adult/Pediatric)
  • ±3% (70-100%, Neonate)
  • 0-69%, unspecified
• Refreshing Rate: 1 s

NIBP (Non-Invasive Blood Pressure)

• Measurement Method: Automatic oscillometric method
• Operating Modes: Manual, automatic, continuous
• Typical Measurement Time: 20-40 s
• Measurement Range (mmHg):
  • Systolic Pressure:
    • Adult: 40-270
    • Pediatric: 40-200
    • Neonatal: 40-135
  • Diastolic Pressure:
    • Adult: 10-210
    • Pediatric: 10-150
    • Neonatal: 10-95
  • Mean Pressure:
    • Adult: 20-230
    • Pediatric: 10-150
    • Neonatal: 20-105
• Measurement Accuracy:
  • Maximum Average Error: ±5 mmHg
  • Maximum Standard Deviation: 8 mmHg
  • Resolution: 1 mmHg
• Interval Options: 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240, 480 minutes
• Over Pressure Protection: Software and hardware, double safety protection
• Cuff Pressure Range: 0-280 mmHg

Temperature

• Measurement Method: Thoracic
• Measuring Range: 5-50°C (41-122°F)
• Resolution: 0.1°C
• Measurement Accuracy: ±0.1°C

Infrared Ear Thermometer

• Displayed Range: 34-42.2°C (93.2-108°F)
• Accuracy:
  • ≥35°C (95.9°F) ~ ≤42.2°C (107°F): ±0.2°C (0.4°F)
  • <35°C (95.9°F) ~ ≥34°C (93.2°F): ±0.3°C (0.5°F)

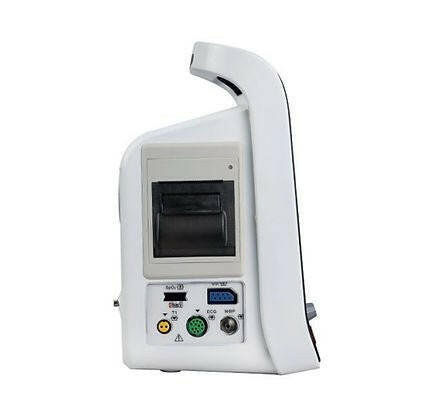

Recorder (Optional)

• Type: Built-in, Thermal dot array
• Horizontal Resolution: 16 dots/mm (25 mm/s paper speed)
• Vertical Resolution: 6 dots/mm
• Paper Speed Options: 25 mm/s, 50 mm/s
• Number of Waveform Channels: 3

Optionals

• Recorder
• Touch-screen Display
• Bag
• Barcode Scanner
• Wi-Fi

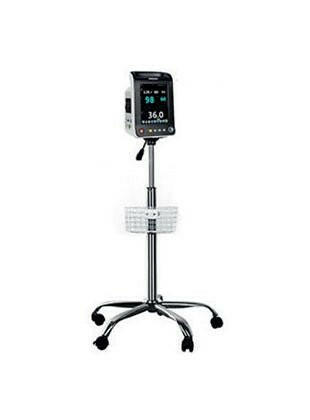

• Rolling Stand

Size and Weight

• Weight: < 3 kg
• Dimensions: 175 × 275 × 175 mm (L × W × T)

Operation Environment

• Power: AC 100-250V, 50/60Hz
• Temperature: 5-40°C
• Humidity: < 85%
• Lithium-ion Battery Duration: ≥ 4 hrs
