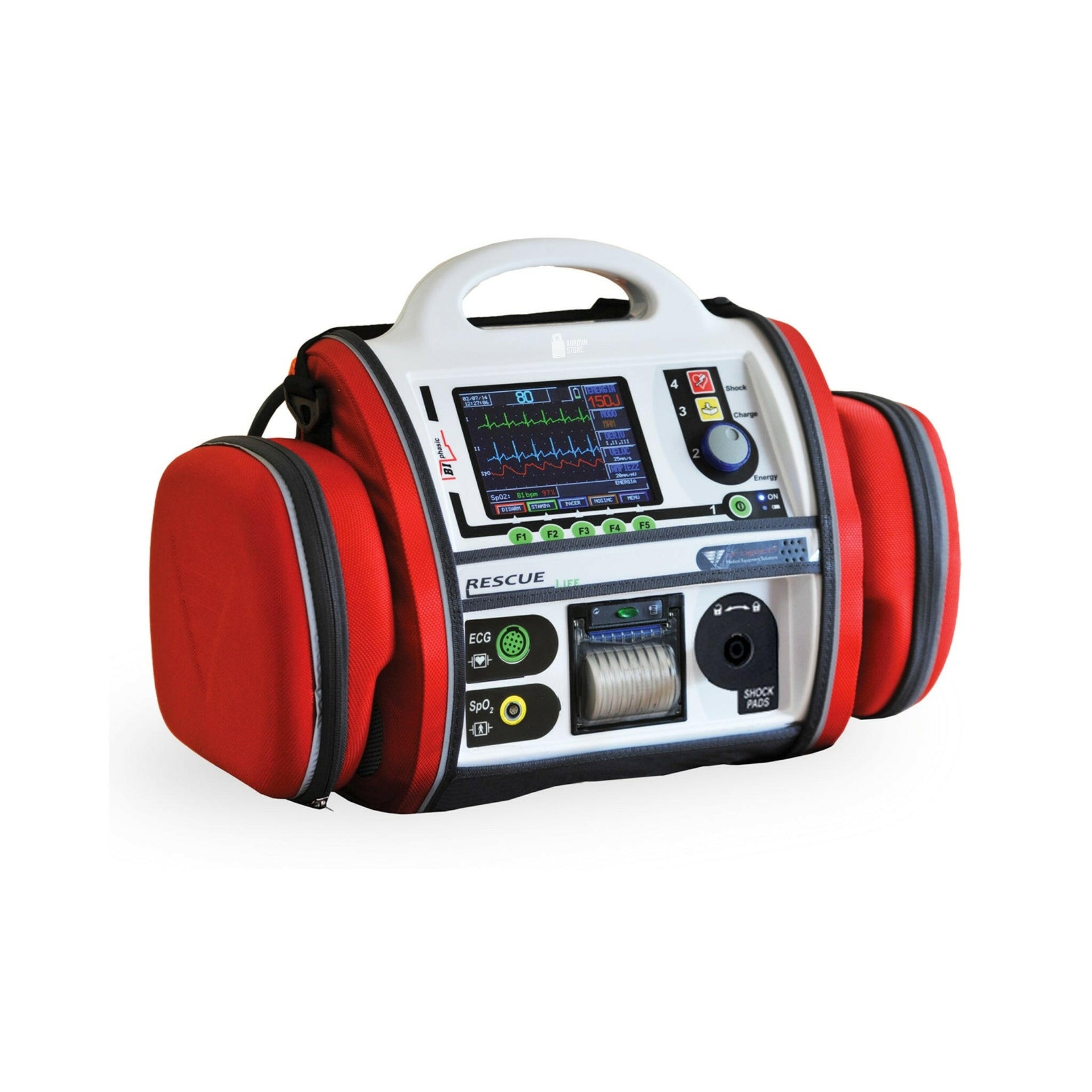

PROGETTI RESCUE LIFE 7 DEFIBRILLATOR MACHINE WITH MONITOR

Introduction

• Rescue Life is the new top-of-the-range product resulting from continuous improvements on defibrillators created by Progetti. With more than 25 years of industry experience, Rescue Life is the most advanced solution for emergency medicine.
• Ergonomic and extremely robust, it is the first professional defibrillator totally Made in Italy. Internal self-test system, which allows you to check the device’s own functions, the battery status and the charge-discharge system, with the possibility of real-time data management and report printing.

Main Features:

DESIGN:
Born from expert Italian designers, its strength is simplicity and beauty. Attractive line, ergonomic form, studied in every detail, Rescue Life is the first professional defibrillator totally MADE IN ITALY that respects the traditions of elegance and comfort. Thanks to the lightweight and transport facility this defibrillator is the perfect device in the hard challenges. Quality and safety is the mix of our expertise, applied to Rescue Life as well to all our products line. The IPX4 standard permits the operation under adverse climatic situations

TECHNOLOGY

Rescue Life is a new top product evolved from the improvements to the defibrillators manufactured by Progetti. From more than 25 years’ experience, Rescue Life is the advanced solution for emergency medicine. Ergonomic form, extremely robust, it is the first professional defibrillator totally Made in Italy. Auto-test mode allows to verify the proper functions of the device, battery status and charge-discharge system with the possibility of real time data management and report printing.

USABILITY
Close to the needs of the modern emergency medicine, Rescue Life guarantees impact-proof larger TFT LCD color 7” display, powerful battery up to 5 hours continuous monitoring and different product configurations. Individuals can choose from basic to fully equipped models among the available optional: up to 12 leads ECG monitoring, AED & Advisory working mode, external pacemaker, pulse oximeter and non-invasive blood pressure.

DISPLAY
Brilliant, high-resolution TFT LCD color 7” 800x480 dots display allows the simultaneous visualization in real time of 3, 6 or 12 leads ECG and plethysmograph waveform with SpO2 sensor connected. ECG leads error message when cable is disconnected. Customizable ECG display traces in setup menu. Three operating modes: manual, AED, Advisory. In Advisory mode Rescue Life alerts when the shock is necessary using voice prompts and display messages, leaving the energy level and charging choice to the operator.

FAST CONNECTION
Users can choose between ergonomic reusable paddles, suitable for the manual defibrillation in both adult and pediatric patients or disposable pads for AED defibrillation. Both types are equipped with a single fast lock connection for reliable rescue operations. The ECG can be detected via 3, 5 or 10 leads ECG cable and the optional SpO2 sensor is available for detecting blood oxygen saturation. Rescue Life can be equipped with internal reusable defibrillation paddles with interchangeable different sizes.

SENSIVITY IN ECG DETECTION
Rescue Life can filter the ECG signal automatically thanks to two modes: DIAGNOSTIC: ECG signal processing recommended for interpretation and diagnosis of ECG traces by the qualified personnel. MONITORING: digital filtered ECG signal, rejects the most parts of noises and artefacts caused by patient motions or by other physiological process of the body. These two modes may facilitate the ECG detection and help the qualified personnel to take important decisions for the diagnosis of heart diseases.

MEMORY & DATA MANAGEMENT
Simple commands, extremely intuitive and easy to use. Immediate access to main setup parameters using only the trim knob and function keys. The internal memory is able to record more than 300 hours of ECG data and events. The data are recallable and printable on the integrated thermal printer. Printing can be done in manual or in automatic mode. In the automatic mode the printing initiates when the energy charging starts (recording the ECG signal before the shock) and will continue 10 seconds after the shock was delivered.

OPTIONAL
Optimized and comfortable carrying bag, SpO2 module, multifunction disposable defi pads for adult and pediatric, 10 leads ECG cable, pacemaker module, NIBP module, mounting bracket 10G tested.

Specification

GENERAL REQUIREMENTS
Dimension • 369 x 240 x 340 mm Weight • 5,5 Kg with battery Electrical • • AC 100-240 VAC, 50/60 Hz- inverter 12V car adapter (optional) Rechargeable 15.0 V – 3.2 Ah Lithium-ion battery Battery Operation Time • >5 hours Battery Charge Time • Max. 3 hours Capacity • 150 shocks at 230J with battery fully charged Software • Voice and texts multi language Memory • Internal flash 4 Gb up to 300 hrs of ECG data, events and usage review Review and printing database • Review and printing of archived events

ENVIROMENTAL
Temperature • • • Operational -5° ~ 46° C Storage -20° ~ 50° C Relative humidity 10 ~ 95% Isolation • ECG type CF, Defibrillation type BF Water proof • Class IPX4

DEFIBRILLATION
Waveform • • Biphasic Truncated Exponential (BTE) HiCAP technology (Large storage capacitor) Impedance • Compensated, range 25 - 200 Ohm Charge time • 6 sec for 230 J with battery fully charged

AED MODE
Energy • Fixed energy at 200 J Protocol • ERC 2015 CPR Guidelines with voice and text prompts Shockable rhythms • VF with amplitude > 0.15 mV and VT with rhythm >150 bpm Sensitivity • • Shockable rhythm-VF > 95% Shockable rhythm-VT > 75% Specificity • • • According to ERC 2015 Normal sinusoidal rhythm > 99% Asystole and other non-shockable rhythms > 95%

MANUAL MODE
Energy range • 1 - 230 J (from 1-10 J in 1 J steps; from 10 to 230 J in 10 J steps) Commands • Multifunction trim knob. Charge and shock button directly in the front panel for hands free defibrillation Paddles • • Reusable adult & pediatric defi paddles with charge/shock command Disposable defi pads and internal defi paddles (optional) Operating mode • ECG « R » wave synchro or async mode Indicators • • Battery and main led indicators Clear and visible backlight color buttons

DISPLAY
Type • High contrast TFT color LCD 7” (800X480 dots) Information • Operational information, ECG traces, Spo2 value, NIBP values, parameters, Heart Rate indicator, filters, alarms and battery status Display mode • Can select 3, 6, 12 ECG leads

ECG MONITORING
Bandwidth • 0.5 - 120 Hz (-3 db) with filters off CMRR • > 95 db Input impedance • > 20 Mohm Input • • Patient cable 5 leads (I, II, III, aVL, aVF, aVR, V) - standard Patient cable 10 leads (I, II, III, aVL, aVF, aVR, V1…..V6) - optional Gain • 2,5, 5, 10, 20, 40 mm/mV with patient cable. AUTO with pads Speed • 5, 10, 25, 50 mm/sec Filters • 550/60 Hz, EMG Filter, base line Monitoring Mode: bandwidth • 0.6 - 40 Hz (-3 db) Diagnostic Mode: bandwidth • 0.05 - 120 Hz (-3 db) HR range • 20 - 300 bpm (~ 2%), digital readout on the display Alarm • HR max settable 250 bpm; HR min 20 bpm

SPO2 (OPTIONAL)
SpO2 range • 0 - 100% HR range • 30 - 250 bpm Accuracy • 70 - 100% ~ 2% for adults with finger clip sensor Alarm • Adjustable min 50%

NIBP (OPTIONAL)
Technique • Oscillometric NIBP Accuracy • Meets ANSI/AAMI SP10-2002, EN 1060-4 Patient Application • Adult/Paediatric/Neonatal Systolic Range • Adult: 40-260mmHG, Paediatric: 40-160 mmHG, Neonatal • 40-130 mmHG Range MAP • Adult: 26-220 mmHG, Paediatric: 26-133 mmHG, Neonatal • 26-110 mmHG Diastolic Range • Adult: 20-200 mmHG, Paediatric: 20-120 mmHG, Neonatal • 20-100 mmHG PR RANGE • 30-220 BPM PR Accuracy • +/-2% or +/3 bpm Operating Modes • Manual, Long Term Automatic, Stat, Service Auto Interval Periods • 1,2,3,4,5,10,15,30,60 and 90 minutes

PRINTER
Type • Integrated thermal 3 channels printer for ECG traces and events documentation hardcopy including HR/SpO2/NIBP values Paper speed • 5, 10, 25, 50 mm/sec Paper width • 58 mm Operating model • Manual, automatic (10” pre and post shock recording)

EXTERNAL PACEMAKER (OPTIONAL)
Type • Rectangular wave Operating mode • Fixed on demand Pulse rate • 30 ppm to 250 ppm, adjustable in steps of 5 ppm Impulse duration • 22.5 ms Pulse current • 0 to 150 mA adjustable in steps of 5mA Amplitude • Max 150 V

STANDARDS & SAFETY
Standard • IEC 60601-2-4; IEC 60601-1; IEC 60601-1-2 ANSI/AAMI 60601-2-4; ANSI/AAMI 60601-1; ANSI/AAMI 60601-1-2 CE Mark EEC 93/42 • Medical device, Class IIb
