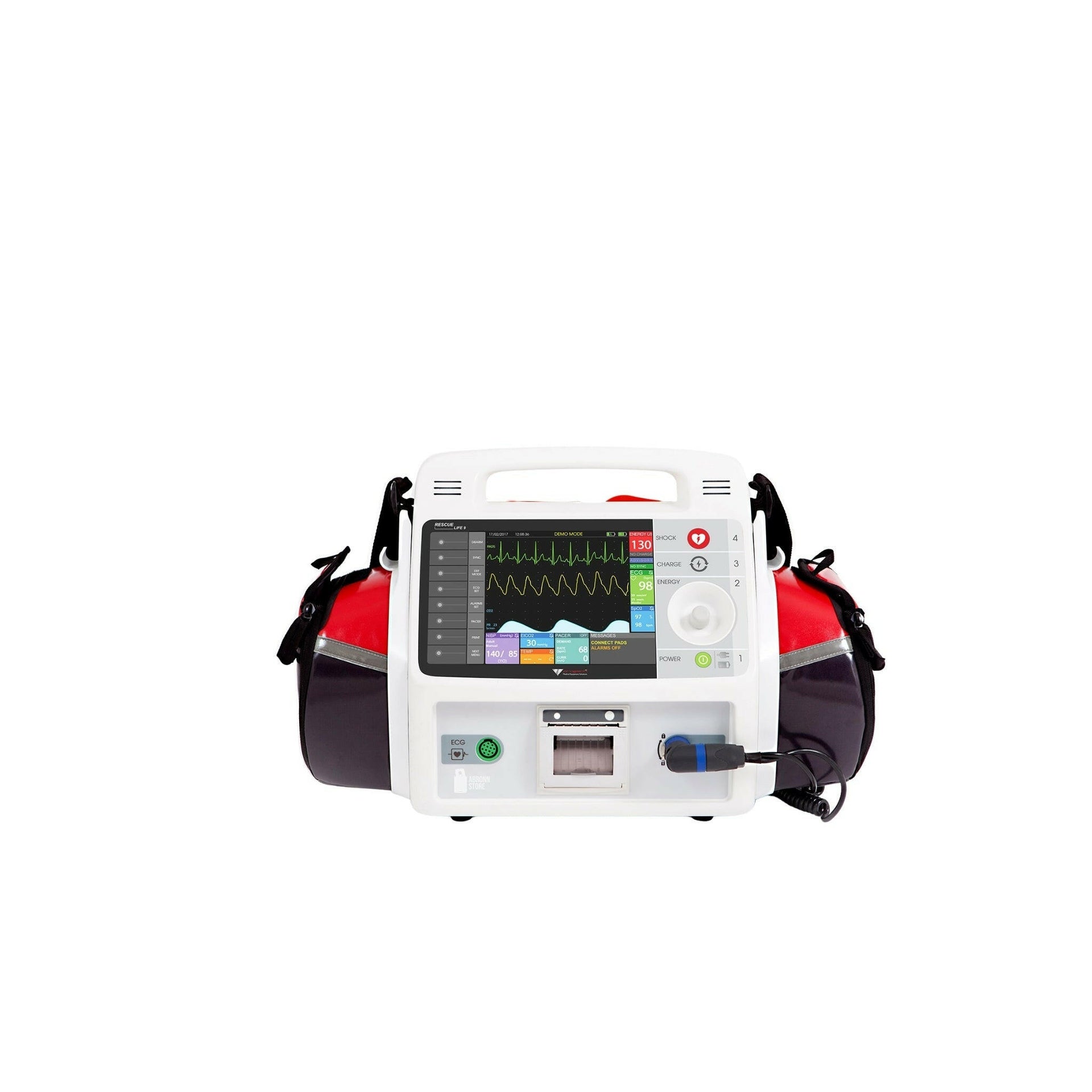

PROGETTI RESCUE LIFE 9 DEFIBRILLATOR MACHINE WITH MONITOR

Rescue Life 9 is the new flagship product resulting from the continuous research and development carried out for more than 30 years by Progetti Medical.

The device uses biphasic waveform technology (BTE) which makes it easy to compensate the shock waveform to match the patient’s impedance. Based on the measured patient impedance, the biphasic technology adjusts the duration of current flow to optimize the effectiveness of shock delivery.

A message on the display indicates the correct impedance level detected by the defibrillator before discharging.

The combined monitor defibrillator Rescue Life 9 is designed to provide complete monitoring of main patient’s parameters.

You can choose desired configuration according to your needs and requirements: 10 leads ECG cable, HR, SpO2, NIBP, Temperature and EtCo2. Rescue Life 9 can also perform synchronized cardioversion and provide external pacemaker in fixed or demand mode. it is also available the ergonomic carrying bag, multifunction disposable pads for adult and pediatric, mounting bracket for ambulance.

GENERAL REQUIREMENTS

• Dimension & weight • 335 x 225 x 360 mm, • 6,5 Kg with dual batteries
• Electrical: AC 100-240 VAC, 50/60 Hz • Rechargeable dual batteries: 15.0 V 3.2 Ah Lithium-ion
• Battery Operation Time • >5 hours, >10 hours with dual batteries
• Battery Charge Time • Max. 3 hours
• Capacity • 150 shocks with single battery or 300 shocks with dual battery at 230J fully charged
• Software • Voice and texts multi language
• Memory • Internal flash for ECG data, events and usage review up to 10 hours

ENVIRONMENTAL

• Temperature • Operational -5 ~ 46C, • Storage -20 ~ 50C, • Relative humidity 10 ~ 95%
• Isolation • ECG type CF, Defibrillation type BF
• Ingress protection • IP4X

DEFIBRILLATION

• Waveform • Biphasic Truncated Exponential (BTE), HiCAP technology (Large storage capacitor)
• Impedance • Compensated, range 25 - 200 Ohm
• Charge time • 8 sec for 230 J with battery fully charged

AED MODE

• Energy • Fixed energy at 200 J
• Protocol • ERC 2015 CPR Guidelines with voice and text prompts
• Shockable rhythms • VF with amplitude > 0.15 mV and VT with rhythm >150 bpm
• Sensitivity •Shockable rhythm-VF > 95%, Shockable rhythm-VT > 75%
• Specificity • According to ERC 2015, Normal sinusoidal rhythm > 99% • Asystole and other non-shockable rhythms > 99%

MANUAL MODE

• Energy range • 1 - 230 J (from 1-10 J in 1 J steps; from 10 to 230 J in 10 J steps)
• Commands • Multifunction trim knob. Charge and shock button directly in the front panel for hands free defibrillation
• Paddles • Reusable adult & pediatric defi paddles with charge/shock command • Disposable defi pads and internal defi paddles (optional)
• Operating mode • ECG « R » wave synchro or async mode
• Indicators • Battery and main led indicators • Clear and visible backlight color buttons

DISPLAY

• Type • High contrast TFT color LCD 8.4’’ (800X600dots)
• Information • Operational information, ECG traces, Spo2 value, NIBP values, etCO2, TEMP, Heart Rate indicator, filters, alarms and batteries status
• Display mode • Can select 3, 6, 12 ECG leads

ECG MONITORING

• Bandwidth • 0.05 - 120 Hz (-3 db) in diagnostic mode • 0.6 - 40 Hz (-3 db) in monitoring mode
• CMRR • > 98 db
• Input impedance • > 50 Mohm I
• nput • Patient cable 3 leads (selectable I, II or III) - optional • Patient cable 5 leads (I, II, III, aVL, aVF, aVR, V) - standard • Patient cable 10 leads (I, II, III, aVL, aVF, aVR, V1…..V6) - optional
• Gain • 2,5, 5, 10, 20, 40 mm/mV
• Speed • 5, 10, 25, 50 mm/sec Filters • 50/60 Hz, EMG
• Filter, base line
• HR range • 20 - 300 bpm (~ 2%), digital readout on the display
• Alarm • HR max settable 250 bpm; HR min 20 bpm

SPO2 (OPTIONAL)

• SpO2 range • 0 - 100%
• HR range • 30 - 250 bpm
• Accuracy • 70 - 100% ~ 2% for adults with finger clip sensor
• Alarm • Adjustable min 50%

NIBP (OPTIONAL)

• Technique • Oscillometric
• NIBP Accuracy • Meets ANSI/AAMI SP10-2002, EN 1060-4
• Patient Application • Adult/Paediatric/Neonatal
• Systolic Range • Adult: 40-260mmHG, Paediatric: 40-160 mmHG, Neonatal • 40-130 mmHG
• Range MAP • Adult: 26-220 mmHG, Paediatric: 26-133 mmHG, Neonatal • 26-110 mmHG
• Diastolic Range • Adult: 20-200 mmHG, Paediatric: 20-120mmHG, Neonatal • 20-100 mmHG
• PR RANGE • 30-220 BPM
• PR Accuracy • +/-2% or +/3 bpm
• Operating Modes • Manual, Long Term Automatic, Stat, Service
• Auto Interval Periods • 1,2,3,4,5,10,15,30,60 and 90 minutes

PRINTER

• Type • Integrated thermal 3 channels printer for ECG traces and events documentation hardcopy including HR/SpO2/NIBP/etCO2/TEMP values
• Paper speed • 5, 10, 25, 50 mm/sec
• Paper width • 58 mm
• Operating model • Manual, automatic (12” pre and post shock recording)

EXTERNAL PACEMAKER (OPTIONAL)

• Type • Rectangular wave
• Operating mode • Fixed on demand
• Pulse rate • 30 ppm to 250 ppm, adjustable in steps of 5 ppm
• Impulse duration • 22.5 ms
• Pulse current • 0 to 180 mA adjustable in steps of 5mA
• Amplitude • Max 200 V

ENTIDAL CO2 (OPTIONAL)

• Mainstream technology for both intubated and non-intubated patients
• Measurement range • 0 to 150mmHg, accuracy ±2%
• Respiratory rate • 0 to 150 bpm

TEMPERATURE (OPTIONAL)

• Probe type • YSI400 compatible
• Range • 0 to 50 C
• Resolution • ±0.1 C

STANDARDS

• Standard • IEC 60601-2-4; IEC 60601-1; IEC 60601-1-2
• CE Mark EEC 93/42 • Medical device, Class IIb
