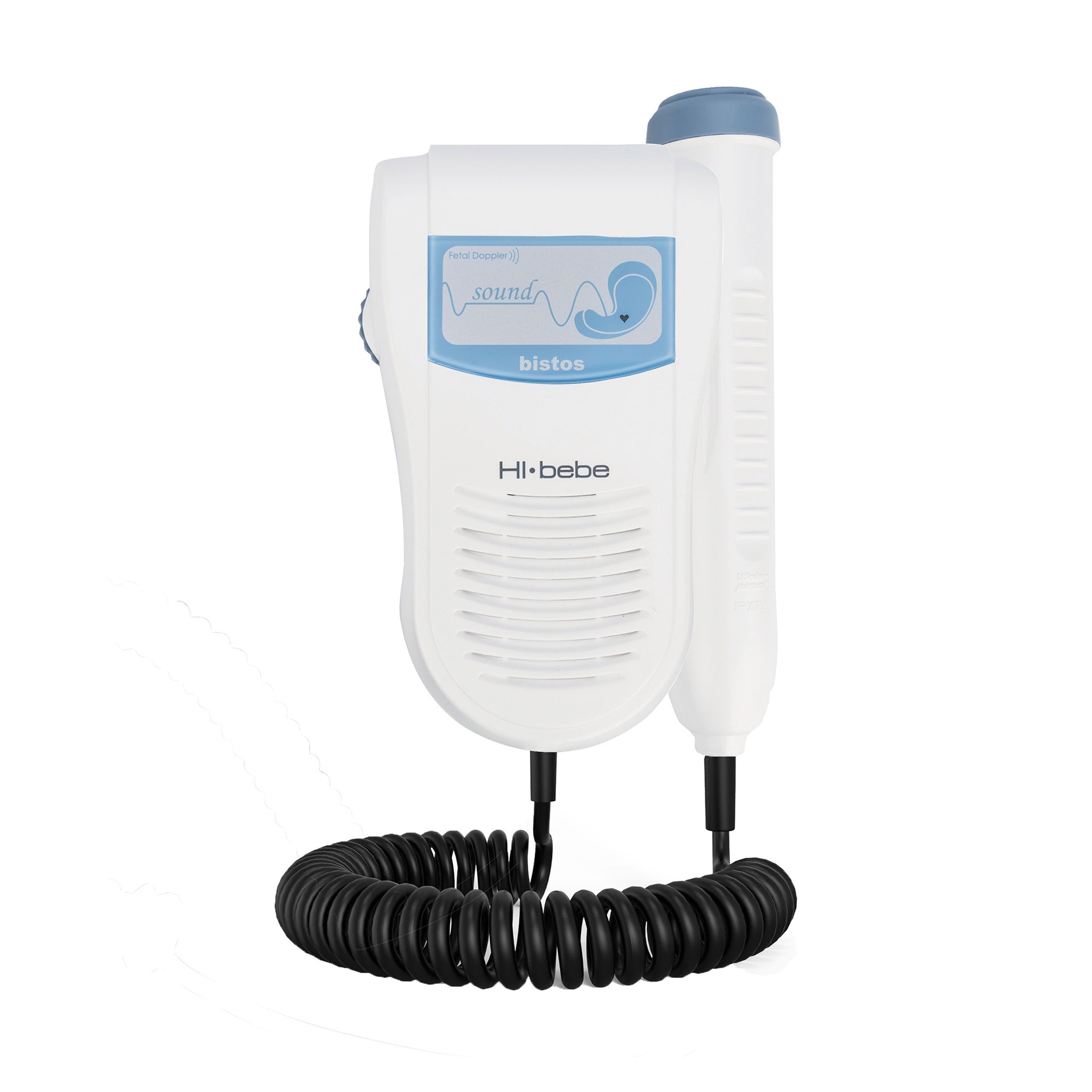

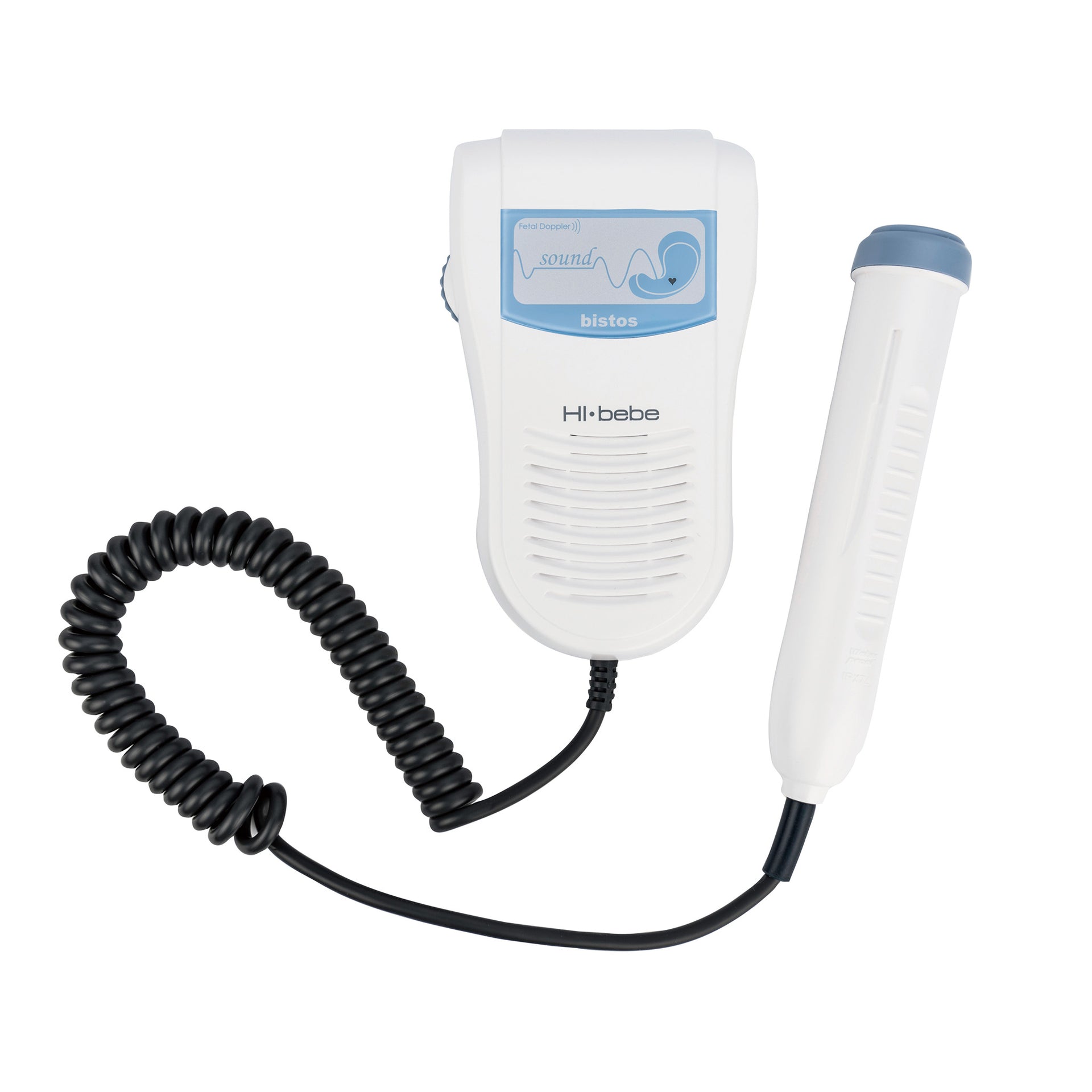

BT-200 Sound Fetal Doppler

BT-200 Sound Fetal Doppler is a portable and user-friendly device designed for monitoring fetal heart rates during pregnancy. It features high-sensitivity Doppler technology, providing clear audio output and visual display options to enhance the user experience. This device is ideal for both clinical and home use.

Key Features

• High-Sensitivity Doppler Probe: Available in 2 MHz and 3 MHz frequencies for optimal performance.
• Compact and Lightweight: Designed for easy handling and portability.
• Ergonomic Design: Comfortable to hold and operate for extended periods.
• Large Display: Clear and easy-to-read screen for monitoring fetal heart rates.
• Clean Sound Quality: High-quality audio output for accurate fetal heart monitoring.
• Long Continuous Use: Up to 6 hours of continuous operation on battery power.
• Variable Display Options: Choose between Color OLED, Mono LCD, or no display.
• Optional Waterproof Probe: For enhanced versatility and ease of use in different environments.

Specifications

• Power Supply:
  • 1.5V AA batteries x 2
  • Battery life: Approximately 360 minutes (6 hours)
• Heart Rate Range: 50 to 240 bpm ± 2%
• Ultrasound Frequency: 2 MHz / 3 MHz
• Ultrasound Intensity: <10 mW/cm²
• Audio Output: 1.2W (Built-in loudspeaker)
• Low Battery Display: Alerts users when battery power is low.
• Signal Quality Display: Indicates the quality of the Doppler signal.
• Auto Shut Off: Device automatically shuts off after 1 minute of inactivity to save battery.
• PC Interface: Compatible with sound card (BCM-200) for data transfer and analysis.

Accessories

• Waterproof Probe: Optional accessory for use in various conditions.
• Carrying Case: For safe transport and storage of the device.
• Gel (60ml): Ultrasound gel for optimal performance during use.
