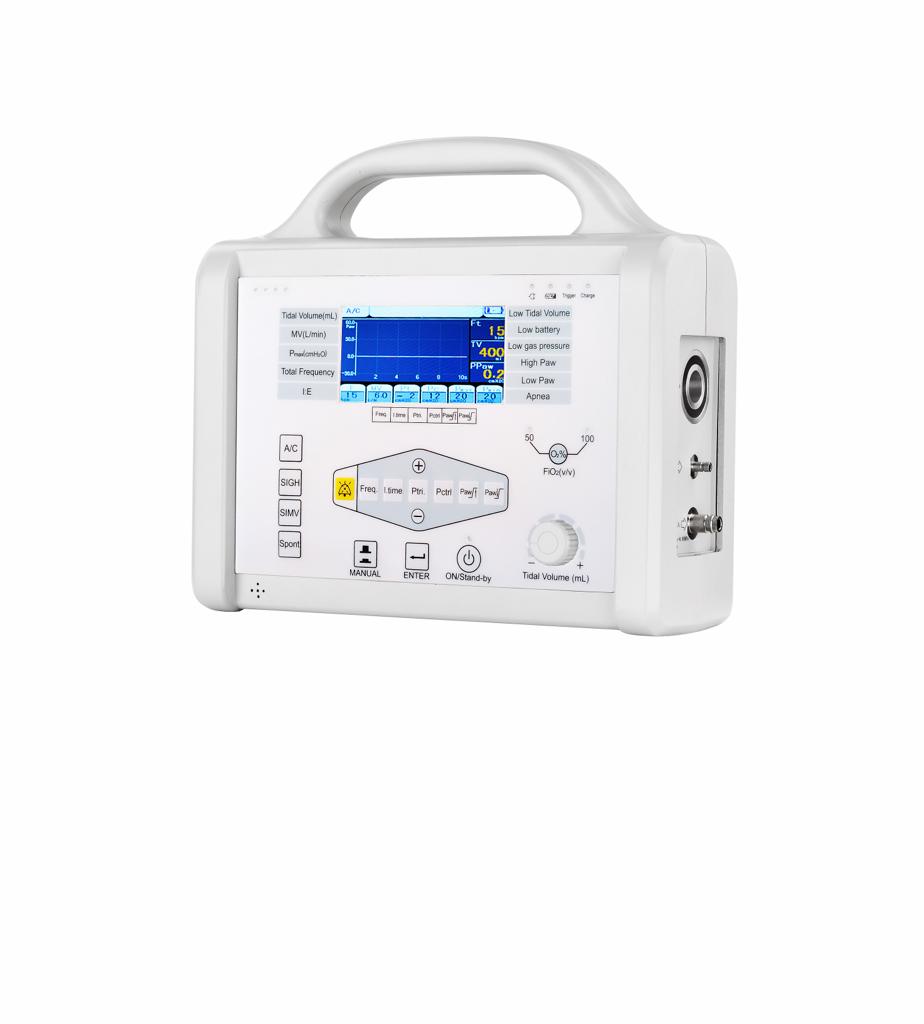

PEV-08 EMERGENCY AND TRANSPORT VENTILATOR

PEV-08 is a compact and portable emergency and transport ventilator designed for use in critical care settings. It provides comprehensive monitoring and ventilation capabilities, making it suitable for a variety of emergency medical situations. Its lightweight and durable design ensure easy transport and operation.

Key Features

• Monitoring Parameters:

  • Tidal Volume
  • Peak Airway Pressure
  • Minute Ventilation Volume
  • Total Ventilation Frequency
  • Airway Pressure Waveform
  • I:E Ratio
  • Battery Level

• Alarm Parameters:

  • Apnea
  • Airway Pressure Upper Limit
  • Airway Pressure Lower Limit
  • Low Tidal Volume
  • Low Battery
  • Low Gas Pressure

• Ventilation Modes:

  • Multiple ventilation modes available to accommodate various patient needs
  • Manual button for use during CPR

• Display:

  • LCD display for clear visualization of parameters and settings

• Alarms:

  • Multiple visual and audible alarms for enhanced safety and monitoring

• Design:

  • Compact, portable, and lightweight (2.5 kg)
  • Durable construction for use in emergency environments

• Control:

  • Electro-pneumatically controlled with time pressure switching
  • Micro-processor monitoring for accurate and reliable operation

Technical Specifications

• Breathing Modes:

  • A/C (Assist/Control)
  • A/C + SIGH (Sigh breaths)
  • SIMV (Synchronized Intermittent Mandatory Ventilation)
  • SPONT (Spontaneous)
  • MANUAL (Manual mode)

• Tidal Volume Range: 30-2400 ml

• Maximum Ventilation Volume: >18 L/min

• Oxygen Concentration: 50%, 100%

• Ventilation Frequency: 2-80 bpm

• Inspiratory Time: 0.2-6 seconds

• I:E Ratio: 3:1 to 15

• Safety Airway Pressure: <6 kPa

• Trigger Pressure: 0 to -20 cmH2O

• SIGH (Deep Breath): Delivered once per 100 breath cycles at 1.5 times the tidal volume

• SIMV Frequency: 1-40 bpm

Power Specifications

• AC Power: 110-240V, 50/60Hz
• Battery: Lithium rechargeable battery, 14.8V, 2200mAh

Dimensions and Weight

• Dimensions: 266 x 244 x 100 mm
• Weight: 2.5 kg
