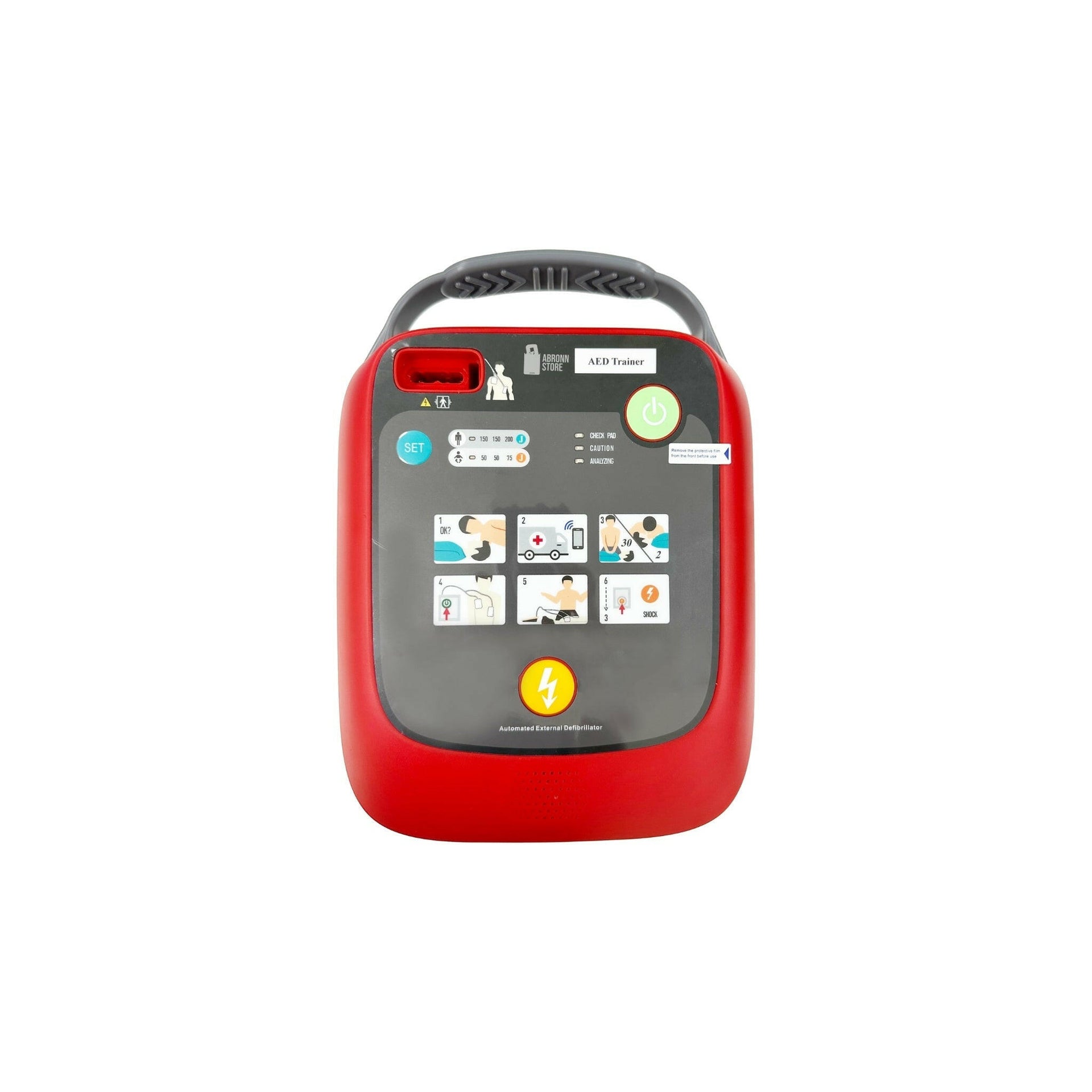

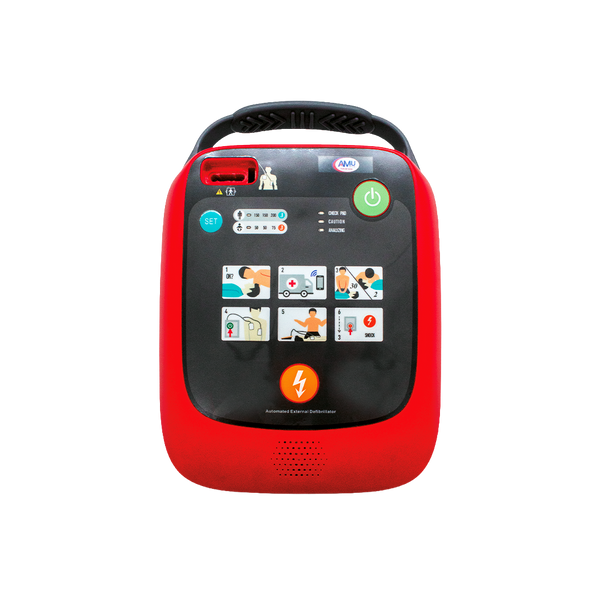

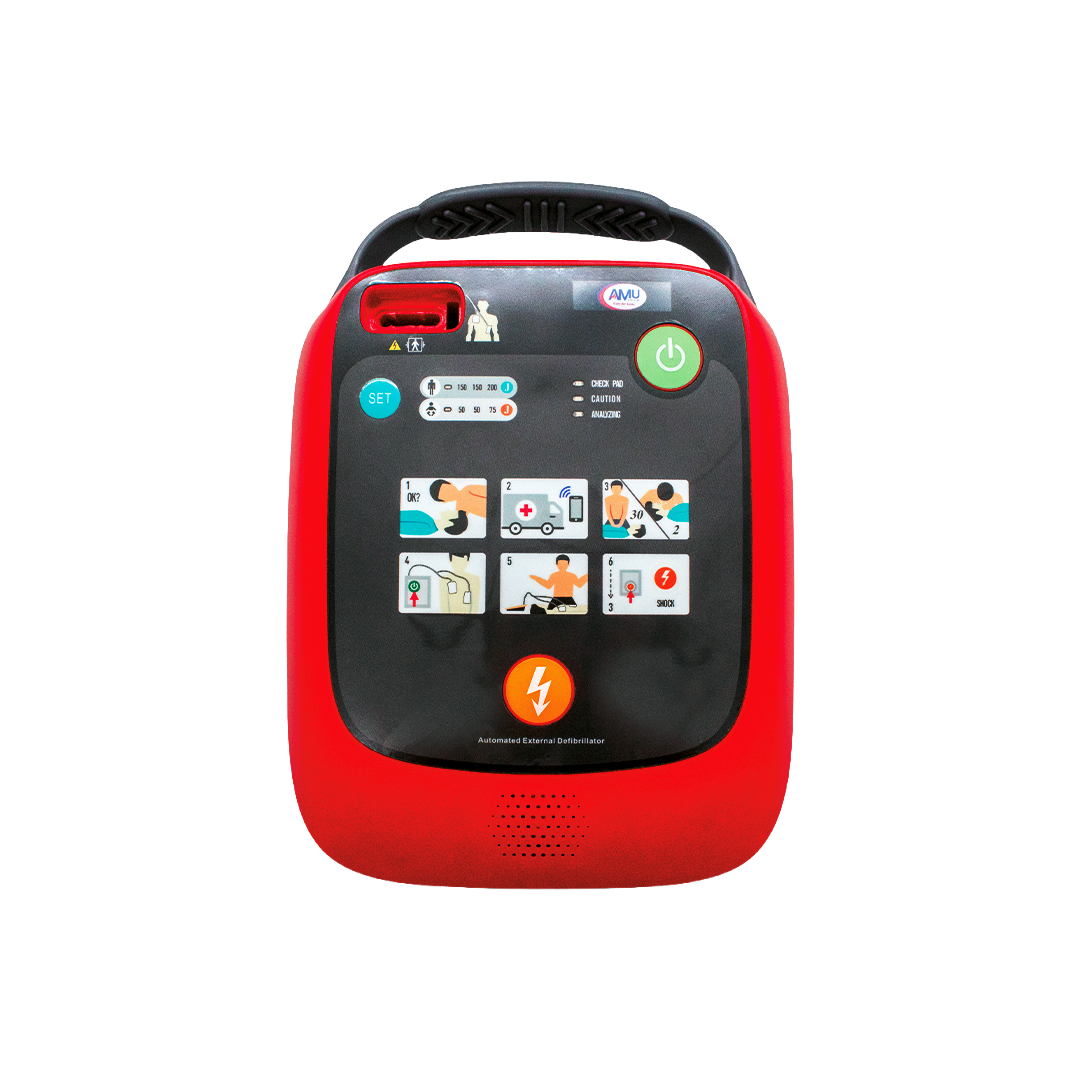

AED Defibrillator (HBO-07)

AED Defibrillator HBO-07 is a high-quality, life-saving device designed to improve outcomes for adults and children suffering from cardiac arrest. It is part of the chain of survival, providing immediate intervention to restore normal heart rhythms. The device is versatile, with multiple modes, clear voice prompts, and rugged construction to withstand various environments, ensuring it is always ready for use. (Please Note Without BBM)

Key Features:

1. Modes:

• Adult Mode (default mode): Delivers energy levels at 1500J, 1500J, 2000J.
• Pediatric Mode: Specifically designed for children, delivering 500J, 500J, 753J energy levels.

2. Clear Voice Prompts:

• Adjustable Volume: Choose from 5 levels of adjustable volume to suit your environment, whether it’s quiet or noisy.
• Multilingual Support: Supports up to 12 languages, with customizable language options available.

3. Self-Test Function:

• Regular Self-Testing: The device regularly tests itself to ensure it is always ready for use, including:
  • Daily Test
  • Monthly Test

4. Special Impedance Compensation Technology:

• Adaptive Energy Delivery: The device adjusts the delivered energy based on the patient impedance, measuring a range from 20 ohms to 2000 ohms to ensure effective treatment.

5. Durability & Rugged Construction:

• Environmental Readiness: The AED is designed to operate in harsh environments, with high-standard particle and waterproof ingress (IP55 rating).
• Operating Conditions: It can be used in environments with temperatures ranging from 0°C to 50°C.
• Storage and Transport: Can be safely stored and transported in conditions from -20°C to 55°C.
• Shock and Drop Tolerance: Built to withstand drop and shock abuse as per IEC 60601-1-12 standards.

6. LCD Screen and Visual Indicators:

• LCD Screen Size: 3.5 inches with 320 x 240 resolution for clear visual feedback.
• Waveform Display: Displays the biphasic truncated exponential waveform during shock administration.
• Energy Level: Maximum energy output of 200 Joules.
• Voice and Visual Indicators: Provides both voice prompts and LED indicators for clear guidance during use.

7. Performance:

• Charge Time: Less than 7 seconds to 150J, and less than 3 seconds to 753J in pediatric mode.
• Analysis Time: Less than 10 seconds for 2000J in adult mode.
• Button Controls: Simple controls with three buttons:
  • ON/OFF
  • Shock
  • Set (for configuring settings)

8. Battery & Pads:

• Battery Type: Non-rechargeable LiMnO2 12V, 2.8Ah battery.
• Pads: Disposable adult pads and pediatric pads for different patient age groups.

New Features:
- PC software integration
- ECG Event records and Instrument checkups using PC Software
- Voice Prompts Available in ARABIC
- User Manual Available in ARABIC

Specifications:

• Modes: Adult and Pediatric
• Screen Size: 3.5-inch Color LCD
• Waveform: Biphasic Truncated Exponential
• Energy Levels: 200 Joules maximum
• Voice Prompt Languages: Multiple (up to 12 languages)
• Indicators: Color LCD and LED lights
• Charge Time: Less than 7 seconds (adult), less than 3 seconds (pediatric)
• Operating Temperature: 0°C to 50°C
• Humidity: 15% to 95% relative humidity (non-condensing)
• Pressure: 500 hPa to 1060 hPa
• Storage Temperature: -20°C to 55°C
• Ingress Protection: IP55 (with battery installed)
• Drop/Impact Tolerance: IEC 60601-1-12 compliant
• Battery: LiMnO2, 12V, 2.8Ah (Non-rechargeable)
• Pads: Disposable adult and pediatric pads
