LS-DF05 Automatic External Defibrillator (AED) - Laufer-Schneller

The LS-DF05 Automatic External Defibrillator is a portable, public-access medical device designed to treat individuals experiencing sudden cardiac arrest. It automatically diagnoses cardiac arrhythmias and delivers a Biphasic Truncated Exponential (BTE) waveform shock when necessary.
The device features a three-step foolproof operation guide, leading users through the rescue and defibrillation process with clear visible and audible instructions, in full accordance with AHA/ERC guidelines. Lightweight and compact, the LS-DF05 is built for fast, confident emergency response,  anywhere it's needed.

Main Features
•    5-Year Warranty for long-term peace of mind
•    Simple 3-step guided rescue process — anyone can use it
•    One universal pad set for adults & children — lowers replacement cost
•    Real-time voice, visual & CPR guidance for confident emergency response
•    Remote fleet monitoring & GPS tracking — ideal for institutions managing multiple units
•    Rugged, weatherproof design — reliable indoors or outdoors
•    Ultra-lightweight & portable — easy to carry anywhere

Specification
•    Model: LS-DF05
•    Shock Output: 200J (Adult) / 50J (Pediatric)
•    Data Storage: Up to 1000 events ECG storage (24-hour)
•    Connectivity: 4G Remote Management (optional), GPS
•    Battery: High-capacity, rechargeable (optional)
•    Shock Capacity: Up to 200 shocks per battery
•    Pad Type: Universal electrode pads (Adult/Pediatric, optional)
•    Screen: 7" HD LCD Display
•    Protection Rating: IP54 (Dustproof & Waterproof)
•    Net Weight: 2.1 kg
•    Gross Weight: 3.7 kg
•    External Dimensions: 410(L) x 355(W) x 158(H) mm
•    Internal Dimensions: 220(L) x 285(W) x 90(H) mm

What's Included
•    LS-DF05 Automatic External Defibrillator – Main Unit (5-year warranty)
•    Rechargeable Battery Pack
•    Universal Adult/Pediatric Electrode Pads

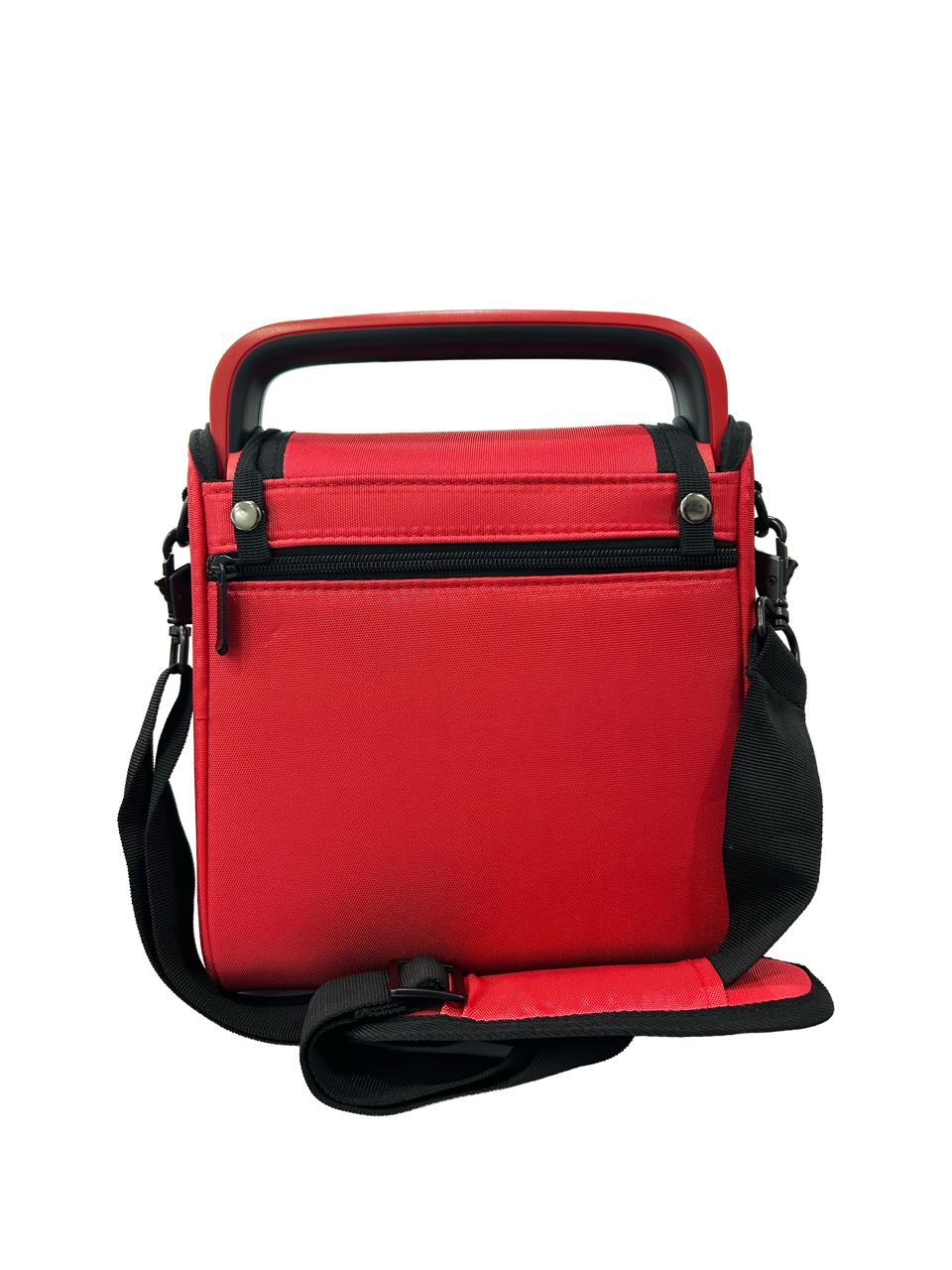

•    Carrying/Storage Case
•    User Manual
