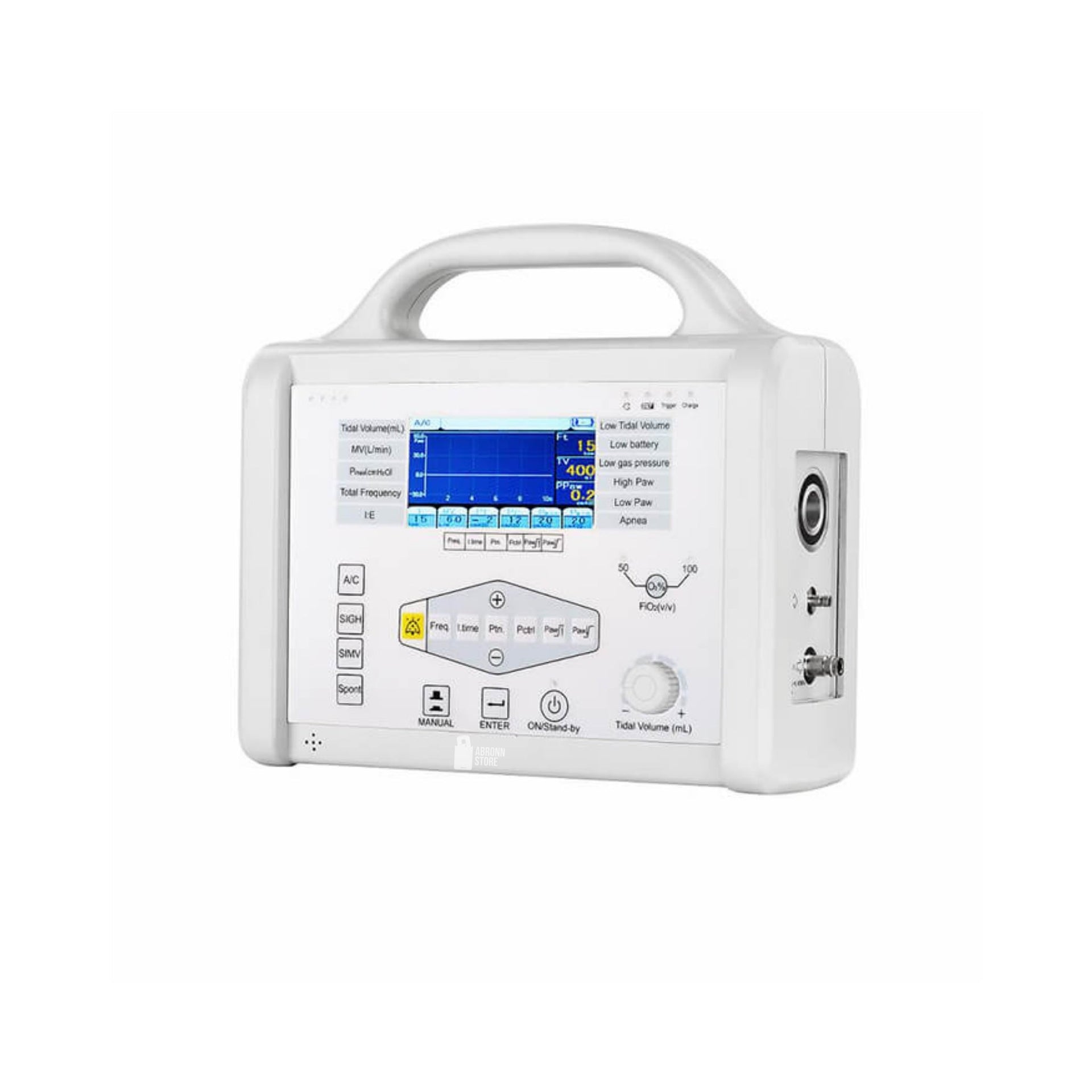

HFS3100A VENTILATOR

HFS3100A Ventilator is a versatile, high-performance respiratory support system designed for ambulances, emergency departments, ICUs, operating rooms, and hospital wards. With pneumatic-driven, electric-controlled operation, it offers precise, reliable ventilation for both adults and children in critical care situations.

Key Features & Benefits

✅ Invasive & Non-Invasive Ventilation

• Supports both intubated and mask-based respiratory assistance for flexible patient care.

✅ Multiple Ventilation Modes

• A/C, A/C+SIGH, SIMV, SPONT, and MANUAL for customized respiratory therapy.

✅ High-Resolution TFT LCD Screen (4.3")

• Real-time monitoring of ventilation settings and patient status.

✅ Adjustable Tidal Volume & Oxygen Concentration

• Tidal Volume: 30-2400ml (continuously adjustable)
• Minute Ventilation Volume: ≥18L/min
• Oxygen Concentration: 50% or 100%

✅ Advanced Breathing Support Functions

• Trigger Sensitivity: -20.0 to 0.0 cmH₂O
• PEEP Control: -20 to 0 cmH₂O
• I:E Ratio: 3:1 to 1:5 for enhanced patient adaptation
• Backup Ventilation Frequency: 2-80 bpm

✅ Emergency & Critical Care Ready

• Apnea Mode: Auto ventilation activation after 20s of no spontaneous breathing.
• SIGH Mode: Provides deep inhalation every 100 cycles to prevent alveolar collapse.
• Safety Airway Pressure: ≤60 cmH₂O for patient protection.

✅ Reliable Alarm System for Patient Safety

• Alerts for low gas pressure, low battery, airway pressure limits, low tidal volume, apnea, power failure, and system faults.

✅ Lightweight & Portable Design

• Weight: Only 2.5kg, ideal for use in ambulances and mobile healthcare.
• Dimensions: 266 × 100 × 244mm for compact storage and transport.

✅ Long Battery Life & Multiple Power Sources

• Internal Rechargeable Lithium Battery (14.8V, 2200mAh) – Up to 5 hours of operation.
• Supports AC 110-240V / 50-60Hz & DC car power cord for uninterrupted use.

✅ Durable & Reliable in Various Environments

• Operating Temperature: 5~50°C
• Humidity Range: 10%-80%
• Atmospheric Pressure: 70-106 kPa

Why Choose the HFS3100A Ventilator?

✔ Perfect for Emergency & ICU Use – Optimized for ambulances, hospitals, and home care.
✔ Comprehensive Safety Features – Advanced alarm system and automatic apnea ventilation.
✔ Compact, Lightweight & Portable – Easy to transport and store for rapid deployment.
✔ Long Battery Life & Multi-Power Support – Reliable operation in all conditions.
✔ Suitable for Adults & Children – Versatile, adaptable respiratory support.

An Essential Life-Saving Device for Emergency & ICU Care

The HFS3100A Ventilator is designed to deliver safe, precise, and reliable respiratory support, ensuring optimal patient care in emergency and critical care settings.
