With advanced technology and versatile ventilationfunctions, 510S respiratory work station meets thebreathing requirements of adult and pediatric.

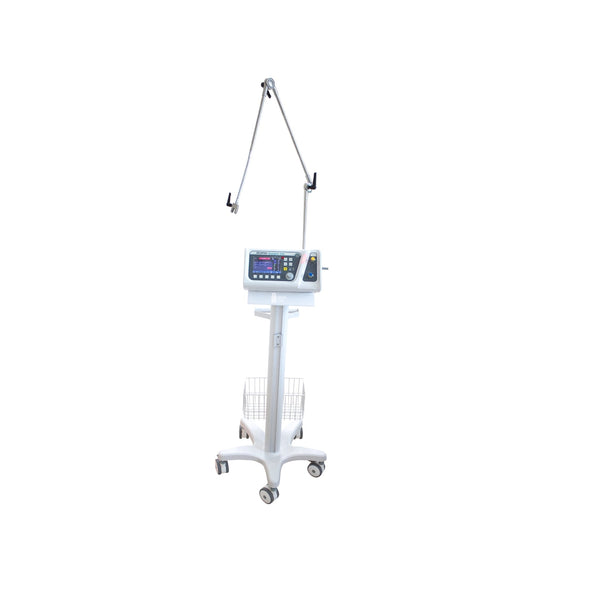

Shangrila 510S Integratd Respiratory Work Station
Complete Ventilation Modes
- The device hosts six ventilation modes.
- Besides the conventional Volume-Contralled ventilation‘mode, it also has Pressure-Controlled ventilation mode, SIMV and CPAP Modes
- The Machine can provide a precise todal volum
- it also provide insperation hold and manual breath, one button operation and is thus very conveniant
Ideal O2 Delivery
• With its advanced technology, the range of FiO2 con be set from 40% to 100%.
• Furthermore, this range con be adjusted continuously.
Clinical Enhancements
• Manual breath
• Inspirotory hold
• Alarm silence
• Pre-use test
- Supply Gas O, 0.25~0.6 MPa
- Power Supply: AC100~240 V, 50 Hz/60 Hz, 65 VA
- Screen Size: 5" LCD Screen
- Maximum Security Pressure: 8 KPa
- Compliance: 4ml /100 Pa
- Dimension (WxDxH): 168 mm x 156 mm x 300 mm
- Battery Operating Time: Approx. 4.5H
- Weight: 3.2 kg (Main unit)
- 8 kg (Main unit & Accessories)
