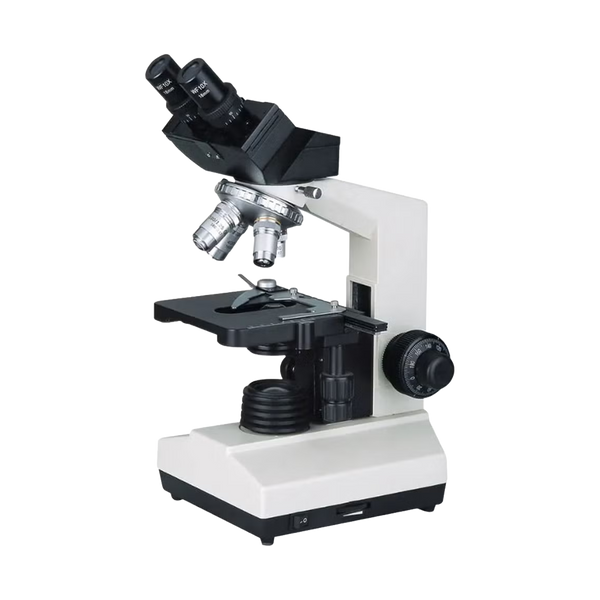

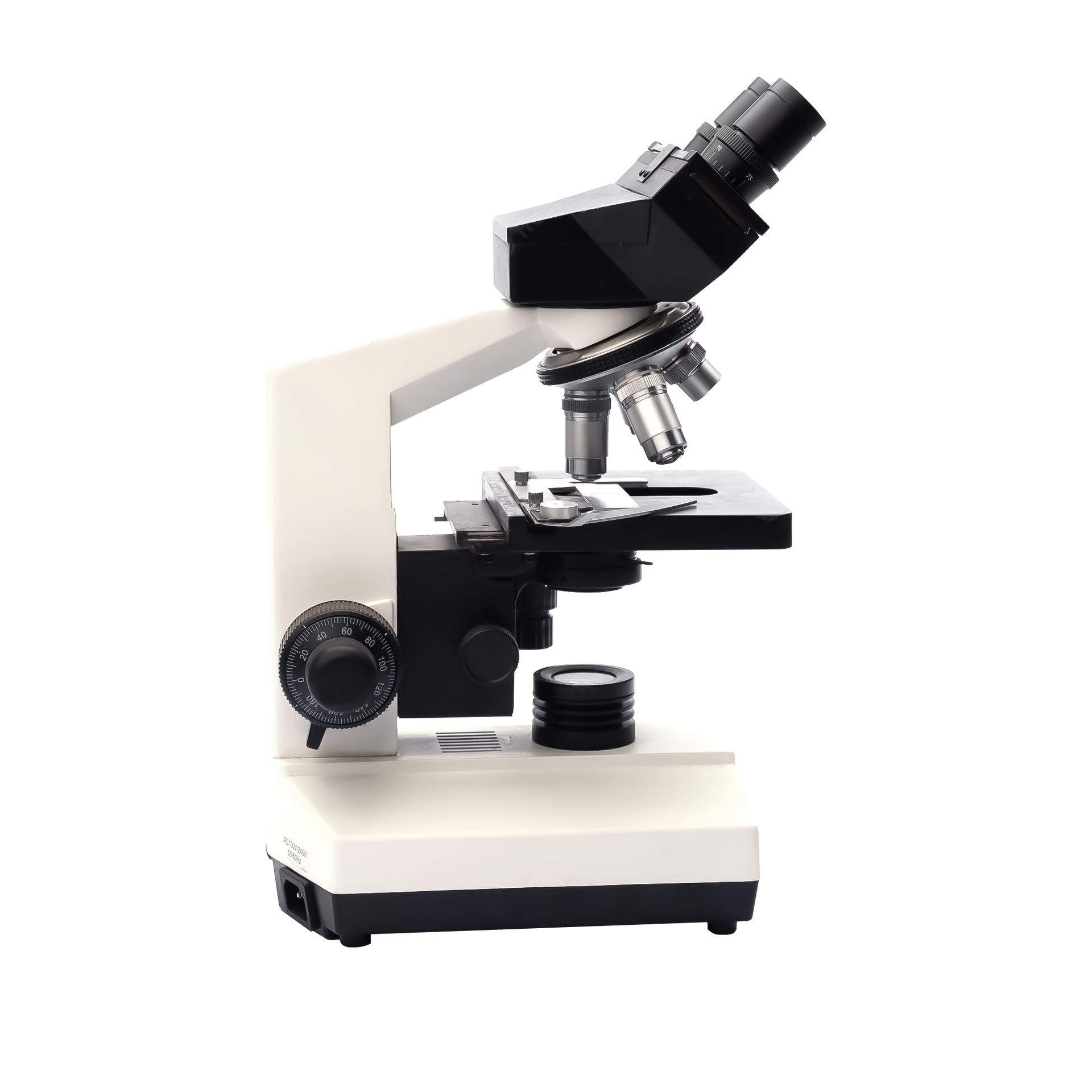

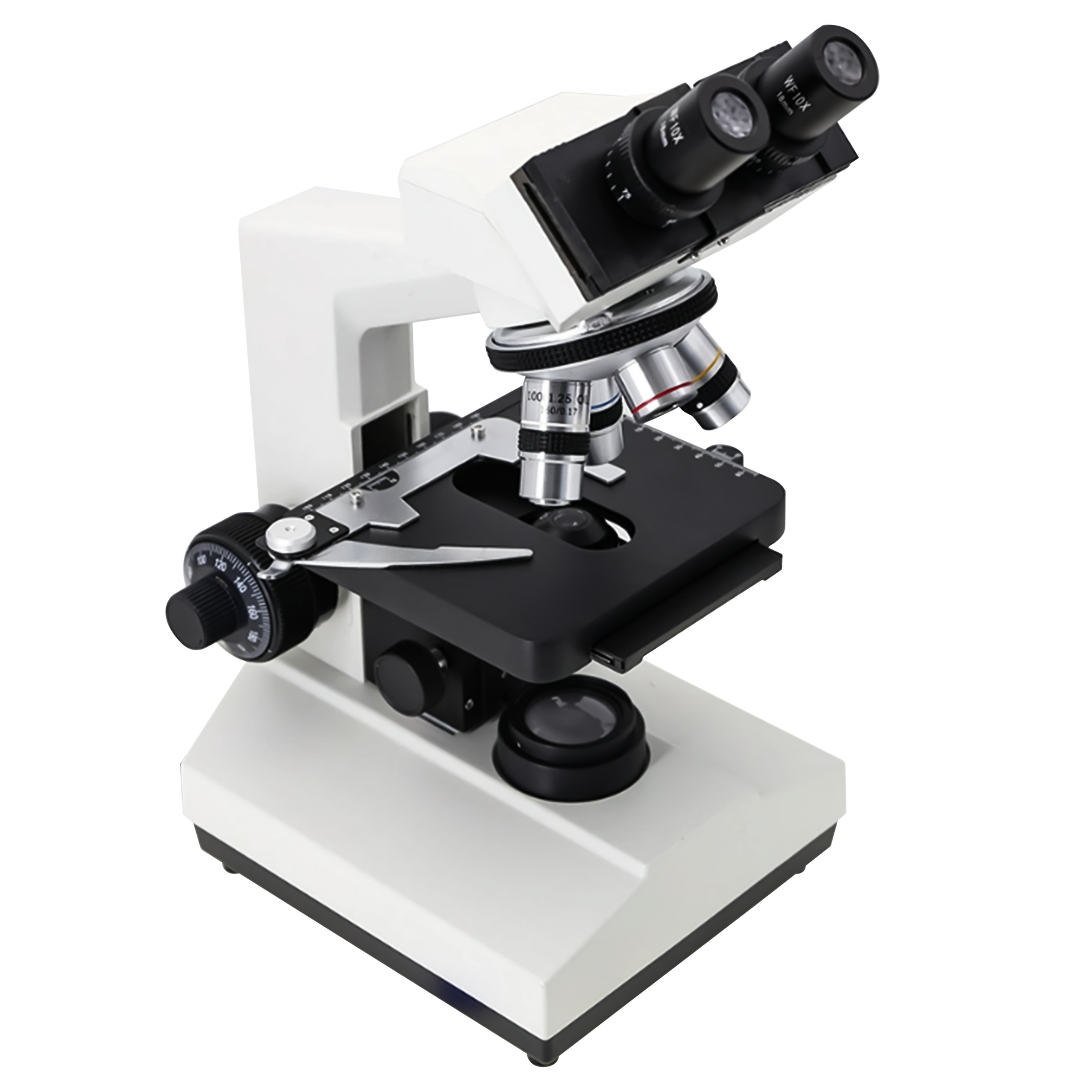

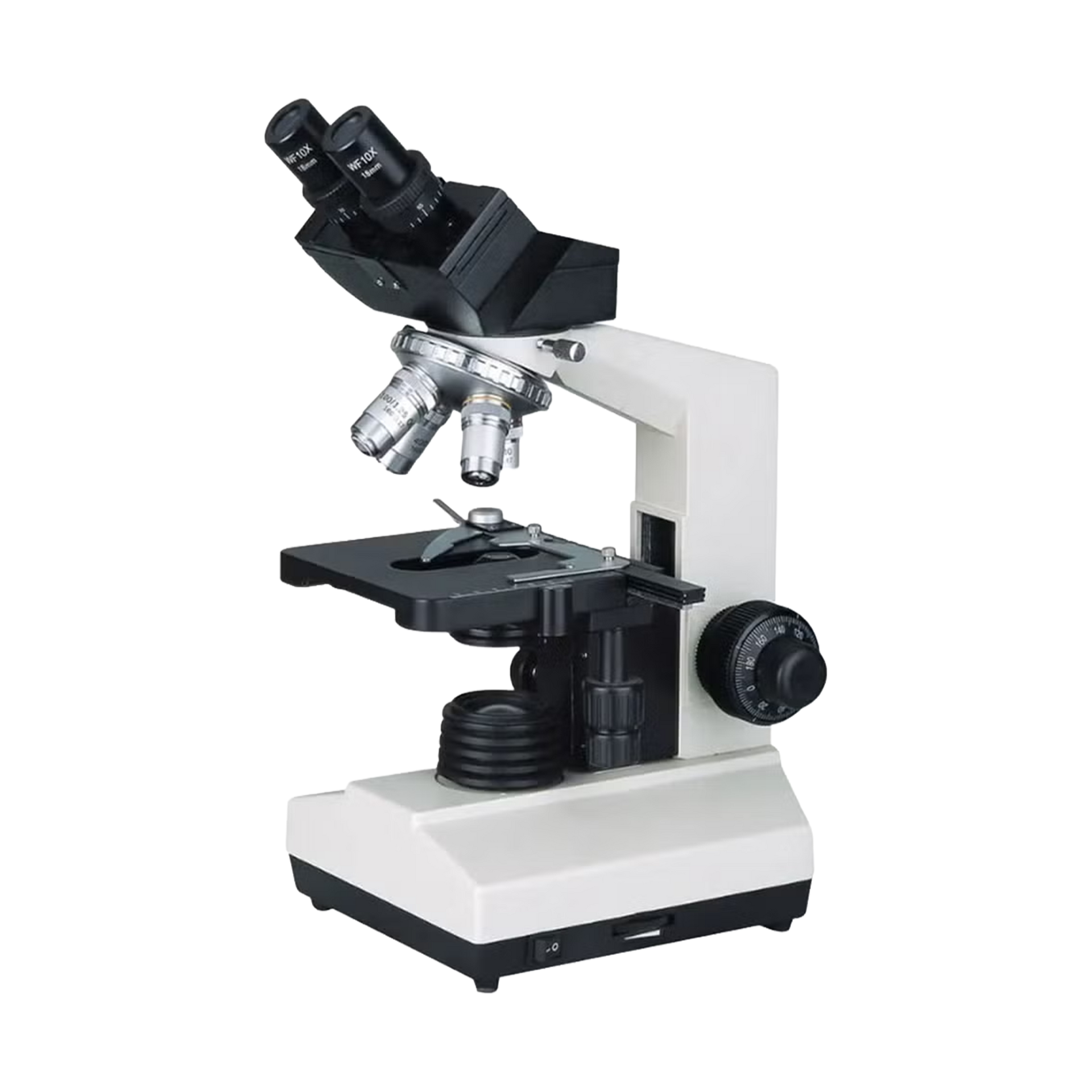

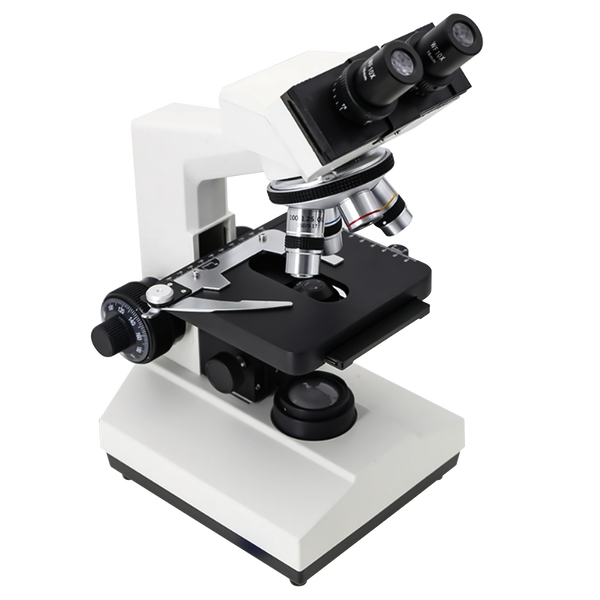

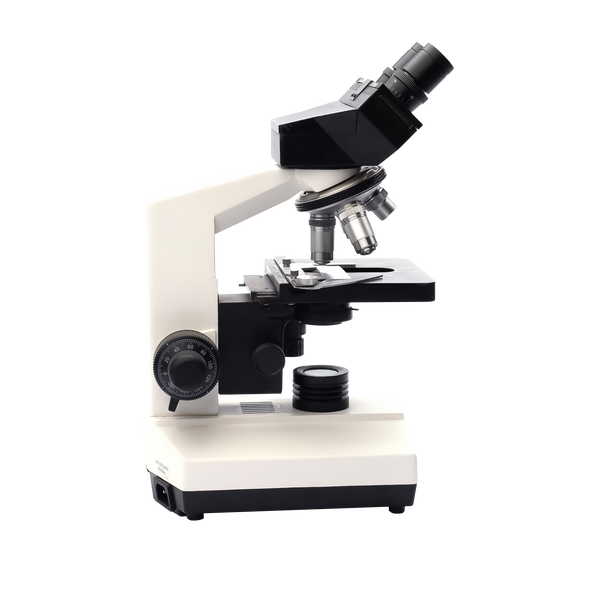

Binocular Microscope (XSZ-107bn)

The XSZ-107BN Binocular Microscope is a scientific instrument designed to magnify and observe small biological specimens that are not visible to the naked eye. It utilizes a combination of lenses and illumination sources to produce enlarged images of microscopic objects. This microscope is widely used in various fields, including biology, medicine, research, and education, to study the structure and behavior of cells, tissues, and microorganisms.

Key Features

• Wide Field Eyepiece (Ocular): Provides a larger viewing area for enhanced observation.

• Achromatic Objective Lenses: Minimize chromatic aberration, allowing for clearer and more accurate images of specimens.

• Mechanical Tube Length: 160 mm, ensuring compatibility with standard accessories and optics.

• Object to Primary Image Distance: 195 mm, facilitating comfortable viewing and manipulation of specimens.

• Stage Size:

  • Size: 140 x 140 mm
  • Moving Range: 75 x 45 mm, allowing for easy positioning of slides.

• ABBE Condenser:

  • Numerical Aperture (NA): 1.25
  • Equipped with an iris diaphragm for controlling light intensity and improving image quality.

• Focal Range:

  • Coarse/Fine Focus: 30 mm, enabling precise adjustments for clear imaging.

• Illumination:

  • Type: 6V 20W halogen lamp
  • Feature: Adjustable brightness for optimal lighting conditions.

• Net Weight: 6.5 kg, making it stable yet portable for laboratory use.

• Dimensions (L x W x H): 185 x 270 x 400 mm, compact for easy storage and handling.

• Power Requirements:

  • Power: 20W
  • AC Input: 220V ± 22V or 110V, 50Hz ± 1Hz
  • Output: 25W, 1-6V, 1kHz ± 1.5kHz

Applications

• Biological Research: Ideal for studying cells, tissues, and microorganisms.
• Medical Laboratories: Used for diagnostic purposes and research.
• Educational Institutions: Essential for teaching microscopy and biological sciences.
• Quality Control: Employed in various industries for material inspection and analysis.

Advantages

• High-Quality Optics: Achromatic lenses provide clear and detailed images.
• Adjustable Illumination: Customizable lighting enhances specimen visibility and contrast.
• User-Friendly Design: Intuitive controls and ergonomic design facilitate ease of use.
