Introduction

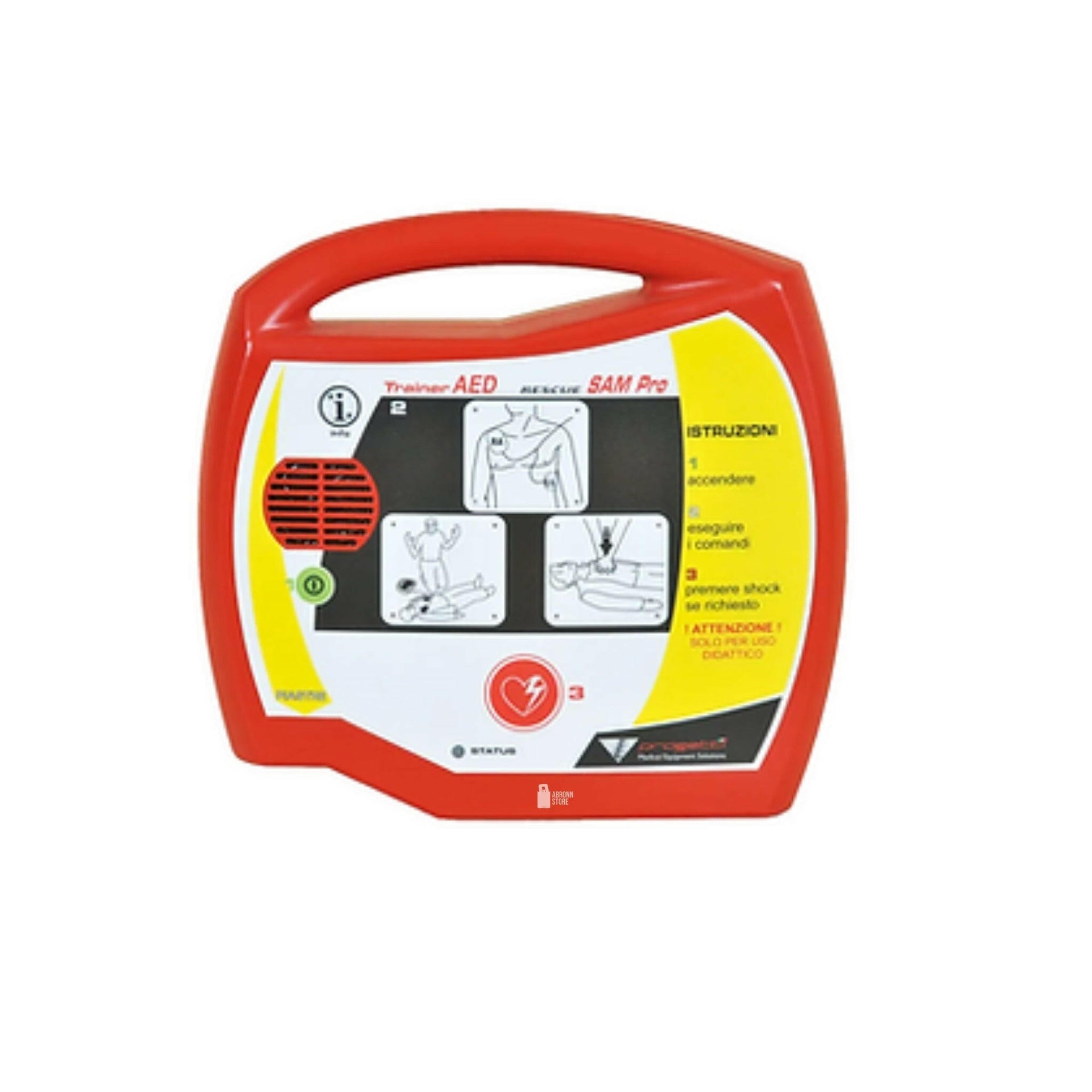

RESCUE SAM is tAED Machine created to support the operator during rescue maneuvers with simple and clear voice information as well as with light indicators.

- Small size light weight, a true battery-powered laptop.
- RESCUE SAM is created to intervene in situations of Ventricular Fibrillation (VF) and Ventricular Tachycardia (VT).

Specification:

WAVEFORM: BTE (biphasic truncated exponential type); impedance compensated

ENERGY:

• 200J fixed as new norms ERC 2015
• adult: nominal 200 J into a 50 Ω load
• infant/children: less than 50J using optional attenuated pediatric pads

SHOCK ENERGY ACCURACY: According to IEC EN60601-2-4
PROTOCOL: voice prompts and indicators guide user through protocol
PACEMAKER: detection and rejection
CHARGE CONTROL: automatic by software (arrhythmia detection system and charging control), Analysis time: about 6 seconds
CHARGE TIME FROM “SHOCK ADVISED”: <6 seconds, typical with new battery
VOICE INSTRUCTIONS: detailed voice messages guide responder through use of the defibrillator
CONTROLS: shock button, info-button, On/Off button
INDICATORS: LEDs (different colors), info-button CHARGE

COMPLETE INDICATOR:

• Voice prompts (press the shock red button)
• Flashing red shock button

DISARM: once charged, the RESCUE SAM disarms if:

• The SHOCK button is not pressed within 15 seconds after being armed, or
• The Power ON/OFF button is pressed to turn OFF, or
• The defibrillator pads are removed from the patient or the pads connector is disconnected

SHOCK DELIVERY: shock is delivered if the SHOCK button is pressed while the defibrillator is armed
SHOCK DELIVERY VECTOR: via adult defibrillator pads in the anterior-anterior (Lead II) position or via reduced-energy pediatric pads in the anterior-posterior position
PATIENT ISOLATION: type BF BATTERY: 12 Volt DC, 4.2 Ah, lithium manganese dioxide, disposable long-life
BATTERY CAPACITY: min.200 shocks or 4 hours of operating time continuous

AUTOMATED AND USER-ACTIVATED SELF-TESTS:

• Daily Self-tests: tests internal circuitry, waveform delivery system, battery capacity, and software.
• Battery Insertion Test: upon battery insertion, extensive automatic self-tests and user-interactive test check device readiness.

DATA RECORDING AND TRANSMISSION:

• Dedicated interface to download data
• Optional special battery pack for data transmission
• Data stored: first 60 minutes of ECG and the entire incident’s events and analysis decision.

CLASS OF PROTECTION: IP 54 (dust/water)

SIZE: 80x300x270 mm

WEIGHT: 2.2 kg with battery pack installed.
