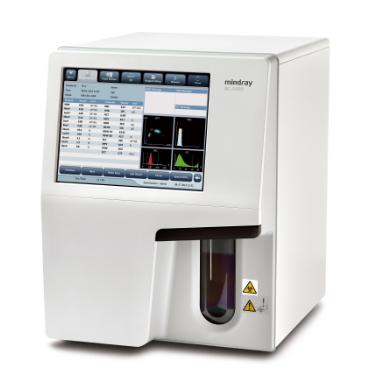

The BC-5000 is a sophisticated hematology analyzer designed for accurate and efficient blood analysis. It utilizes advanced technologies for counting and differentiating blood cells, making it an essential tool for clinical laboratories.
Technical Specifications
Principles:
- Impedance Method: Used for counting Red Blood Cells (RBC) and Platelets (PLT).
- Cyanide-Free Reagent: Employed for hemoglobin testing.
- Flow Cytometry (FCM): Combined with laser scatter and chemical dye methods for White Blood Cell (WBC) 5-part differential analysis and counting.
Parameters:
-
Total Parameters: 23 parameters including:
- WBC, Lym%, Mon%, Neu%, Bas%, Eos%
- Lym#, Mon#, Neu#, Eos#, Bas#
- RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT.
- Histograms: 3 histograms for WBC, RBC, and PLT.
- Scattergrams: 3 scattergrams for differential analysis.
Reagents:
- Diluent, DIFF lyse, LH lyse, probe cleanser.
Performance
| Parameter | Linearity Range | Precision | Carryover |
|---|---|---|---|
| WBC | 0-100 × 10^9/L | ≤ 2% (4-15 × 10^9/L) | ≤ 0.5% |
| RBC | 0-8 × 10^12/L | ≤ 1.5% (3.5-6.0 × 10^12/L) | ≤ 0.5% |
| HGB | 0-250 g/L | ≤ 1.5% (110-180 g/L) | ≤ 0.6% |
| PLT | 0-1000 × 10^9/L | ≤ 6.0% (100-149 × 10^9/L) | ≤ 1.0% (150-500 × 10^9/L) |
Sample Volume:
- Prediluted Mode: 20 µL
- Whole Blood Mode: 15 µL
- Capillary Whole Blood Mode: 15 µL
Throughput:
- Sample Processing: 40 samples per hour.
Display:
- Type: 10.4 inch TFT Touch Screen.
- Languages Supported: Chinese, English, French, Spanish, Portuguese, and Russian.
Data Storage Capacity:
- Up to 20,000 results, including numeric and graphical information.
Communication:
- LAN Port: Supports HL7 protocol.
- Interface: USB and LAN, supporting bi-directional Laboratory Information System (LIS).
Printout:
- Compatible with external thermal printers, laser printers, and inkjet printers, offering various printout formats and user-defined formats.
Operating Environment
- Temperature: 10°C to 30°C
- Humidity: 20% to 85%
- Air Pressure: 70 kPa to 106 kPa
Power Requirements
- Voltage: 100V to 240V
- Frequency: 50Hz/60Hz
Dimensions and Weight
- Dimensions (D x W x H): 400 mm x 320 mm x 410 mm
- Weight: 24 kg
