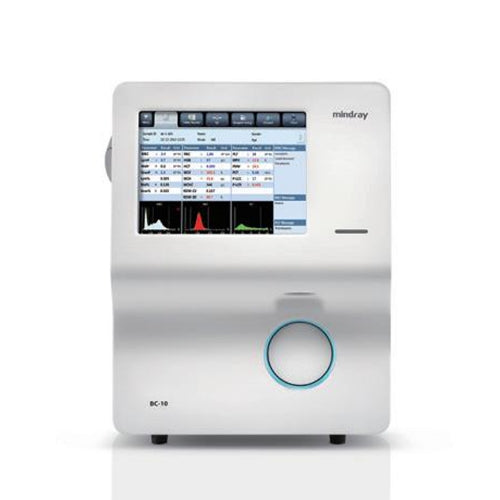

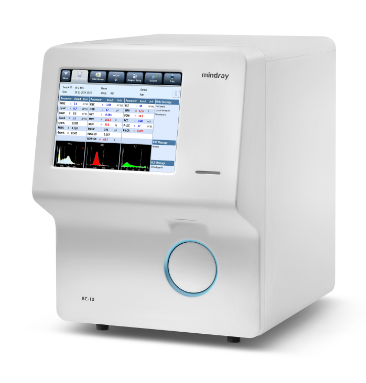

3-parts Hematology Analyzer BC-10

The BC-10 is an advanced hematology analyzer designed for accurate blood analysis, utilizing impedance methods for counting various blood components. It is suitable for clinical laboratories and healthcare facilities, providing essential data for diagnosing and monitoring patient health.

Technical Specifications

Principles:

• Counting Method: Impedance method for White Blood Cells (WBC), Red Blood Cells (RBC), and Platelets (PLT).
• Reagent: Uses cyanide-free reagent for hemoglobin testing.

Parameters:

• Total Parameters: 20 parameters including:
  • WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%
  • RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR.
• Histograms: 3 histograms for WBC, RBC, and PLT.

Sample Volume:

• Prediluted Mode: 20 µL
• Whole Blood Mode: 9 µL

Performance

Dimensions and Weight

• Weight: 20 kg
• Dimensions:
  • Depth: 410 mm
  • Width: 300 mm
  • Height: 400 mm

Interface and Connectivity

• USB Ports: 4 USB ports for connecting external devices (printer, software upgrades, barcode reader, external Wi-Fi, keyboard, and mouse).
• LAN Port: 1 LAN port supporting HL7 protocol for communication.
• Support: Bi-directional Laboratory Information System (LIS).

Printout

• Type: Thermal recorder.
• Paper Width: 50 mm.
• Formats: Various printout formats available.

Operating Environment

• Temperature: 15°C to 30°C
• Humidity: 10% to 90%
• Air Pressure: 70 kPa to 106 kPa

Power Requirements

• Voltage: 100V to 240V ± 10%
• Power Consumption: 180 VA
• Frequency: 50Hz/60Hz ± 1Hz

Display and User Interface

• Display Type: 8.4 inch TFT Touch Screen.
• Multi-language Support: Chinese, English, Spanish, Portuguese, Russian, French, Bahasa Indonesia.

Data Storage Capacity

• Up to 50,000 results, including numeric and graphical information.

Throughput

• Sample Processing: 30 samples per hour.
