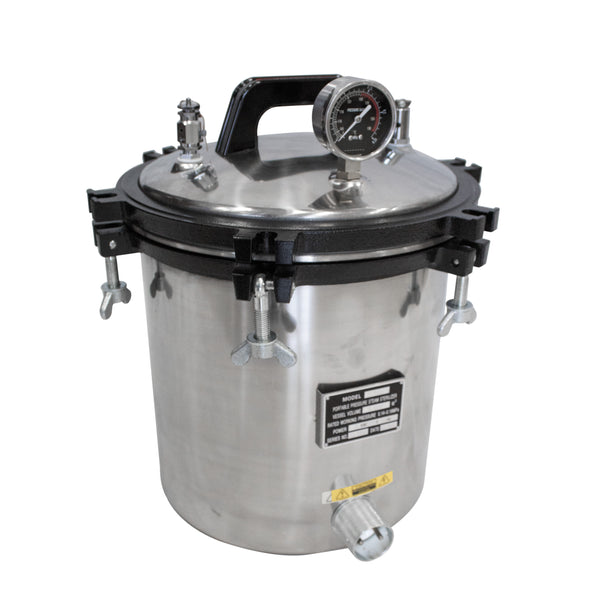

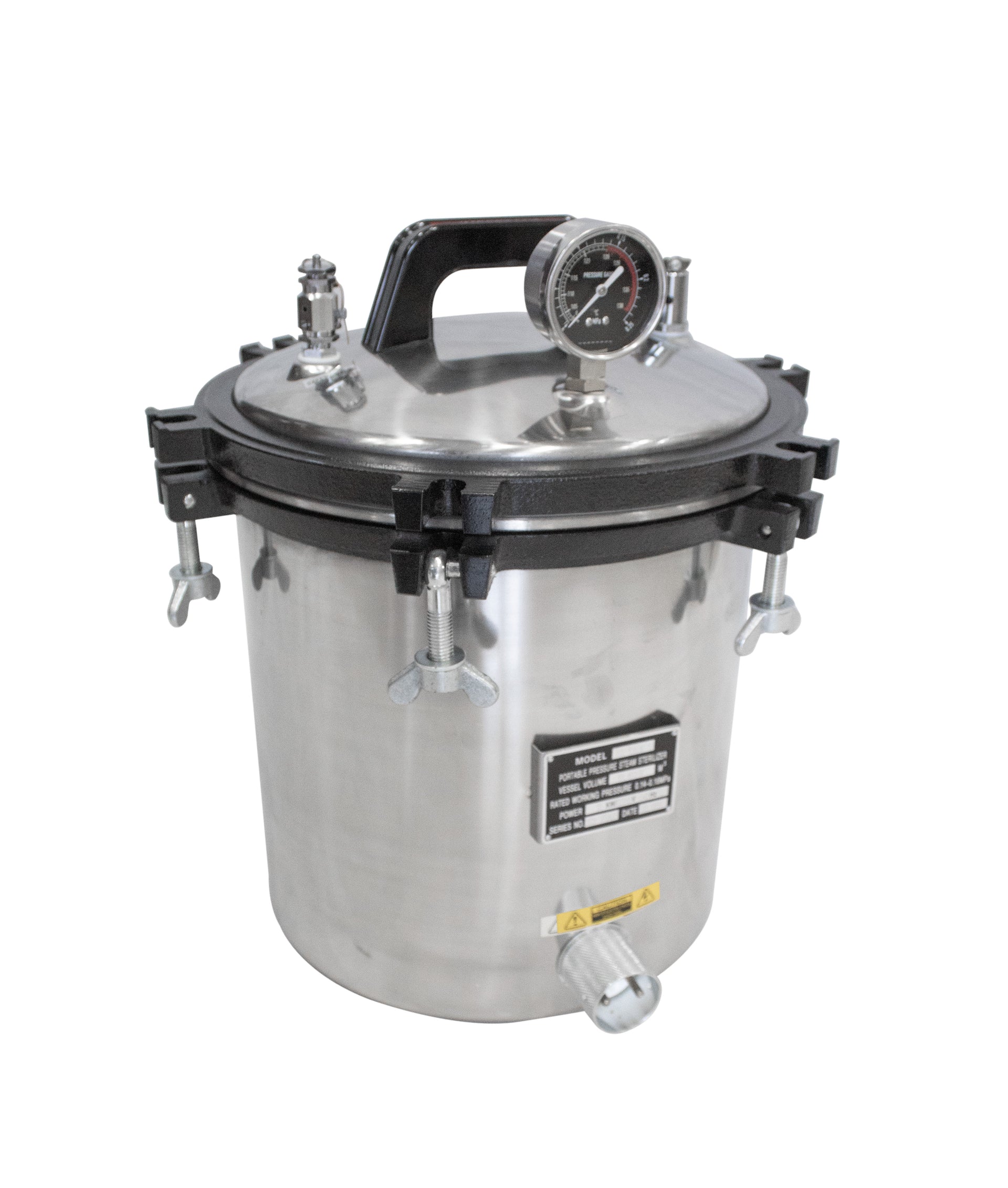

Portable Pressure Steam Sterilizer (Autoclave Sterilizer 18L)

Applications

• Medical Facilities: Hospitals, public health centers, clinics, and health stations.
• Industrial Use: Factories and mines for sterilizing equipment.
• Research Institutes: Scientific research applications requiring sterilization of various items.
• General Use: Sterilizes medical equipment, surgical dressings, glass utensils, solutions, and substrates.

Key Specifications

• Volume of Sterilizing Drum: 0.018 m³
• Rated Working Pressure: 0.14 - 0.16 MPa
• Maximum Safe Pressure: 0.165 MPa
• Voltage: AC 220V, 50Hz
• Power of Electro-Thermal Tube: 2 kW
• Gross Weight: 16 kg
• Product Dimensions (L x W x H): 41 x 41 x 43 cm

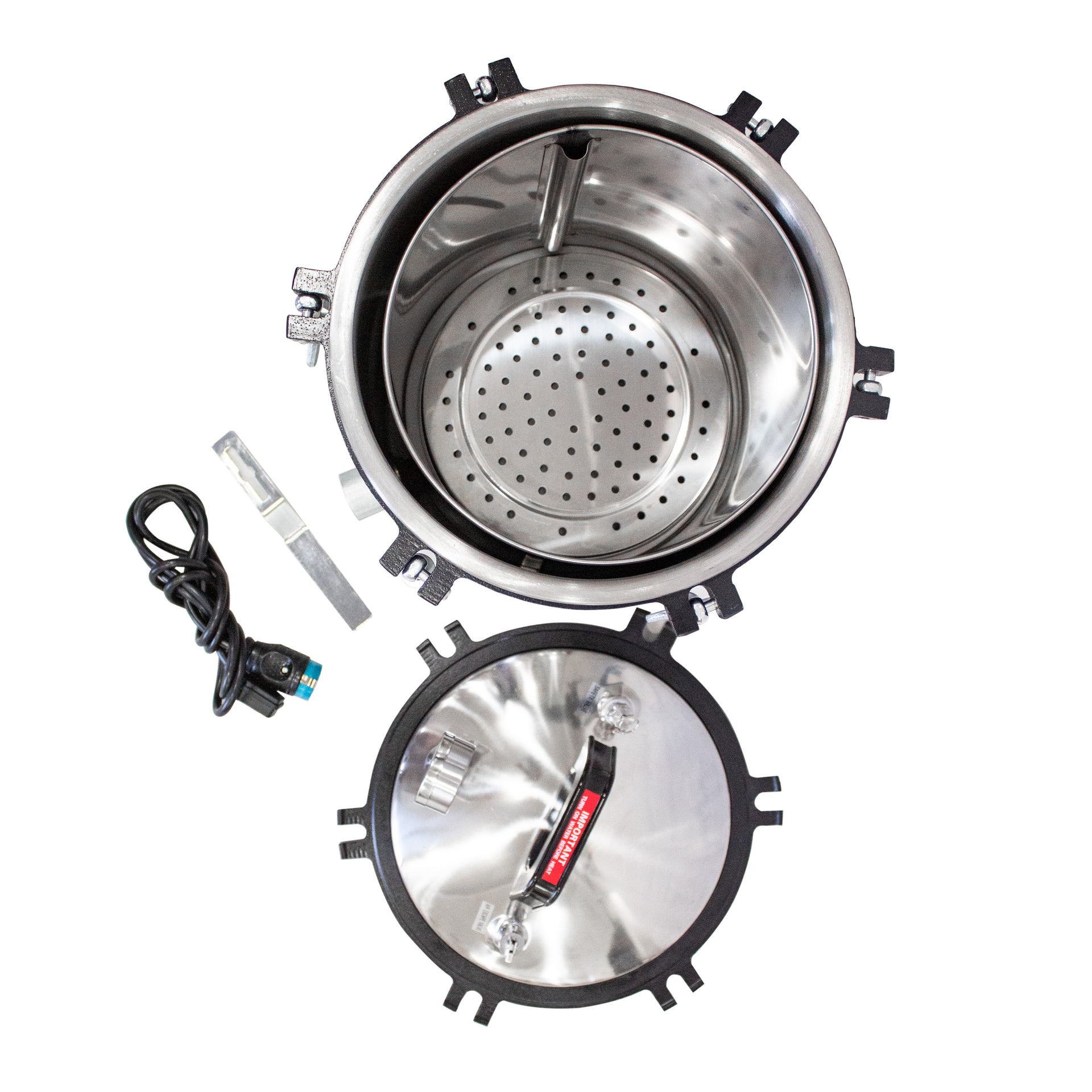

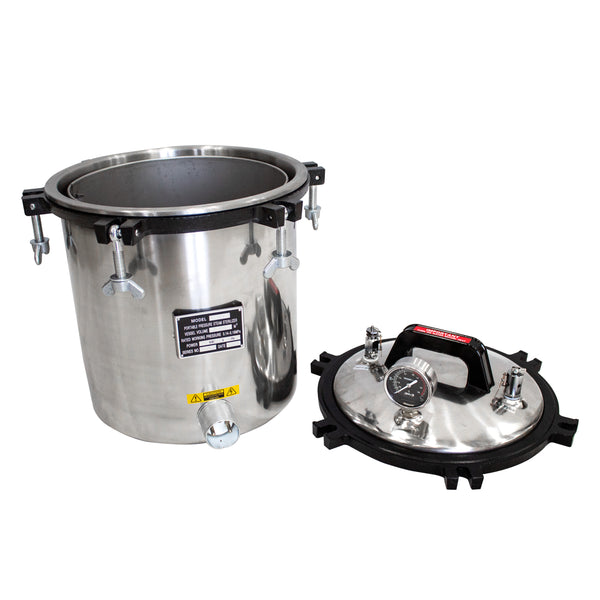

Structure Components

• Safety Valve: Automatically releases pressure to ensure safety.
• Pressure Gauge: Displays current pressure levels.
• Air Releasing Valve: Facilitates the release of air from the chamber.

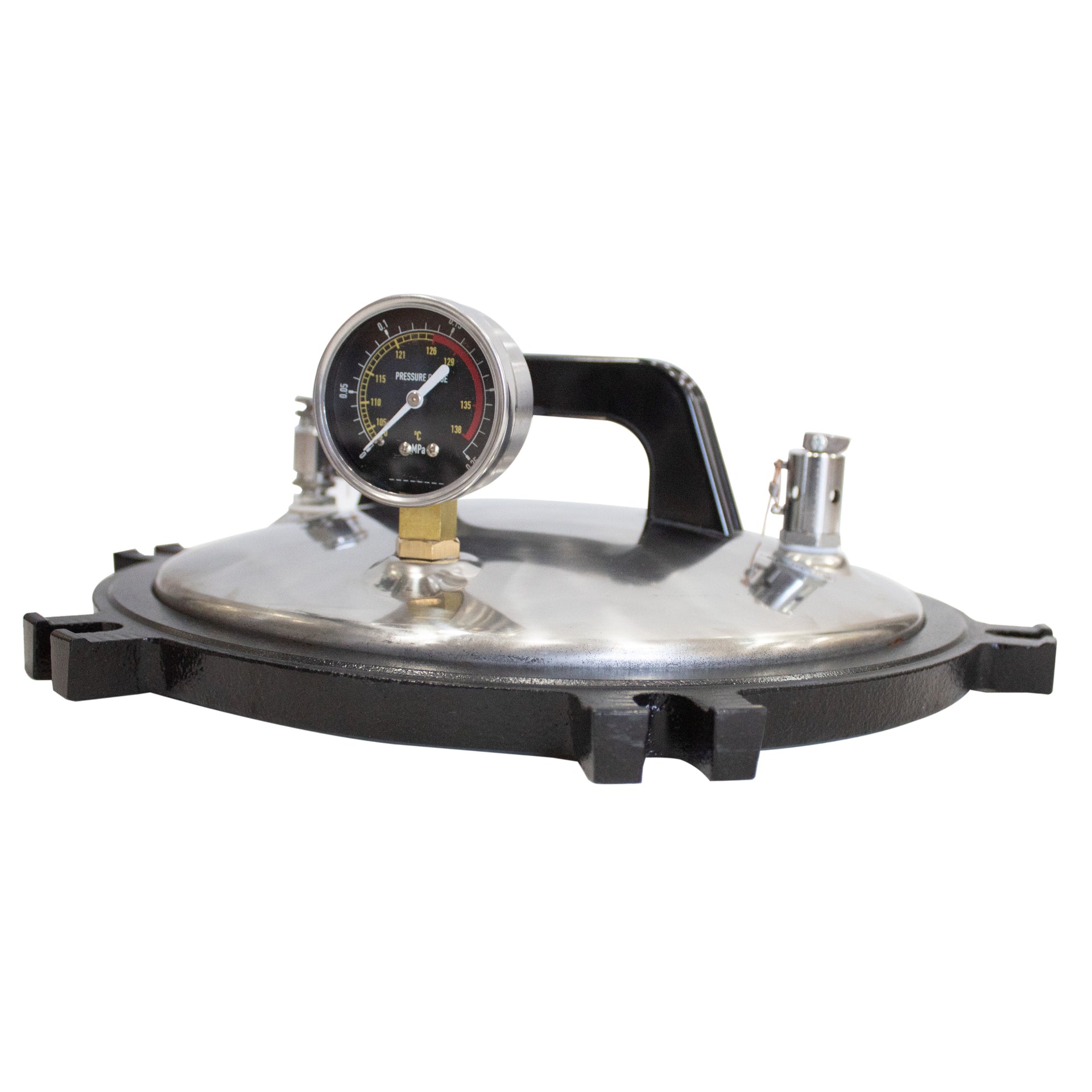

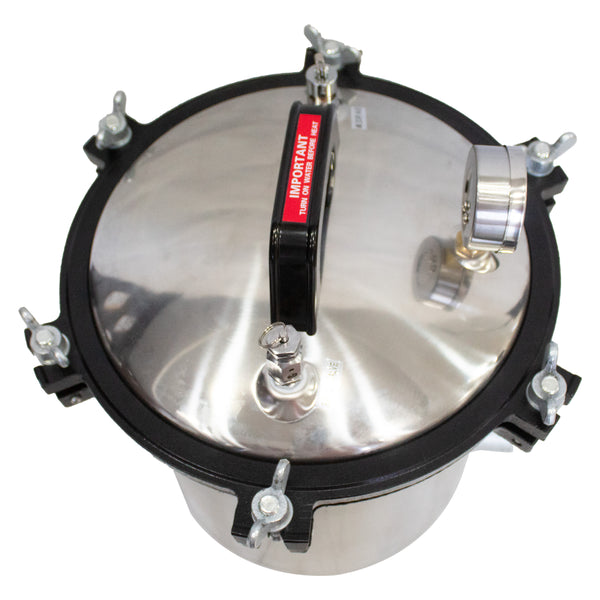

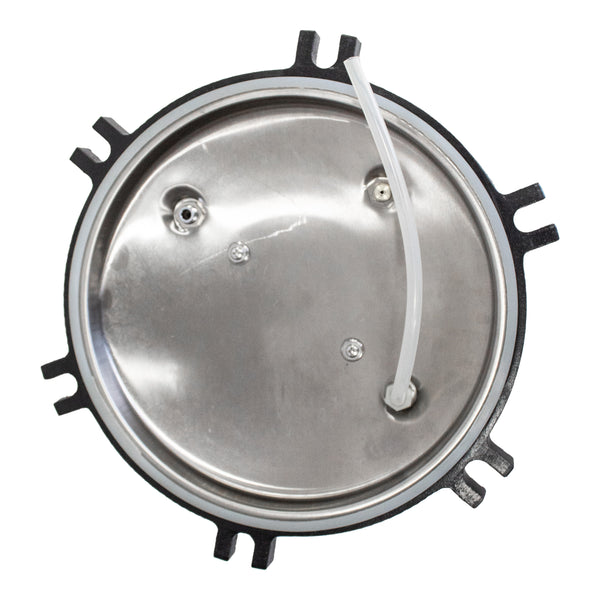

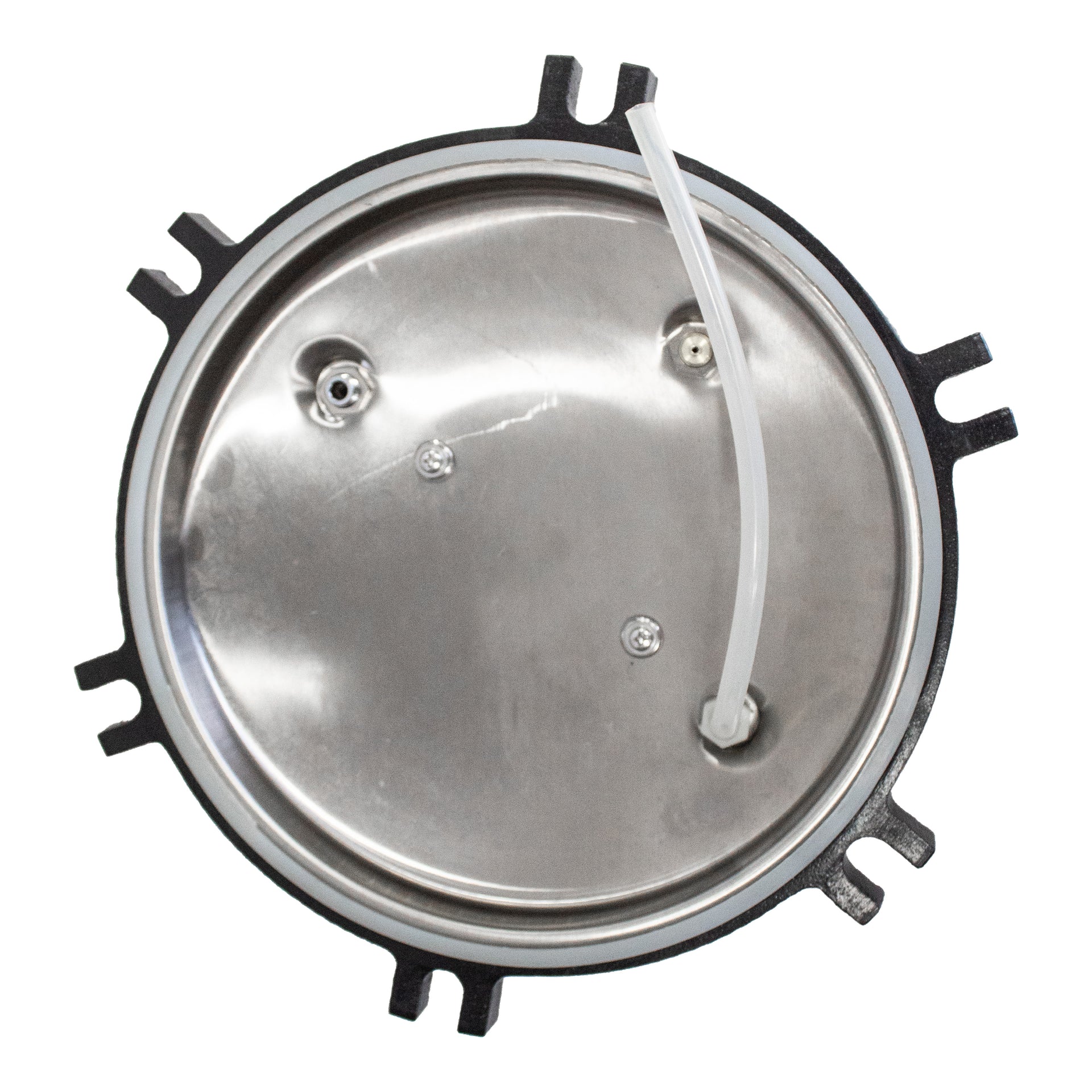

• Lid: Securely seals the sterilizer and includes safety features.
• Bolt, Wing Nut, Gasket: Ensure tight sealing and safety during operation.
• Container and Sterilizing Drum: Made of high-quality stainless steel (0Cr19Ni9) for durability.
• Sieve Plate: Supports the items being sterilized.

Design Features

• Material: Constructed from 0Cr19Ni9 stainless steel, offering superior resistance to alkali and acid. It has more than three times the tensile and compressive strength of aluminum alloy, ensuring safety and longevity.
• Heating Mechanism: Utilizes an immersed electro-thermal tube for rapid heating, consuming 50% less energy compared to traditional electric stoves.
• Safety Features:
  • Double Safety Function: The lid is equipped with a safety valve that automatically releases pressure when it exceeds 0.16 MPa.
  • Pressure and Temperature Monitoring: The pressure gauge includes a megabar and temperature reader for precise monitoring.

Advantages

• Portability: Lightweight and compact design allows for easy transport and use in various settings.
• Efficiency: Rapid sterilization process using saturated steam, ensuring effective sterilization.
• Multi-Purpose Use: Versatile enough for a wide range of sterilization needs across different industries.

Conclusion

The Portable Pressure Steam Sterilizer (18L) is an efficient and reliable solution for sterilizing various items in medical, industrial, and research settings. Its robust design, safety features, and energy efficiency make it an excellent choice for users needing a portable sterilization option.
