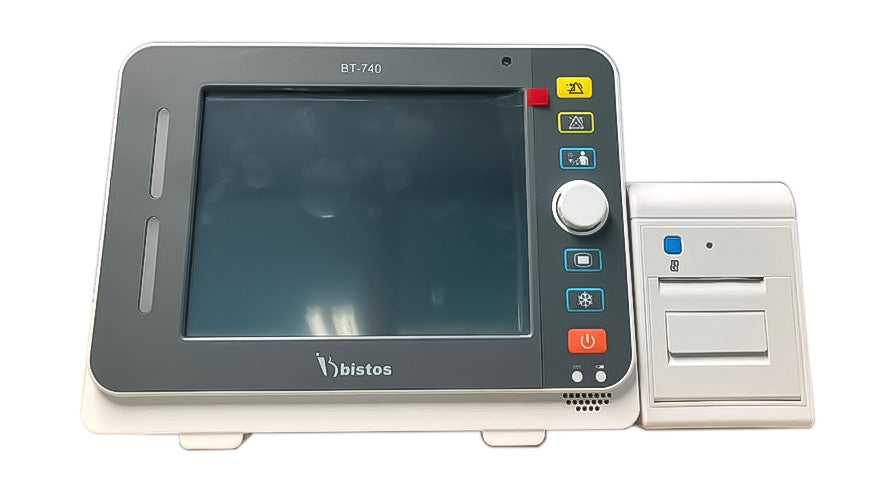

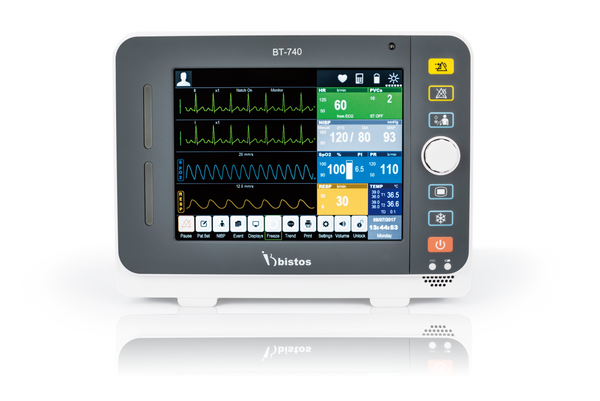

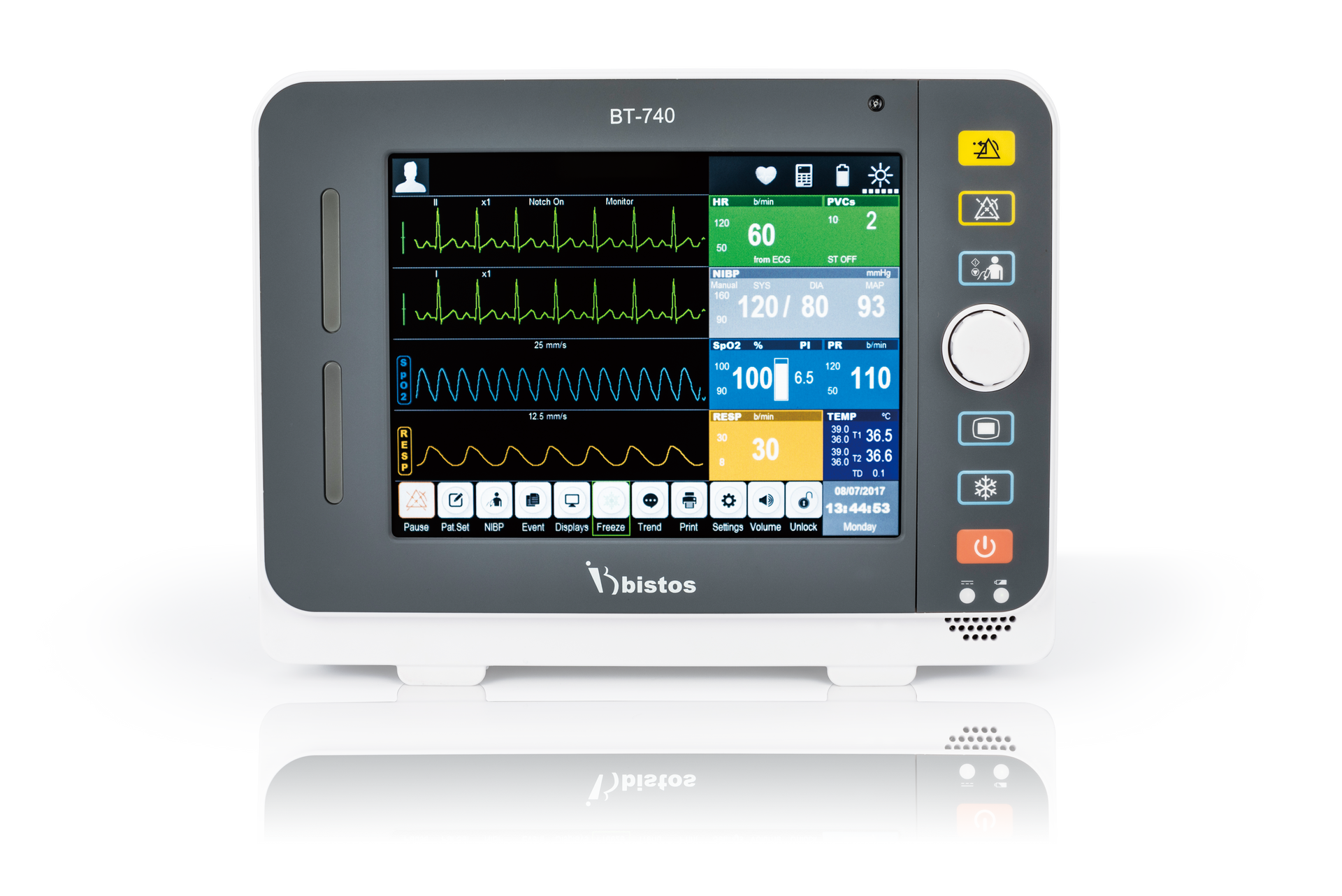

BT-740 Patient Monitor for Neonatal

The BT-740 is an 8.4" multi-parameter patient monitor specifically designed for neonatal care. It provides essential monitoring capabilities for vital signs, ensuring accurate and reliable data for healthcare professionals in various clinical settings.

Key Features

• Display: 8.4" Color Touch LCD
• Parameters Monitored:
  • ECG (Electrocardiogram)
  • Respiration Rate
  • SpO2 (Oxygen Saturation)
  • NIBP (Non-Invasive Blood Pressure)
  • Temperature
  • Optional: CO2, IBP (Invasive Blood Pressure), Multi-gas, Cardiac Output, Masimo SpO2
• Design: Fan-less design for quieter operation

Technical Specifications

Model

• Model Name: BT-740

Display

• Type: 8.4" Color Touch LCD

ECG Specifications

• Lead Type: 5 lead
• Gain Selection: x0.25, x0.5, x1, x2, x4, Auto
• Sweep Speed: 12.5, 25, 50 mm/s
• Bandwidth:
  • Diagnostic Mode: 0.5-130 Hz
  • Monitoring Mode: 0.5-40 Hz
  • Surgery Mode: 1-25 Hz
  • Strong Mode: 5-20 Hz
• Heart Rate Range:
  • Adult: 15-300 bpm
  • Pediatric/Neonate: 15-350 bpm

Respiration Specifications

• Method: Trans-thoracic Impedance
• Measurement Range: 0-120 rpm
• Sweep Speed: 6.25, 12.5, 25 mm/s

SpO2 Specifications

• Measurement Range: 0-100%
• Accuracy:
  • Adult/Pediatric: ±2% (70-100%)
  • Neonate: ±3%
  • (0-69%: Unspecified)
• Perfusion Index: 0.05-20%
• Pulse Rate Range: 25-250 bpm

NIBP Specifications

• Method: Automatic Oscillometric
• Operation Modes: Manual, Auto, STAT
• Parameters Monitored:
  • Systolic Range:
    • Adult: 40-270 mmHg
    • Pediatric: 40-200 mmHg
    • Neonate: 40-130 mmHg
  • Diastolic Range:
    • Adult: 10-210 mmHg
    • Pediatric: 10-160 mmHg
    • Neonate: 10-100 mmHg
  • Mean Range:
    • Adult: 20-230 mmHg
    • Pediatric: 20-175 mmHg
    • Neonate: 20-100 mmHg

Temperature Measurement

• Range: 0-50°C (41 to 122°F)
• Parameters: T1, T2, and TD

IBP Specifications

• Channel: 2 Channel / 4 Channel
• Range: -50 to 400 mmHg

Printer Specifications

• Type: Thermal dot array
• Print Speed: 12.5, 25, 50 mm/s
• Paper Size: 50 mm

CO2 Specifications

• Method: Masimo ISA / Bistos
• Multi-gas/O2 Method: Masimo ISA
• SpO2 Method: Masimo SpO2

Cardiac Output

• Method: Thermodilution
• Range: 0.2-20 L/min

Battery and Power Specifications

• Battery Type: Li-ion (4400 mAh)
• Run Time: Approximately 6 hours
• Charging Time: Approximately 4 hours

Connectivity

• PC Software Interface: RJ45, USB, Nursing call

Application Range

The BT-740 Patient Monitor for Neonatal is suitable for use in various clinical settings, including:

• Neonatal Intensive Care Units (NICU)
• Pediatric Wards
• Emergency Departments
• General Wards for neonatal patients
