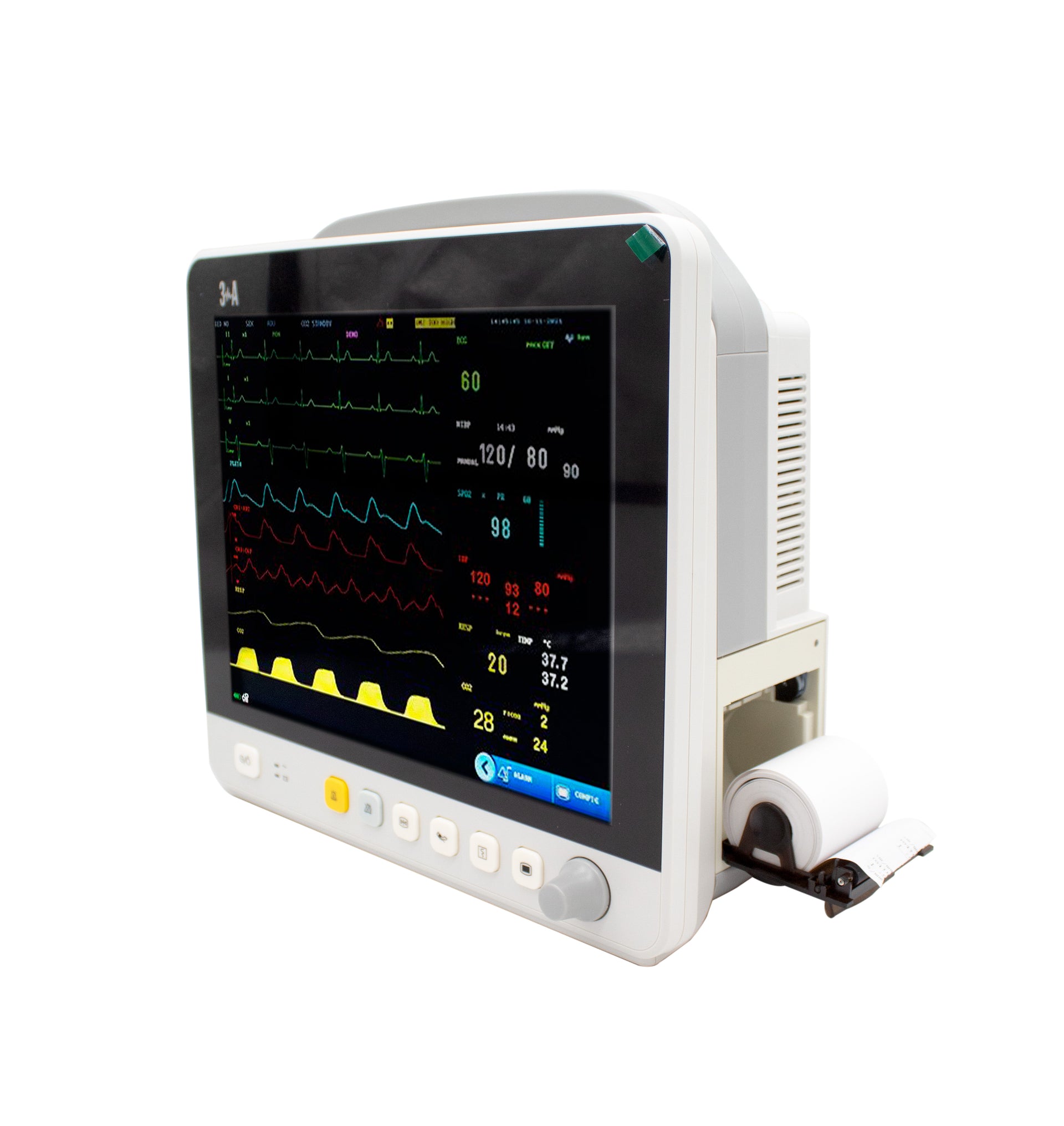

Patient Monitor (Multi-parameter 12inch Screen) With Printer

Description

• Type: Plug and play Patient Monitor for hospital use
• Trend Chart: 7-day trend chart in storage
• Application Range: Suitable for Adult, Pediatric, Neonatal, Medicine, Surgery, Operating Room, ICU, and CCU.
• (Please Note Without BBM)

Display

• Screen Size: 12.1 inch TFT screen

Parameters Monitored

• SpO2 (Oxygen Saturation)
• PR (Pulse Rate)
• NIBP (Non-Invasive Blood Pressure)
• ECG (Electrocardiogram)
• Resp (Respiration Rate)
• Temp (Temperature)
• etCO2 (End-Tidal CO2, optional)

Additional Features

• Built-in Printer: Comes with paper
• Language Options: English, Spanish, Portuguese, Polish, Russian, Turkish, French, and Italian

Measurement Specifications

Temperature

• Types: Rectal & Surface
• Measurement Range: 0-50°C
• Accuracy: ±0.1°C

NIBP

• Measurement Method: Oscillometer
• Systolic/Diastolic/Mean: Auto-calibrated
• Heart Rate Range: 15-30 bpm (select the larger data)
• Accuracy: ±1 bpm or ±2% (select the larger data)

ECG

• Input: 3/5 Wire ECG Cable
• Display Type: Waveform and Data
• Number of Channels: 2
• Lead Section: aVr, AVI, AVF
• Measurement Range: 0-100%
• Pulse Rate Range: 20-300 bpm
• Sweep Speed: 6.25, 12.5, 25, 50 mm/s
• Accuracy: ±1 bpm or ±2%

Respiration

• Measurement Type: Impedance & Nasal Tube
• Continuous Measurement
• Measurement Range: 0-150 pm
• Accuracy: ±1 bpm or ±1% (select the larger data)

Power Requirements

• AC Power: 100-240V, 50Hz/60Hz
• DC Power: Built-in rechargeable battery, 11.1V, 24 Wh Li-ion battery

Additional Specifications

• Gain Select: 0.25, 0.5, 1, 2, Auto
• Refresh Cycle: 15-25 seconds
• Resolution: 1 bpm for heart rate, 1 rpm for respiration
• Unit Selection: Celsius/Fahrenheit
