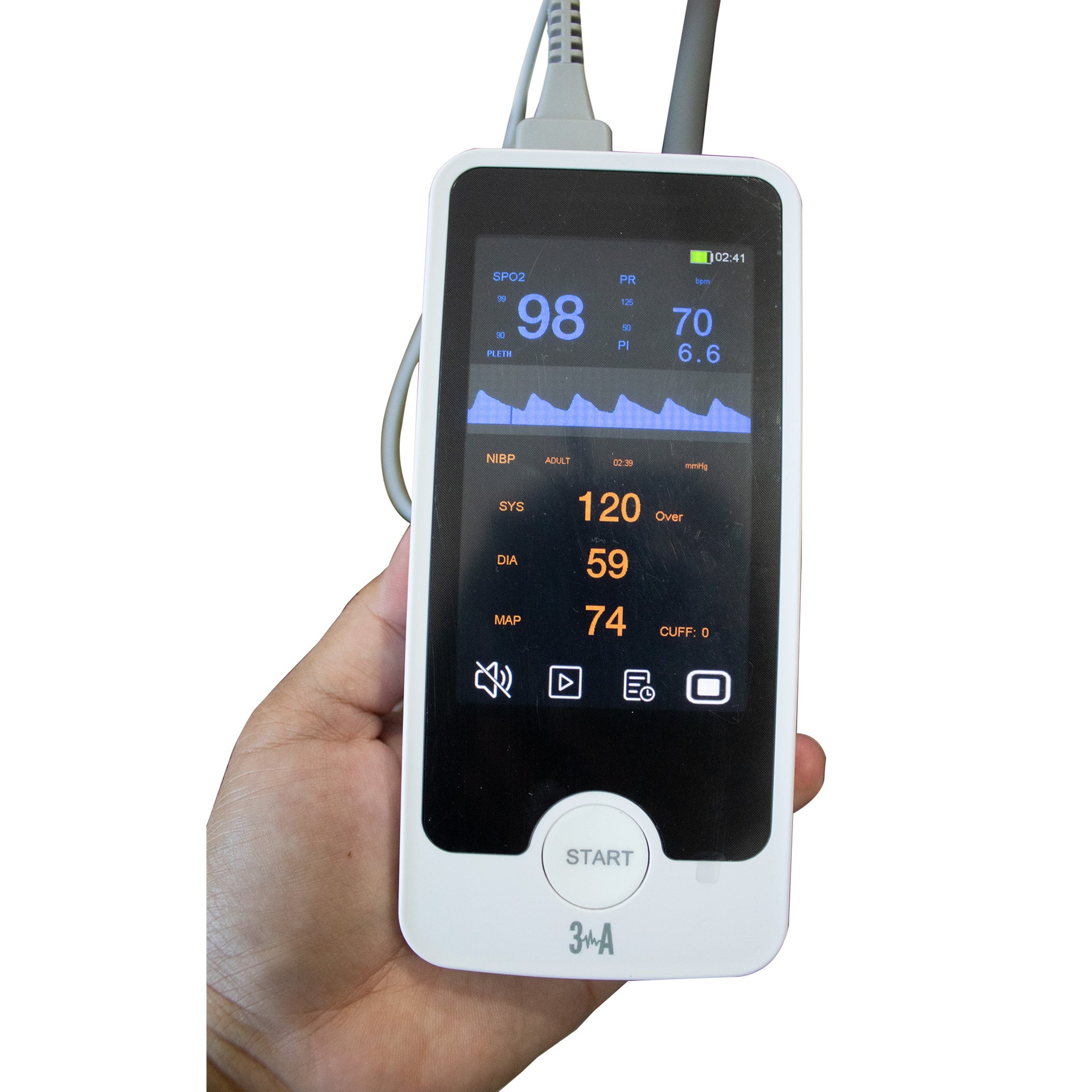

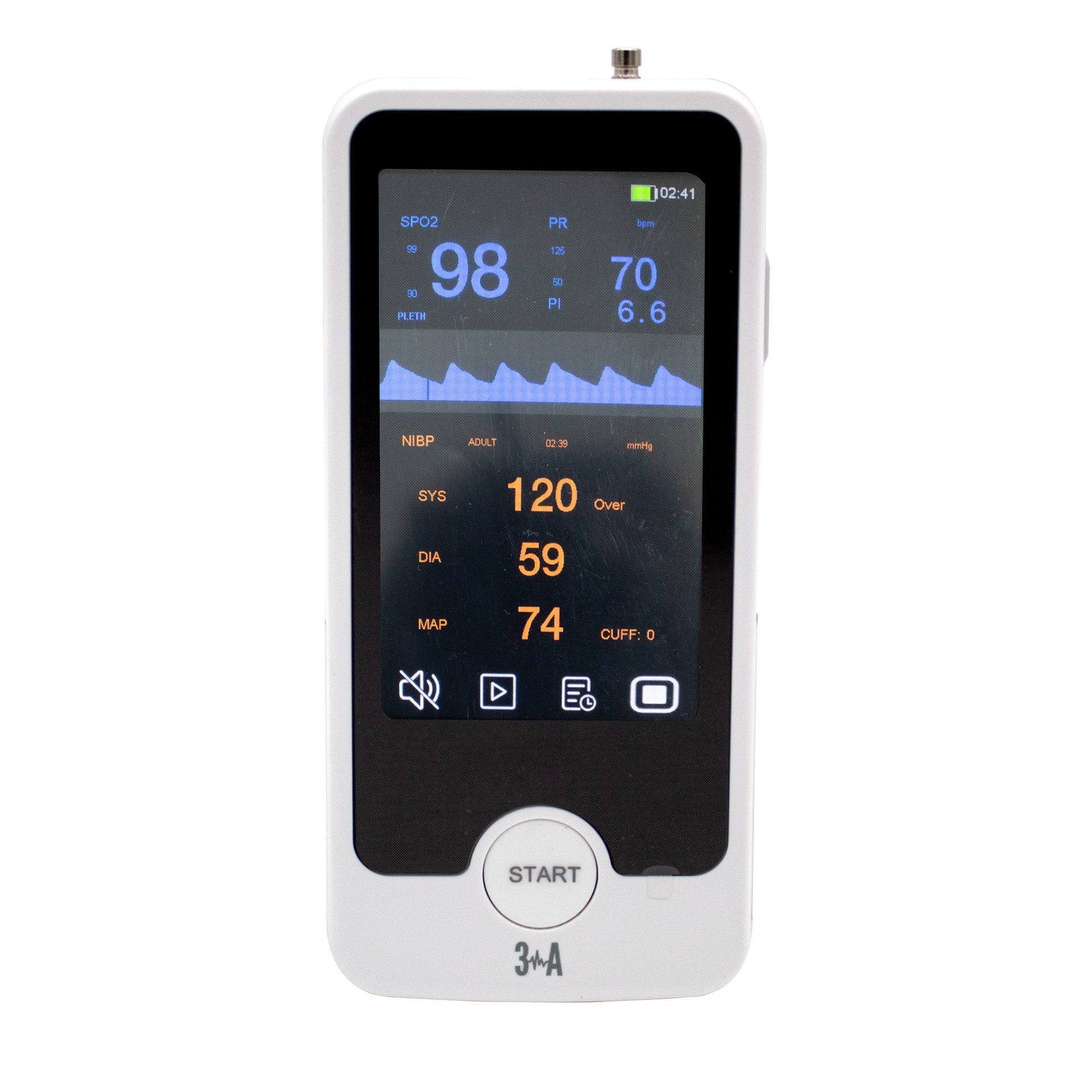

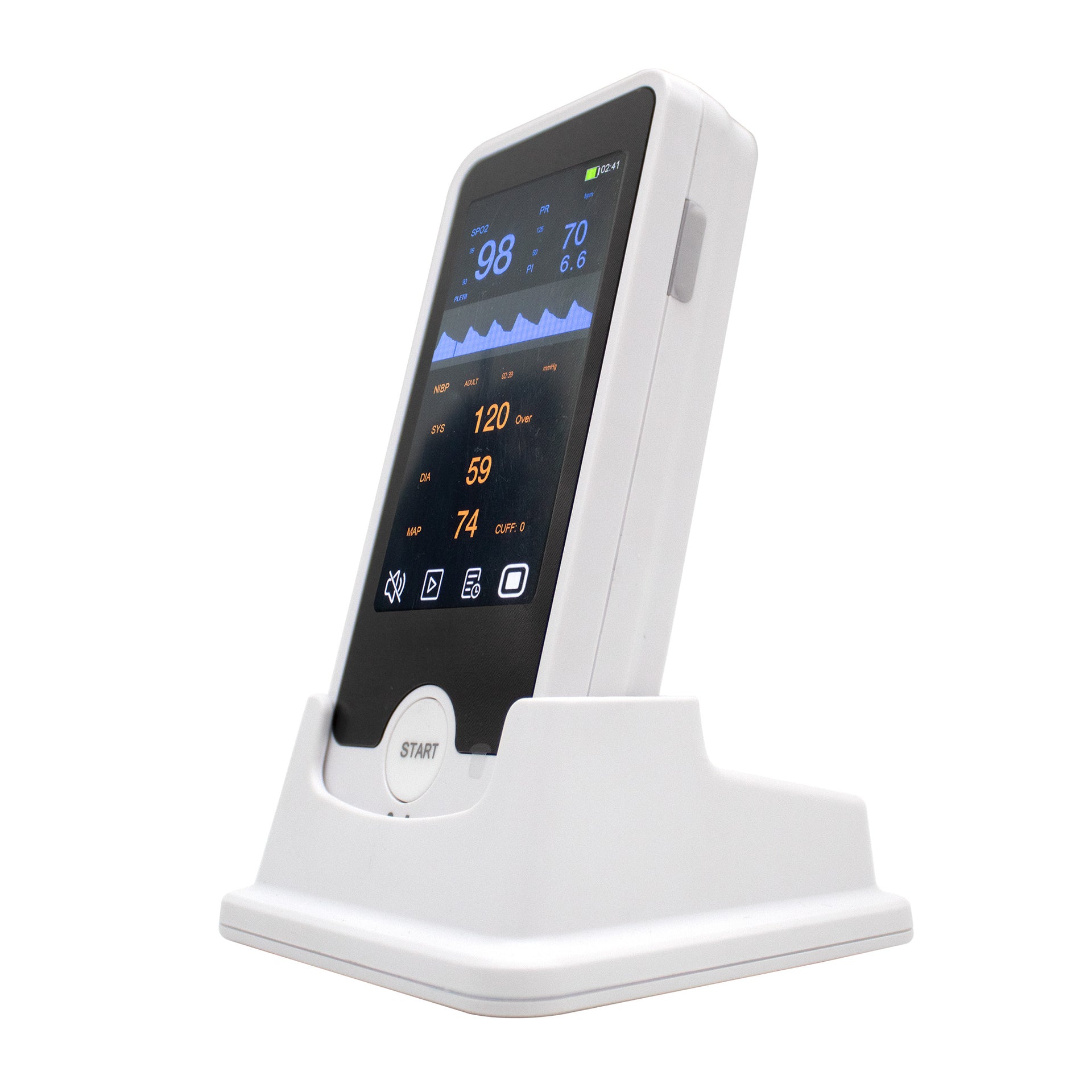

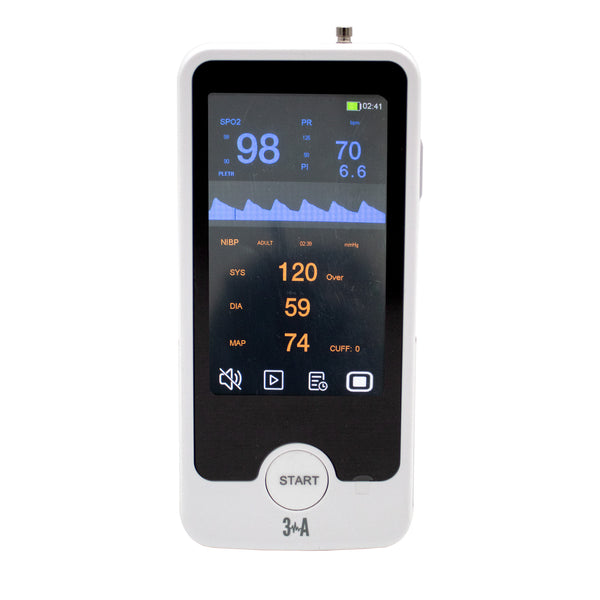

Vital Sign Monitor (Handheld)

The Handheld Vital Sign Monitor is a medical device designed to measure several critical parameters of a patient's health, including heart rate, pulse rate, blood pressure, and oxygen saturation. This portable version is ideal for use in various medical settings.

Features & Benefits

• Portability: Small and lightweight, making it easy to transport between patient rooms or remote locations.
• Multiple Parameter Measurement: Measures blood pressure, heart rate, respiratory rate, and oxygen saturation.
• Easy-to-Read Display: Designed for visibility in low light or high-stress environments.
• User-Friendly Interface: Intuitive controls with easy-to-follow instructions.
• Battery-Powered: Suitable for situations where a reliable power source is unavailable.
• High Accuracy: Enables quick and efficient gathering of important health data without separate devices or manual measurements.

Technical Specifications

Quality Standards and Classification

• Certifications: CE, ISO 13485
• SFDA Classification: Class II B
• Anti-Electroshock Degree: Equipment Class I (internal power supply)
• CO2/SpO2/NIBP Classification: BF

Physical Dimensions

• Host Size: 155 x 72.5 x 28.6 mm
• Package Size: 217 x 213 x 96 mm
• Weight: Approximately 773 g

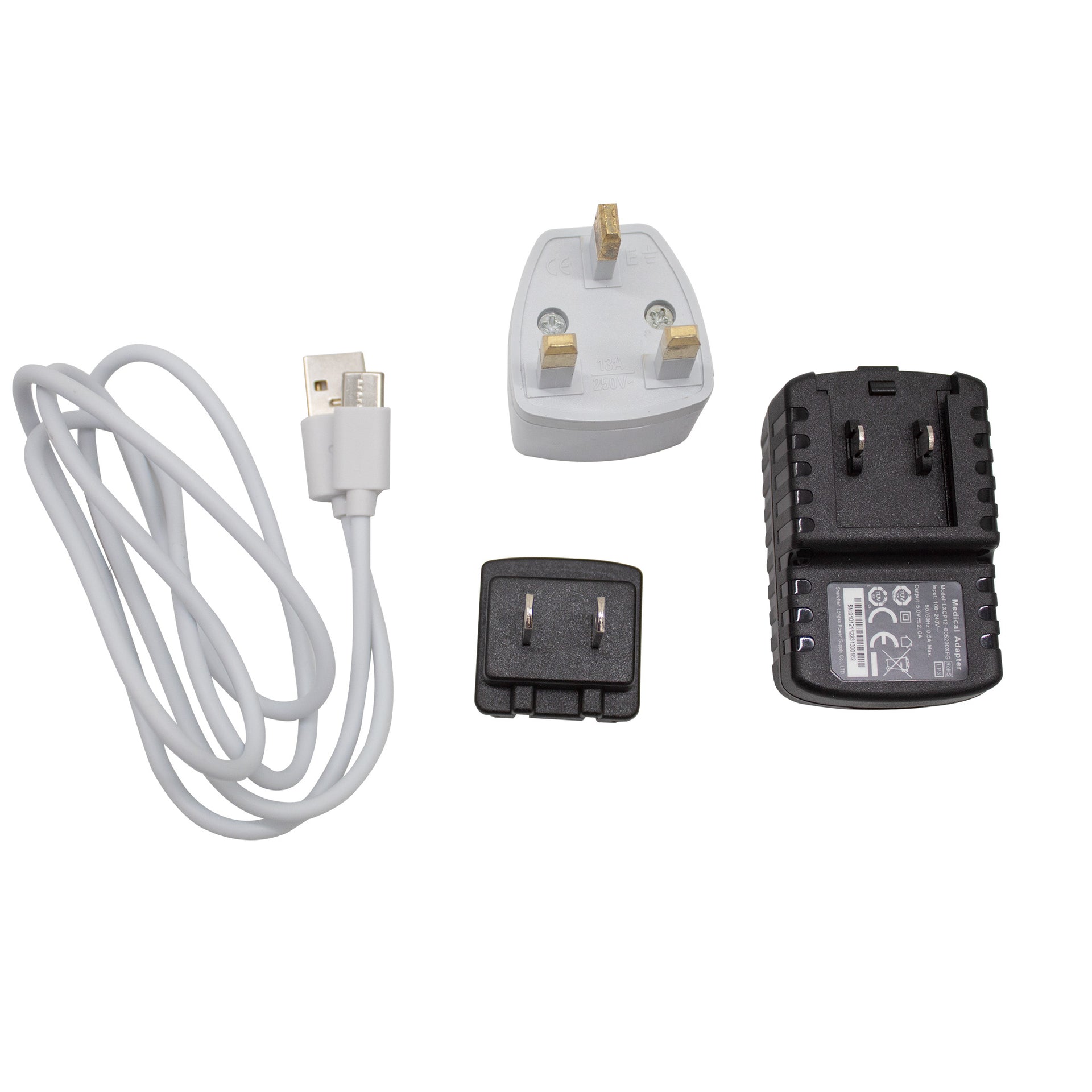

Power Requirements

• AC Power: 100 ~ 240V, 50Hz/60Hz
• DC Power: Built-in rechargeable battery
• Battery Specifications:
  • Voltage: 3.7V
  • Capacity: 2000mAh
  • Fully charged in about 5 hours (for single blood oxygen measurement)
  • Operates for 5 minutes after low battery alarm

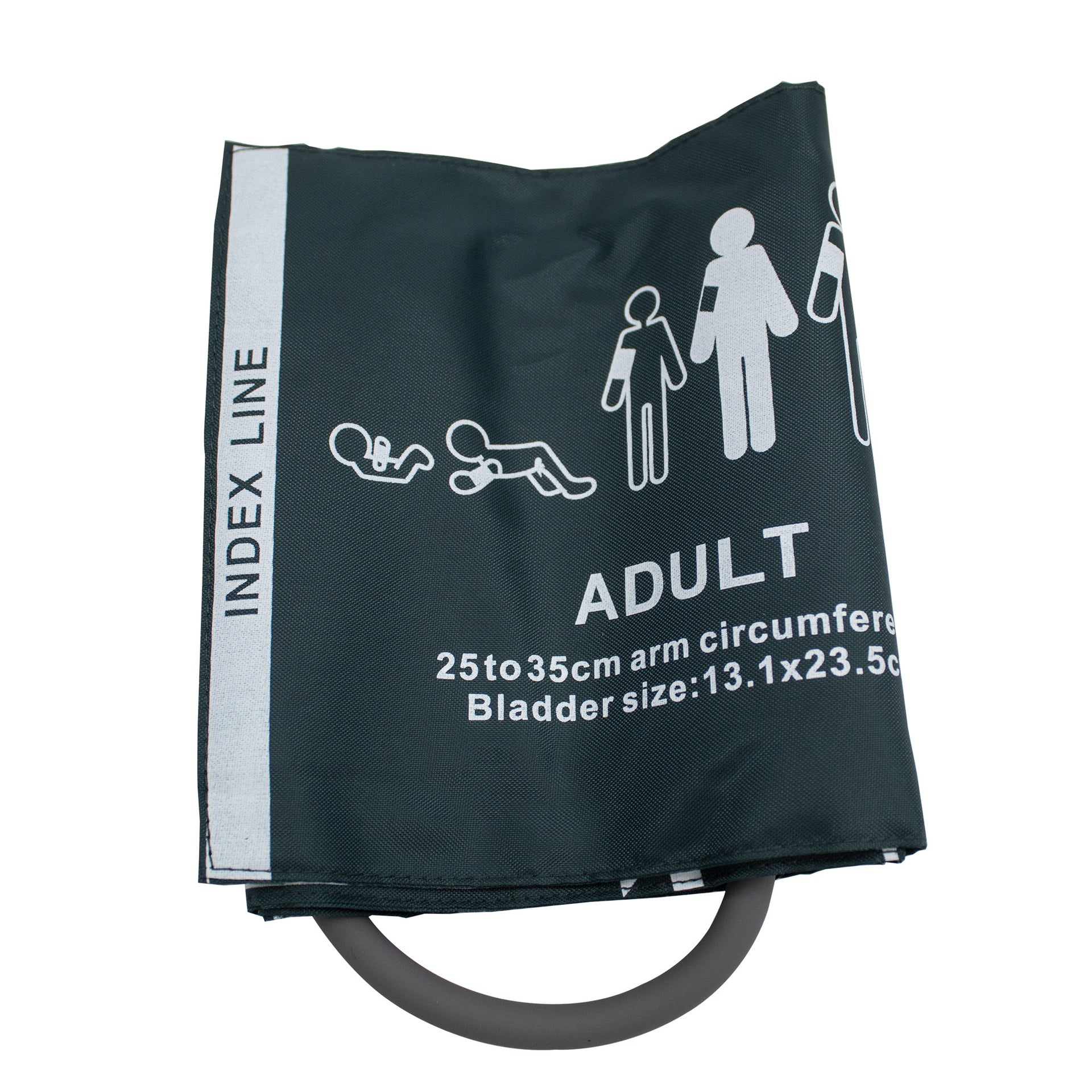

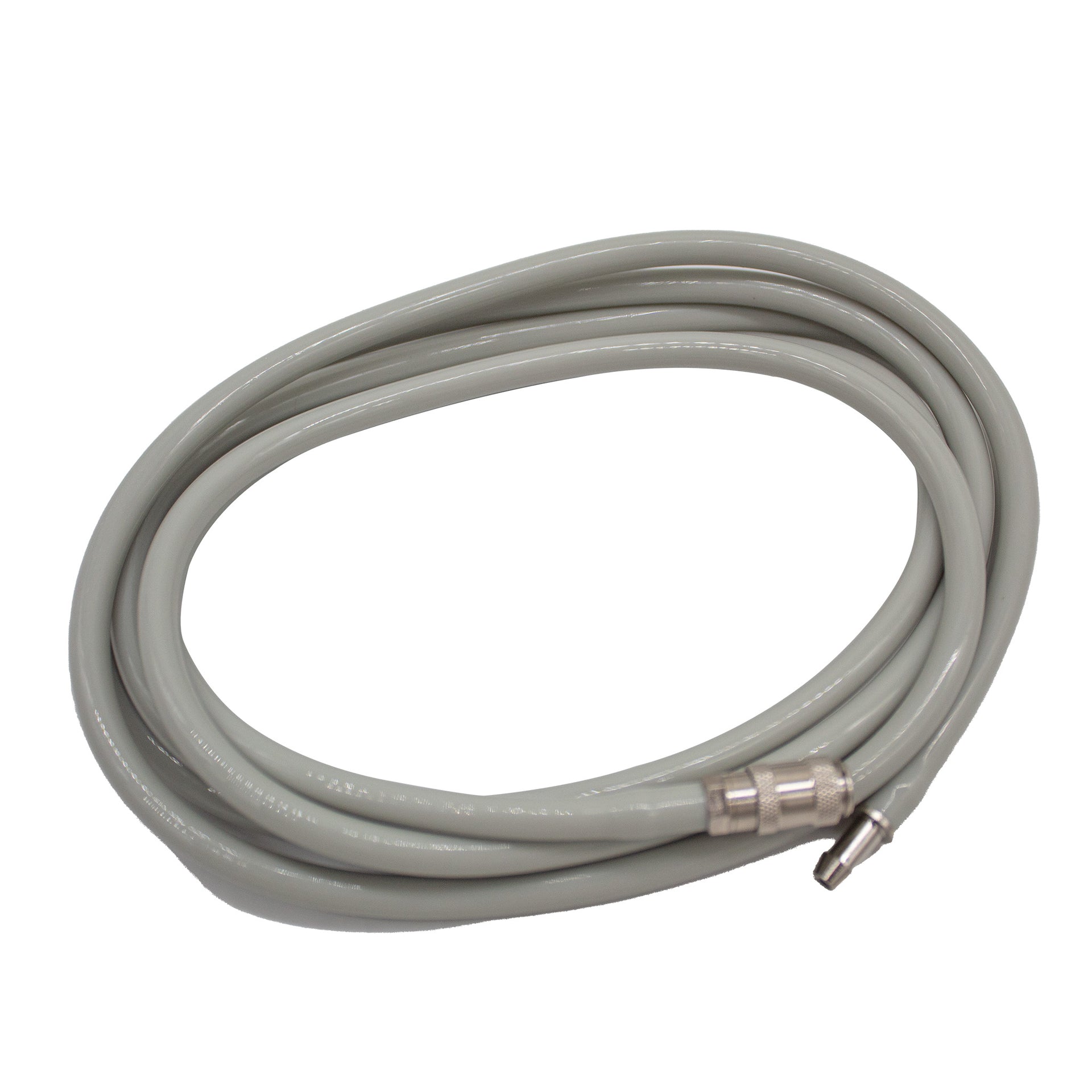

NIBP (Non-Invasive Blood Pressure)

• Measurement Method: Pulse wave oscillometry
• Work Modes: Manual, Auto, STAT
• Measure Interval in Auto Mode: 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120 minutes
• Measuring Time in STAT Mode: 5 minutes

Blood Pressure Measurement Ranges

• Adult:
  • Systolic: 40 ~ 270 mmHg
  • Diastolic: 10 ~ 215 mmHg
  • Mean: 20 ~ 235 mmHg
• Pediatric:
  • Systolic: 40 ~ 200 mmHg
  • Diastolic: 10 ~ 150 mmHg
  • Mean: 20 ~ 165 mmHg
• Static Pressure Range: 0 ~ 300 mmHg
• Pressure Precision:
  • Max. Average Error: ±5 mmHg
  • Max. Standard Deviation: ±8 mmHg

Overvoltage Protection

• Adult: 300 mmHg
• Pediatric: 240 mmHg

Application Range

• Suitable for Adult, Pediatric, Neonatal, Medicine, Surgery, Operating Room, ICU, CCU, and Transfer.
• Neonate Measurement Range: 10-100 mmHg
• Overpressure Protection: Double safety protection
• Resolution: 1 mmHg

Pulse Rate

• Range: 30 ~ 240 bpm
• Resolution: 1 bpm
• Precision: ±3 bpm

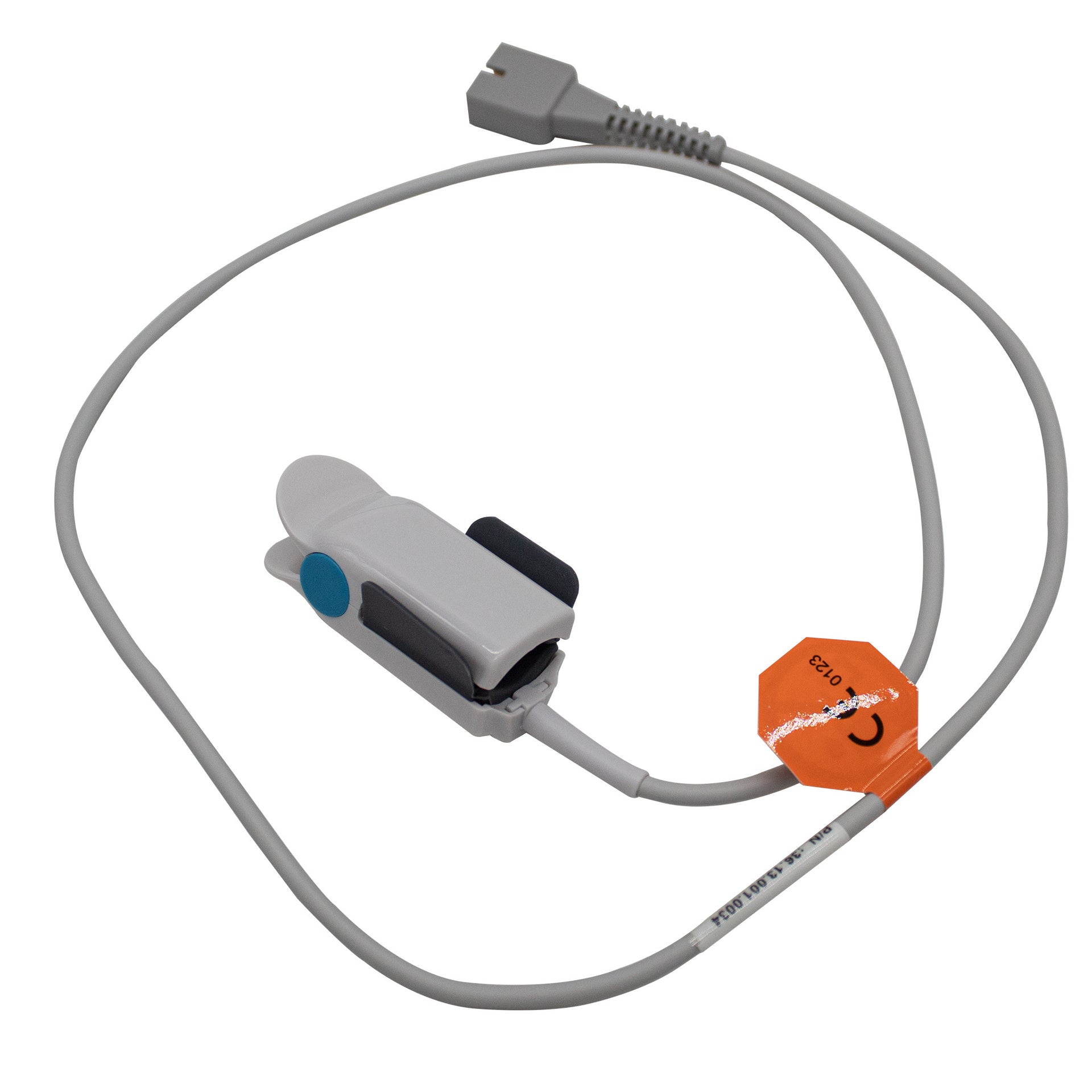

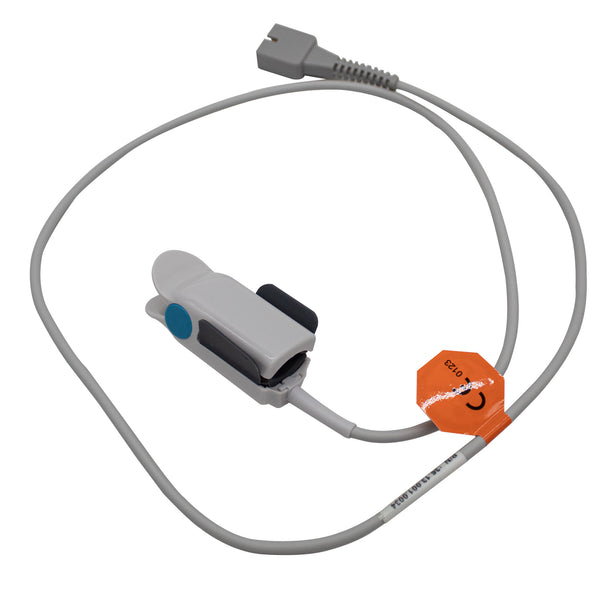

SpO2 (Oxygen Saturation)

• Range: 0 ~ 100%
• Resolution: 1%
• Precision:
  • 80% ~ 100%: ±2%
  • 70% ~ 80%: ±3%
  • 0% ~ 69%: No definition given

CO2 Measurement

• Type: Side stream
• Warm-Up Time:
  • At 25°C, the carbon dioxide curve (capnogram) can display within 20/15 seconds; all specifications fulfilled within 2 minutes.
• Measurement Range: 0-150 mmHg, 0-19.7%, 0-20 kPa (at 760 mmHg)
• Resolution:
  • 0.1 mmHg for 0-69 mmHg
  • 0.25 mmHg for 70-150 mmHg
• Precision:
  • 0-40 mmHg: ±2 mmHg
  • 41-70 mmHg: ±5% (reading)
  • 71-100 mmHg: ±8% (reading)
  • 101-150 mmHg: ±10% (reading)

Respiratory Rate

• Range: 0-150 BPM
• Accuracy: ±1 BPM
