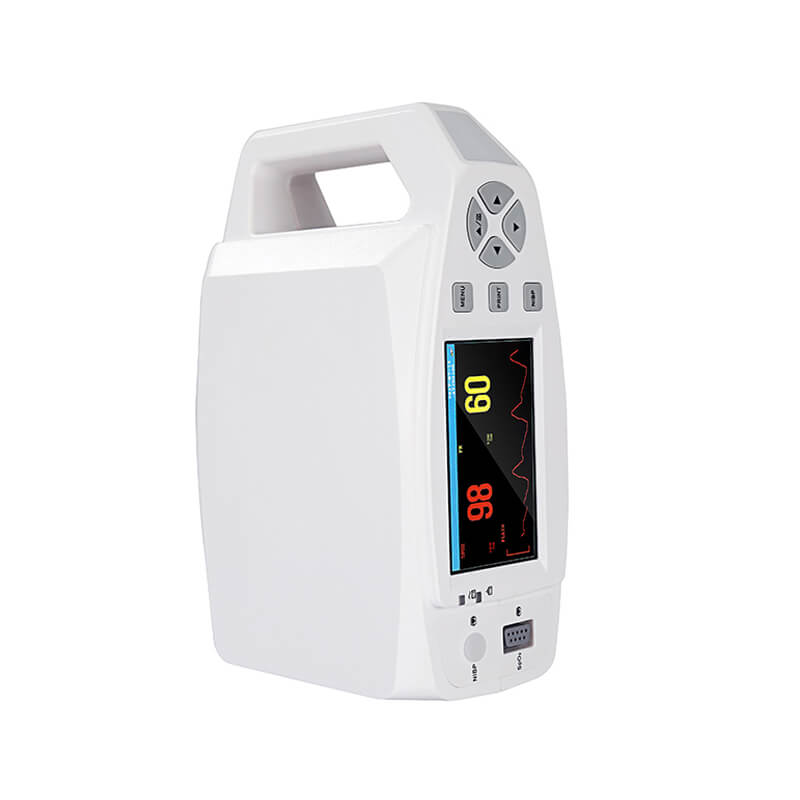

Vital Sign Monitor (Handheld) New

Display

• Type: 4.3 inch TFT screen

Parameters Monitored

• SpO2 (Oxygen Saturation)
• PR (Pulse Rate)
• Optional Parameters:
  • NIBP (Non-Invasive Blood Pressure)
  • Neck/Peripheral SpO2
  • Trolley
  • Wall Mount

Power Requirements

• AC Power: 100 ~ 240V, 50Hz/60Hz
• DC Power: Built-in rechargeable 11.1V, 24 Wh lithium battery

Technical Specifications

Quality Standards and Classification

• Model: PV-L810

Application Range

• Suitable for use in:
  • Operating rooms
  • Operative/anesthetic recovery
  • Emergency rooms for adults, children, and neonatal patients

NIBP Specifications

• Static Pressure Range: 0-300 mmHg
• Static Pressure Precision: ±3 mmHg
• Pressure Precision:
  • Max Average Error: ±5 mmHg
  • Max Standard Deviation: ±8 mmHg

SpO2 Specifications

• Measurement Range: 0-100%
• Accuracy:
  • 70-100%: ±2% (12-digit display)
  • 0-69%: No definition given
• Resolution: 1%

Blood Pressure Measurement

• Measurement Range: 0-99 mmHg
• Accuracy:
  • 0-40 mmHg: ±2 mmHg
  • 41-76 mmHg: ±5%
  • 77-99 mmHg: ±10%
• Resolution: 1 mmHg

Package Includes

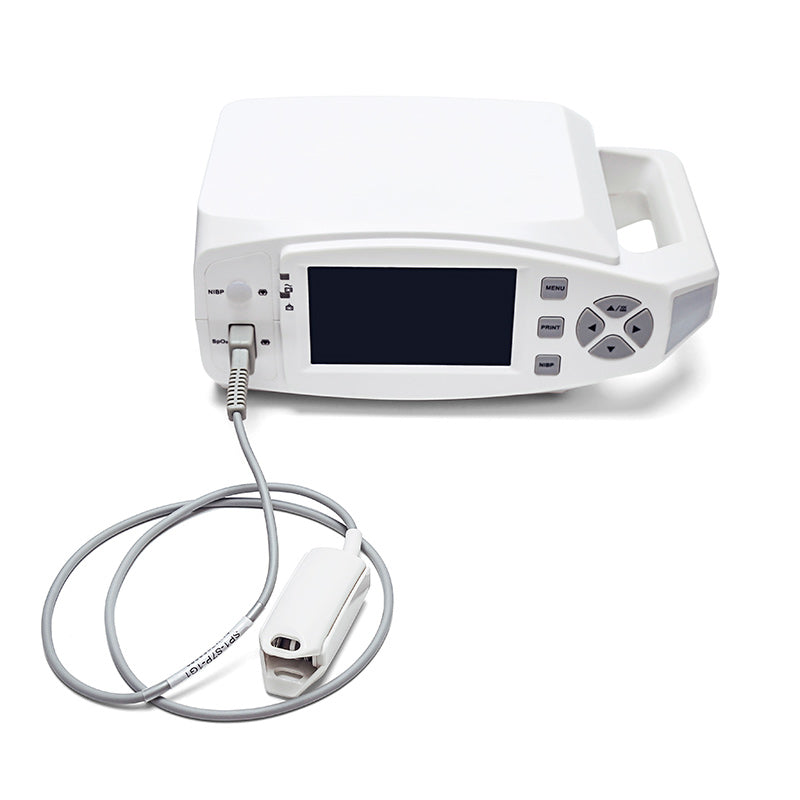

• 1 pc Desktop Oximeter (Model YK-810)
• 1 pc Instruction Manual

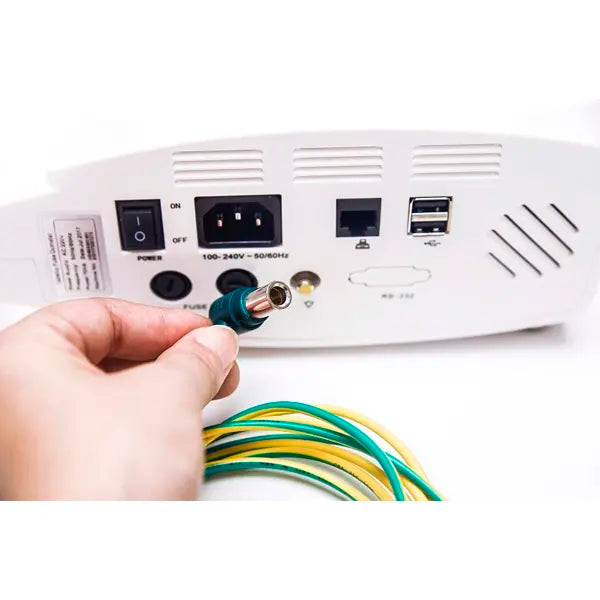

• 1 pc Power Line and Ground Electrode
• 1 pc Blood Oxygen Probe
• 1 pc Cuff (Nasal Tube, Sampling Tube - optional)

Features

1. Display: 4.3 inch high-resolution color TFT LCD screen supporting a multi-language system.
2. Compact Design: Portable for uninterrupted monitoring.
3. Power Supply: AC power supply with a built-in lithium battery.
4. Alarms: Auto double alarm with audible and visible signals.
5. Data Storage: Up to 36 hours of patient trend data storage for easy recall.
6. Optional Printing: Printing output function triggered by alarms.
7. Multi-Parameter Measurement: Supports SpO2, PR, NIBP, and ETCO2.
8. Alarm Functionality: 3-level audio/visual alarm function.
9. Weak Pulse Detection: Supports manual, automatic, and continuous NIBP measurement modes.
10. Automatic Data Storage: Supports nearly 96 hours of historical monitoring data query.
11. Emergency Power: Built-in high-capacity lithium battery (2000 mAh) provides 4 hours of power for emergency situations or patient transfer.

Dimensions and Weight

• Dimensions: 255 mm x 152 mm x 100 mm
• Weight: 1.5 kg

Environmental Conditions

• Operating Temperature: 0°C - 40°C
• Transportation and Storage Temperature: -20°C - 60°C
• Ambient Humidity: 85%
• Transportation and Storage Humidity: 593%
• Atmospheric Pressure: 86 kPa - 106 kPa
