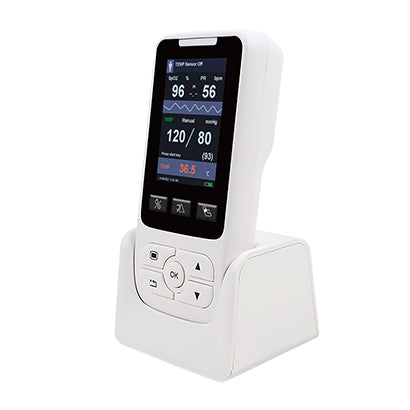

VSM-09A Handheld Monitor

Key Features:

• Ergonomic design for point-of-care use
• Suitable for adult, pediatric, and neonatal patients
• High-resolution 3.5" color LCD display
• Measures SpO2, Pulse Rate, Temperature, and NIBP
• Up to 15 hours of battery life with rechargeable lithium-ion battery

Technical Specifications:

SpO2:

• Accuracy: 70% to 100% ±2%, unspecified 0% to 69%
• Range: 0-100%
• Alarm Range: Same as display range, alarm limit setup length is 1%

Pulse Rate:

• Range: 20 bpm - 254 bpm
• Accuracy: ±1 bpm
• Alarm Range: Same as display range, alarm limit setup length is 1 bpm
• Refreshing Rate: Approx. 1 second

Temperature:

• Accuracy: ±0.2°C (0°C to 50°C)
• Range: 0.0°C to 50.0°C
• Alarm Range: Upper Limit 0.1°C to 50.0°C, Lower Limit 0.0°C to 49.9°C
• Unit: °C or °F
• Alarm Delay Time: <10%

NIBP:

• Measurement Method: Oscillometric
• Measured Parameters: SBP, DBP, MAP
• Unit: mmHg or kPa
• Operating Mode: Manual, Automatic, Continuous
• SBP Range: Adult (30 mmHg - 270 mmHg), Child (30 mmHg - 230 mmHg)
• DBP Range: Adult (10 mmHg - 220 mmHg), Child (10 mmHg - 165 mmHg)
• MAP Range: Adult (10 mmHg - 240 mmHg), Child (10 mmHg - 175 mmHg)
• Accuracy: ±5 mmHg or ±2%, whichever is greater
• Cuff Pressure Range: 0 mmHg - 300 mmHg
• Cuff Inflation Speed: 550 mmHg/s
• Static Pressure Measurement Error: ±3 mmHg (not up to over pressure protection)
• Display Resolution: 1 mmHg

Other Specifications:

• Dimensions: 175 mm (H) x 85 mm (W) x 32 mm (D)
• Weight: 280 g (SpO2 version), 370 g (SpO2 + NIBP + TEMP version)
• Power Input: 100-240 VAC, 0.4A, 50/60 Hz ±10%
• Battery: Rechargeable lithium-ion, 3.7V/4000mAh
• Battery Life: Up to 15 hours (brand new, fully charged)
• Charging Time: Approx. 8 hours
• Display: 3.5" LCD, 480 x 320 pixels
• Buttons: 3 shortcut keys, 5 function keys
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 15% to 80% non-condensing
• Patient Range: Neonatal, Pediatric, Adult
